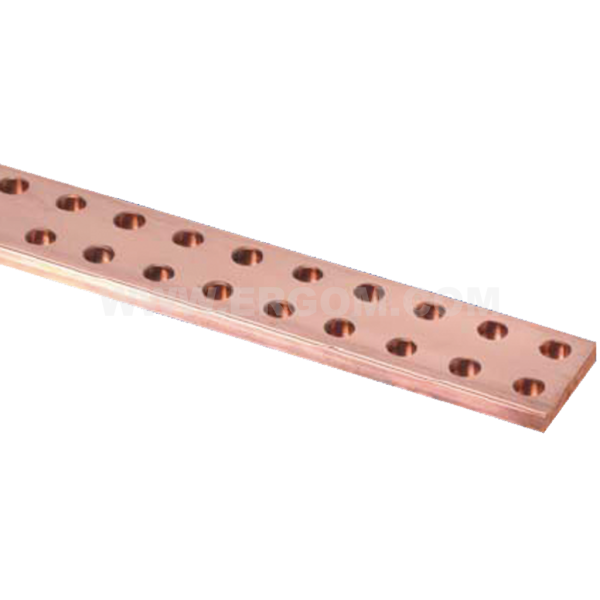

Pre-punched busbars, PMO type

Pre-punched busbars, PMO type

Main data of the product series

Product name: Pre-punched busbars, PMO type
Category: Flat busbars
Material: copper M1E (Cu-ETP / E-Cu58) with high electrical conductivity
Note!: On request, we can provide tin plated busbars.

Features and benefits

Product description

-

Offer

Name	Ergom index / your designation	Min. order quantity [uom]	Qty in package	Unit of measure [uom]	Catalogue price net per uom	Quantity [uom]
PMO 60X10/1,75	R32RZ-01020001201	1	1	pcs.	Price on request
PMO 80X10/1,75	R32RZ-01020001301	1	1	pcs.	Price on request

Selected lines: 0

Technical data

General data

Material	copper M1E (Cu-ETP / E-Cu58) with high electrical conductivity
B	10
D	25

Name	Cross-section [mm²]	A	E
PMO 60X10/1,75	600	60	35
PMO 80X10/1,75	800	80	55

Guide

No data

Knowledge

No data

Downloads

Type	Name	Language	Updated at	Size	File type
Catalog card	ERGOM_Szyny_otworowane_typ_PMO_EN.pdf	EN	04-07-2025	153.62 KB	PDF	Download
Catalog card	ERGOM_Szyny_otworowane_typ_PMO_PL.pdf	PL	04-07-2025	201.91 KB	PDF	Download
