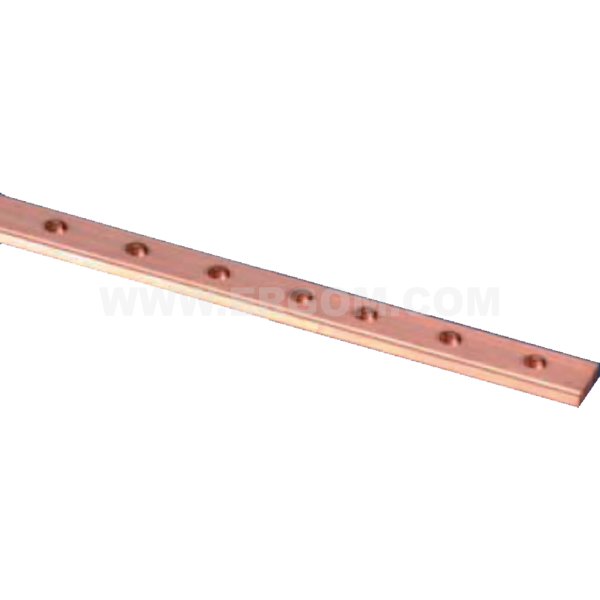

Pre-punched busbars, PMG type

Pre-punched busbars, PMG type

Main data of the product series

Product name
Pre-punched busbars, PMG type
Category
Flat busbars
Material
copper M1E (Cu-ETP / E-Cu58) with high electrical conductivity
Note!
On request, we can provide tin plated busbars.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
PMG 12X4/2 R32RZ-01020000101 1 1 pcs. Price on request
PMG 15X4/2 R32RZ-01020000201 1 1 pcs. Price on request
PMG 20X5/2 R32RZ-01020000601 1 1 pcs. Price on request
PMG 25X5/2 R32RZ-01020000701 1 1 pcs. Price on request
PMG 30X5/2 R32RZ-01020000801 1 1 pcs. Price on request
PMG 50X5/2 R32RZ-01020000901 1 1 pcs. Price on request

Selected lines: 0

Technical data

General data

Material copper M1E (Cu-ETP / E-Cu58) with high electrical conductivity
Name Cross-section [mm²] A B D Ø M
PMG 12X4/2 48 12 4 18 M5
PMG 15X4/2 75 15 4 20 M6
PMG 20X5/2 100 20 5 20 M6
PMG 25X5/2 125 25 5 20 M6
PMG 30X5/2 150 30 5 25 M6
PMG 50X5/2 250 50 5 25 M8

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Szyny_otworowane_typ_PMG_EN.pdf EN 04-07-2025 147.94 KB PDF Download
Catalog card ERGOM_Szyny_otworowane_typ_PMG_PL.pdf PL 04-07-2025 196.44 KB PDF Download
