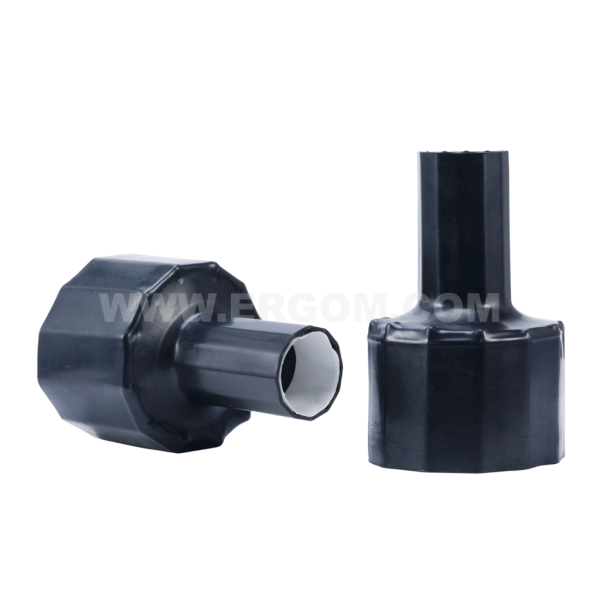

Pre-insulated pipe sealing cap, TKRK type

Pre-insulated pipe sealing cap, TKRK type

Main data of the product series

Product name
Pre-insulated pipe sealing cap, TKRK type
Category
Heat-shrink materials
Operating temperature [°C]
-40 ÷ +100
Recommended shrinking temperature [°C]
100 ÷ 125
Material
cross-linked polyolefin
Shrinkage factor
2:1

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
TKRK-1 E05ME-01050200101 1 1 pcs. Price on request
TKRK-2 E05ME-01050200201 1 1 pcs. Price on request
TKRK-3 E05ME-01050200301 1 1 pcs. Price on request
TKRK-4 E05ME-01050200401 1 1 pcs. Price on request
TKRK-5 E05ME-01050200501 1 1 pcs. Price on request
TKRK-6 E05ME-01050200601 1 1 pcs. Price on request
TKRK-7 E05ME-01050200701 1 1 pcs. Price on request

Selected lines: 0

Technical data

General data

Breakdown strength [kV/mm] >12
Material cross-linked polyolefin
Halogen-free yes
UV Resistance yes
Recommended shrinking temperature [°C] 100 ÷ 125
Operating temperature [°C] -40 ÷ +100
Shrinkage factor 2:1
Colour black
Name Size Inside diameter on delivery D1min [mm] Inside diameter in full shrinkage d1max [mm] Inside diameter on delivery D2min [mm] Inside diameter in full shrinkage d2max [mm] Length in delivery L1 [mm] Length in delivery L2 [mm] Wall thickness on full shrinkage - s [mm]
TKRK-1 62/46 62 30 46 10 70 60 3,2
TKRK-2 90/42 90 60 42 24 90 88 3,3
TKRK-3 105/45 105 61 45 24 89 85 3,3
TKRK-4 125/65 125 61 65 24 80 78 3,3
TKRK-5 140/76 140 60 76 24 78 72 3,3
TKRK-6 158/70 150 75 66 24 62 25 2,3
TKRK-7 185/105 185 90 105 30 80 32 2,4

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Termokurczliwe_ksztaltki_redukcyjne_z_klejem_typu_TKRK_EN.pdf EN 14-05-2025 186.97 KB PDF Download
Catalog card ERGOM_Termokurczliwe_ksztaltki_redukcyjne_z_klejem_typu_TKRK_PL.pdf PL 14-05-2025 207.77 KB PDF Download
