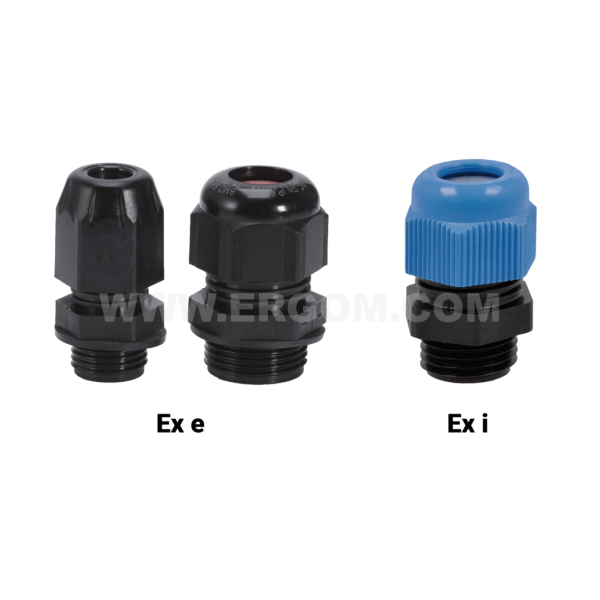

Polyamide glands, EDW...HM type

Main data of the product series

Product name: Polyamide glands, EDW...HM type
Category: Cable glands for explosive atmosphere
Material: PA 6 polyamide; seal: outer part - CR/NBR rubber; inner part - TPE thermoplastic (from M20x1.5); hole plug: PE-LD polyethylene
Operating temperature [°C]: -20 ÷ +70 (M12 i M16) -30 ÷ +70 (M20 do M63)
IP degree of protection: IP68
Note!: The gland with cap installed does not ensure the described properties. EN Nuts have to be ordered separately.

Name	Ergom index / your designation	Min. order quantity [uom]	Qty in package	Unit of measure [uom]	Catalogue price net per uom
EDW 12 HM BK	E03DK-06011200101	10	10	pcs.	Price on request
EDW 16 HM BK	E03DK-06011200201	10	10	pcs.	Price on request
EDW 20 HM BK	E03DK-06011200301	10	10	pcs.	Price on request
EDW 25 HM BK	E03DK-06011200403	10	10	pcs.	Price on request
EDW 32 HM BK	E03DK-06011200503	10	10	pcs.	Price on request
EDW 40 HM BK	E03DK-06011200603	10	10	pcs.	Price on request
EDW 50 HM BK	E03DK-06011200701	1	1	pcs.	Price on request
EDW 63 HM BK	E03DK-06011200801	1	1	pcs.	Price on request
EDW 12 HM BL	E03DK-06011400101	10	10	pcs.	Price on request
EDW 16 HM BL	E03DK-06011400201	10	10	pcs.	Price on request
EDW 20 HM BL	E03DK-06011400301	10	10	pcs.	Price on request
EDW 25 HM BL	E03DK-06011400403	10	10	pcs.	Price on request
EDW 32 HM BL	E03DK-06011400503	10	10	pcs.	Price on request
EDW 40 HM BL	E03DK-06011400603	10	10	pcs.	Price on request
EDW 50 HM BL	E03DK-06011400701	1	1	pcs.	Price on request
EDW 63 HM BL	E03DK-06011400801	1	1	pcs.	Price on request

Selected lines: 0

Material	PA 6 polyamide; seal: outer part - CR/NBR rubber; inner part - TPE thermoplastic (from M20x1.5); hole plug: PE-LD polyethylene
Operating temperature [°C]	-20 ÷ +70 (M12 i M16) -30 ÷ +70 (M20 do M63)
Stopień ochrony	IP68
Wykonanie	Ex II 2 G; Ex e II/Ex II 2 D; Ex tD A21

Name	Colour	M thread	Cable external diameter [mm]	E	L	For spanner A	For spanner B
EDW 12 HM BK	black	M12x1,5	4÷6	10	22	15	16
EDW 16 HM BK	black	M16x1,5	5÷8	10	26	19	19
EDW 20 HM BK	black	M20x1,5	6÷12	10	30	24	24
EDW 25 HM BK	black	M25x1,5	11÷17	8	34	29	29
EDW 32 HM BK	black	M32x1,5	15÷21	10	42	36	36
EDW 40 HM BK	black	M40x1,5	19÷28	10	46	46	46
EDW 50 HM BK	black	M50x1,5	30÷38	18	54	60	60
EDW 63 HM BK	black	M63x1,5	34÷44	18	54	65	65
EDW 12 HM BL	blue	M12x1,5	4÷6	10	22	15	16
EDW 16 HM BL	blue	M16x1,5	5÷8	10	26	19	19
EDW 20 HM BL	blue	M20x1,5	6÷12	10	30	24	24
EDW 25 HM BL	blue	M25x1,5	11÷17	8	34	29	29
EDW 32 HM BL	blue	M32x1,5	15÷21	10	42	36	36
EDW 40 HM BL	blue	M40x1,5	19÷28	10	46	46	46
EDW 50 HM BL	blue	M50x1,5	30÷38	18	54	60	60
EDW 63 HM BL	blue	M63x1,5	34÷44	18	54	65	65

Type	Name	Language	Updated at	Size	File type
Catalog card	ERGOM_Dlawnice_poliamidowe_typu_EDW_HM_EN.pdf	EN	14-05-2025	229.93 KB	PDF	Download
Catalog card	ERGOM_Dlawnice_poliamidowe_typu_EDW_HM_PL.pdf	PL	14-05-2025	271.32 KB	PDF	Download
