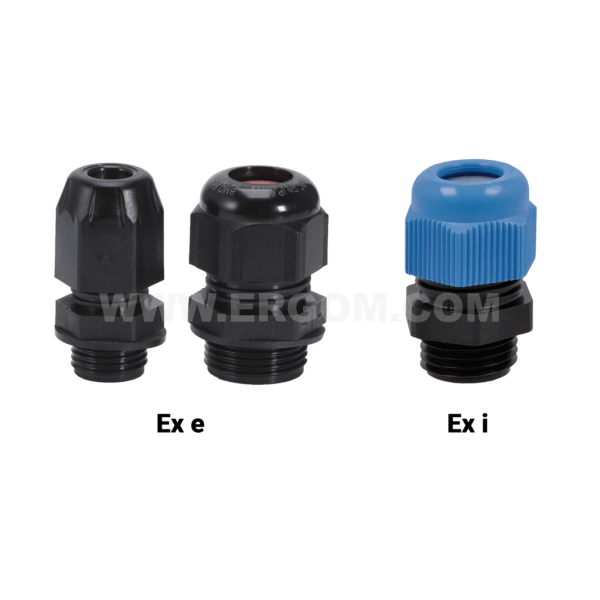

Polyamide glands, EDW...H type

Main data of the product series

Product name: Polyamide glands, EDW...H type
Category: Cable glands for explosive atmosphere
Operating temperature [°C]: -40 ÷ +95
Material: PA 6 polyamide; seal: CR rubber (NEOPREN); flat washer: CE rubber (NEOPREN); hole plug: polyethylene
IP degree of protection: IP68
Note!: The gland with cap installed does not ensure the described properties. EN Nuts have to be ordered separately.

Name	Ergom index / your designation	Min. order quantity [uom]	Qty in package	Unit of measure [uom]	Catalogue price net per uom
EDW 7 H BK	E03DK-06011100001	10	10	pcs.	Price on request
EDW 9 H BK	E03DK-06011100101	10	10	pcs.	Price on request
EDW 11 H BK	E03DK-06011100201	10	10	pcs.	Price on request
EDW 13 H BK	E03DK-06011100301	10	10	pcs.	Price on request
EDW 16 H BK	E03DK-06011100401	10	10	pcs.	Price on request
EDW 21 H BK	E03DK-06011100503	10	10	pcs.	Price on request
EDW 29 H BK	E03DK-06011100603	10	10	pcs.	Price on request
EDW 36 H BK	E03DK-06011100703	10	10	pcs.	Price on request
EDW 42 H BK	E03DK-06011100801	1	1	pcs.	Price on request
EDW 48 H BK	E03DK-06011100901	1	1	pcs.	Price on request
EDW 7 H BL	E03DK-06011300001	10	10	pcs.	Price on request
EDW 9 H BL	E03DK-06011300101	10	10	pcs.	Price on request
EDW 11 H BL	E03DK-06011300201	10	10	pcs.	Price on request
EDW 13 H BL	E03DK-06011300301	10	10	pcs.	Price on request
EDW 16 H BL	E03DK-06011300401	10	10	pcs.	Price on request
EDW 21 H BL	E03DK-06011300503	10	10	pcs.	Price on request
EDW 29 H BL	E03DK-06011300603	10	10	pcs.	Price on request
EDW 36 H BL	E03DK-06011300703	10	10	pcs.	Price on request
EDW 42 H BL	E03DK-06011300801	1	1	pcs.	Price on request
EDW 48 H BL	E03DK-06011300901	1	1	pcs.	Price on request

Selected lines: 0

Material	PA 6 polyamide; seal: CR rubber (NEOPREN); flat washer: CE rubber (NEOPREN); hole plug: polyethylene
Operating temperature [°C]	-40 ÷ +95
Stopień ochrony	IP68
Wykonanie	Ex II GD; Ex e II/ Ex tD A21

Name	Colour	PG thread	Cable external diameter [mm]	E	L	For spanner A	For spanner B
EDW 7 H BK	black	PG7	3,0÷6,5	8	23,0	15	15
EDW 9 H BK	black	PG9	4,0÷8,0	10	28,0	19	19
EDW 11 H BK	black	PG11	5,0÷10,0	10	28,0	19	19
EDW 13 H BK	black	PG13,5	6,0÷12,0	10	31,0	24	24
EDW 16 H BK	black	PG16	10,0÷14,0	10	31,0	24	24
EDW 21 H BK	black	PG21	13,0÷18,0	10	37,0	33	33
EDW 29 H BK	black	PG29	18,0÷25,0	15	43,5	42	42
EDW 36 H BK	black	PG36	22,0÷32,0	18	50,0	53	53
EDW 42 H BK	black	PG42	30,0÷38,0	18	51,0	60	60
EDW 48 H BK	black	PG48	34,0÷44,0	18	53,0	65	65
EDW 7 H BL	blue	PG7	3,0÷6,5	8	23,0	15	15
EDW 9 H BL	blue	PG9	4,0÷8,0	10	28,0	19	19
EDW 11 H BL	blue	PG11	5,0÷10,0	10	28,0	19	19
EDW 13 H BL	blue	PG13,5	6,0÷12,0	10	31,0	24	24
EDW 16 H BL	blue	PG16	10,0÷14,0	10	31,0	24	24
EDW 21 H BL	blue	PG21	13,0÷18,0	10	37,0	33	33
EDW 29 H BL	blue	PG29	18,0÷25,0	11	43,5	42	42
EDW 36 H BL	blue	PG36	22,0÷32,0	18	50,0	53	53
EDW 42 H BL	blue	PG42	30,0÷38,0	18	51,0	60	60
EDW 48 H BL	blue	PG48	34,0÷44,0	18	53,0	65	65
