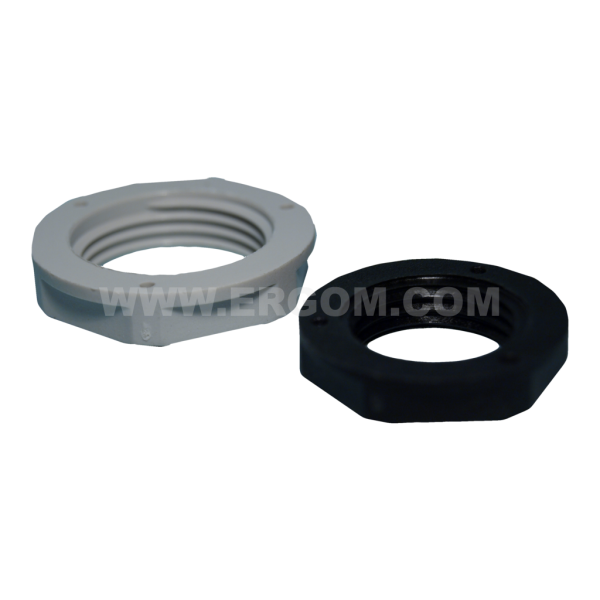

Plastic nut, N...H, N...M

Plastic nut, N...H, N...M

Main data of the product series

Product name
Plastic nut, N...H, N...M
Category
Plastic accessories
Material
polyamide 6
Operating temperature [°C]
-30 ÷ +80
Colour
grey (RAL 7035), black BK (RAL 9005)

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
N 7/H E03DK-02010100101 100 100 pcs. Price on request
N 7/H E03DK-02010100103 10 10 pcs. Price on request
N 9/H E03DK-02010100201 100 100 pcs. Price on request
N 9/H E03DK-02010100203 10 10 pcs. Price on request
N 11/H E03DK-02010100301 100 100 pcs. Price on request
N 11/H E03DK-02010100303 10 10 pcs. Price on request
N 13/H E03DK-02010100401 100 100 pcs. Price on request
N 13/H E03DK-02010100403 10 10 pcs. Price on request
N 16/H E03DK-02010100501 100 100 pcs. Price on request
N 16/H E03DK-02010100503 10 10 pcs. Price on request
N 21/H E03DK-02010100601 50 50 pcs. Price on request
N 21/H E03DK-02010100603 10 10 pcs. Price on request
N 29/H E03DK-02010100701 50 50 pcs. Price on request
N 29/H E03DK-02010100703 10 10 pcs. Price on request
N 36/H E03DK-02010100801 10 10 pcs. Price on request
N 48/H E03DK-02010100901 10 10 pcs. Price on request
N 48/H E03DK-02010100903 1 1 pcs. Price on request
N 42/H E03DK-02010101001 10 10 pcs. Price on request
N 42/H E03DK-02010101003 1 1 pcs. Price on request
N 7/H BK E03DK-02010200101 100 100 pcs. Price on request
N 7/H BK E03DK-02010200103 10 10 pcs. Price on request
N 9/H BK E03DK-02010200201 100 100 pcs. Price on request
N 9/H BK E03DK-02010200203 10 10 pcs. Price on request
N 11/H BK E03DK-02010200301 100 100 pcs. Price on request
N 11/H BK E03DK-02010200303 10 10 pcs. Price on request
N 13/H BK E03DK-02010200401 100 100 pcs. Price on request
N 13/H BK E03DK-02010200403 10 10 pcs. Price on request
N 16/H BK E03DK-02010200501 100 100 pcs. Price on request
N 16/H BK E03DK-02010200503 10 10 pcs. Price on request
N 21/H BK E03DK-02010200601 50 50 pcs. Price on request
N 21/H BK E03DK-02010200603 10 10 pcs. Price on request
N 29/H BK E03DK-02010200701 50 50 pcs. Price on request
N 29/H BK E03DK-02010200703 10 10 pcs. Price on request
N 36/H BK E03DK-02010200801 10 10 pcs. Price on request
N 42/H BK E03DK-02010200901 10 10 pcs. Price on request
N 42/H BK E03DK-02010200903 1 1 pcs. Price on request
N 48NFC/H BK E03DK-02010201001 1 1 pcs. Price on request
N 48/H BK E03DK-02010201101 10 10 pcs. Price on request
N 48/H BK E03DK-02010201103 1 1 pcs. Price on request
N 12M E03DK-02020100101 100 100 pcs. Price on request
N 12M E03DK-02020100103 10 10 pcs. Price on request
N 16M E03DK-02020100201 100 100 pcs. Price on request
N 16M E03DK-02020100203 10 10 pcs. Price on request
N 20M E03DK-02020100301 100 100 pcs. Price on request
N 20M E03DK-02020100303 10 10 pcs. Price on request
N 25M E03DK-02020100401 50 50 pcs. Price on request
N 25M E03DK-02020100403 10 10 pcs. Price on request
N 32M E03DK-02020100501 50 50 pcs. Price on request
N 32M E03DK-02020100503 10 10 pcs. Price on request
N 40M E03DK-02020100601 10 10 pcs. Price on request
N 50M E03DK-02020100701 10 10 pcs. Price on request
N 50M E03DK-02020100703 1 1 pcs. Price on request
N 63M E03DK-02020100801 10 10 pcs. Price on request
N 63M E03DK-02020100803 1 1 pcs. Price on request
N 12M BK E03DK-02020300105 100 100 pcs. Price on request
N 12M BK E03DK-02020300103 10 10 pcs. Price on request
N 16M BK E03DK-02020300205 100 100 pcs. Price on request
N 16M BK E03DK-02020300203 10 10 pcs. Price on request
N 20M BK E03DK-02020300305 100 100 pcs. Price on request
N 20M BK E03DK-02020300303 10 10 pcs. Price on request
N 25M BK E03DK-02020300405 50 50 pcs. Price on request
N 25M BK E03DK-02020300403 10 10 pcs. Price on request
N 32M BK E03DK-02020300505 50 50 pcs. Price on request
N 32M BK E03DK-02020300503 10 10 pcs. Price on request
N 40M BK E03DK-02020300603 10 10 pcs. Price on request
N 50M BK E03DK-02020300703 10 10 pcs. Price on request
N 50M BK E03DK-02020300701 1 1 pcs. Price on request
N 63M BK E03DK-02020300803 10 10 pcs. Price on request
N 63M BK E03DK-02020300801 1 1 pcs. Price on request

Selected lines: 0

Technical data

General data

Material polyamide 6
Halogen-free yes
Colour grey (RAL 7035), black BK (RAL 9005)
Operating temperature [°C] -30 ÷ +80
Name Colour M thread PG thread E For spanner A
N 7/H grey - PG7 5,0 19
N 9/H grey - PG9 5,0 22
N 11/H grey - PG11 5,0 24
N 13/H grey - PG13,5 6,0 27
N 16/H grey - PG16 6,0 30
N 21/H grey - PG21 6,5 36
N 29/H grey - PG29 7,5 46
N 36/H grey - PG36 8,0 60
N 48/H grey - PG48 9,5 67
N 42/H grey - PG42 9,0 67
N 7/H BK black - PG7 4,5 15
N 9/H BK black - PG9 4,5 19
N 11/H BK black - PG11 5,0 22
N 13/H BK black - PG13,5 5,5 24
N 16/H BK black - PG16 6,0 27
N 21/H BK black - PG21 6,5 36
N 29/H BK black - PG29 7,5 46
N 36/H BK black - PG36 9,0 54
N 42/H BK black - PG42 9,0 67
N 48NFC/H BK black - PG48 NFC. 9,5 67
N 48/H BK black - PG48 9,5 67
N 12M grey M12x1,5 - 5,0 18
N 16M grey M16x1,5 - 5,0 22
N 20M grey M20x1,5 - 6,0 26
N 25M grey M25x1,5 - 6,0 32
N 32M grey M32x1,5 - 6,5 41
N 40M grey M40x1,5 - 7,0 50
N 50M grey M50x1,5 - 8,0 60
N 63M grey M63x1,5 - 8,0 75
N 12M BK black M12x1,5 - 4,5 18
N 16M BK black M16x1,5 - 5,0 22
N 20M BK black M20x1,5 - 6,0 26
N 25M BK black M25x1,5 - 6,0 32
N 32M BK black M32x1,5 - 6,5 42
N 40M BK black M40x1,5 - 7,0 50
N 50M BK black M50x1,5 - 7,0 66
N 63M BK black M63x1,5 - 8,0 75

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Nakretka_z_tworzywa_sztucznego_typu_N_H_N_M_EN.pdf EN 14-05-2025 195.81 KB PDF Download
Catalog card ERGOM_Nakretka_z_tworzywa_sztucznego_typu_N_H_N_M_PL.pdf PL 14-05-2025 235.3 KB PDF Download
