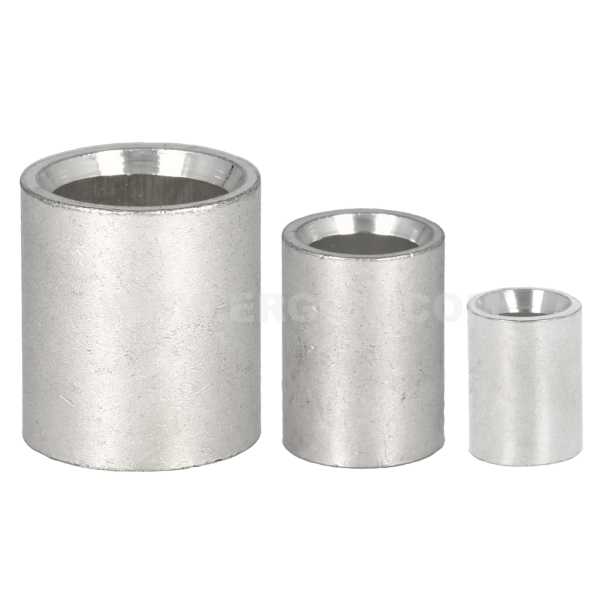

Parallel compression cable connectors, KLS type

Parallel compression cable connectors, KLS type

Main data of the product series

Product name
Parallel compression cable connectors, KLS type
Category
Connectors
Surface
tin-plated
Material
Cu
Note!
Sector-shaped conductors (sm) must be rounded with special dies.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
KLS 10 E11KM-01070100100 100 100 pcs. Price on request
KLS 16 E11KM-01070100200 100 100 pcs. Price on request
KLS 25 E11KM-01070100300 100 100 pcs. Price on request
KLS 35 E11KM-01070100400 100 100 pcs. Price on request
KLS 50 E11KM-01070100500 100 100 pcs. Price on request
KLS 70 E11KM-01070100600 100 100 pcs. Price on request
KLS 95 E11KM-01070100700 50 50 pcs. Price on request
KLS 120 E11KM-01070100800 50 50 pcs. Price on request
KLS 150 E11KM-01070100900 50 50 pcs. Price on request
KLS 185 E11KM-01070101000 50 50 pcs. Price on request
KLS 240 E11KM-01070101100 50 50 pcs. Price on request

Selected lines: 0

Technical data

General data

Material Cu
Surface tin-plated
Wykonanie standard
Name d D L Cross-section, rm/sm [mm²] Socket code no. Number of crimping - wide Number of crimping - narrow
KLS 10 4,5 7,0 10 10 7 1 2
KLS 16 5,5 8,5 11 16 8 1 2
KLS 25 7,0 10,0 14 25 10 1 2
KLS 35 8,5 12,0 16 35 12 1 2
KLS 50 10,0 14,0 19 50 14 1 2
KLS 70 12,0 16,5 19 70 16 1 2
KLS 95 13,5 18,0 20 95 17 1 2
KLS 120 15,0 19,5 22 120 19 1 2
KLS 150 16,5 21,0 26 150 20 1 2
KLS 185 19,0 24,0 30 185 23 2 3
KLS 240 21,0 26,0 34 240 25 2 3

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Laczniki_typu_KLS_laczace_na_zakladke_EN.pdf EN 04-07-2025 319.29 KB PDF Download
Catalog card ERGOM_Laczniki_typu_KLS_laczace_na_zakladke_PL.pdf PL 04-07-2025 358.66 KB PDF Download
