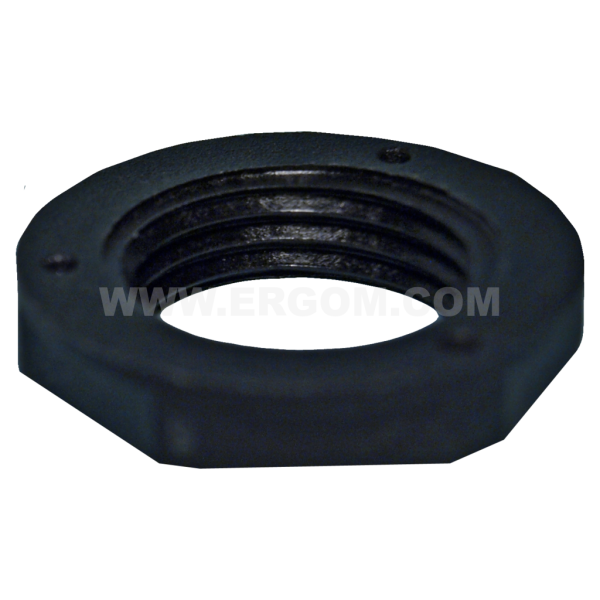

Nuts, EN...M BK type, for Ex glands

Nuts, EN...M BK type, for Ex glands

Main data of the product series

Product name
Nuts, EN...M BK type, for Ex glands
Category
Cable glands for explosive atmosphere
Material
polyamide
Operating temperature [°C]
-20 ÷ +80
Note!
For polyamide glans with PG threads, MDN copper nuts are recommended.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
EN 12M BK E03DK-02020400103 10 10 pcs. Price on request
EN 16M BK E03DK-02020400203 10 10 pcs. Price on request
EN 20M BK E03DK-02020400303 10 10 pcs. Price on request
EN 25M BK E03DK-02020400403 10 10 pcs. Price on request
EN 32M BK E03DK-02020400503 10 10 pcs. Price on request
EN 40M BK E03DK-02020400603 10 10 pcs. Price on request
EN 50M BK E03DK-02020400701 1 1 pcs. Price on request
EN 63M BK E03DK-02020400801 1 1 pcs. Price on request

Selected lines: 0

Technical data

General data

Material polyamide
Colour EExe – czarny (BK)
Operating temperature [°C] -20 ÷ +80
Colour black
Name M thread E For spanner A
EN 12M BK M12x1,5 5,0 18
EN 16M BK M16x1,5 5,0 22
EN 20M BK M20x1,5 6,0 26
EN 25M BK M25x1,5 6,0 32
EN 32M BK M32x1,5 7,0 41
EN 40M BK M40x1,5 7,0 50
EN 50M BK M50x1,5 8,0 60
EN 63M BK M63x1,5 8,0 75

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Nakretki_typu_EN_M_BK_dla_dlawnic_Ex_EN.pdf EN 14-05-2025 163.96 KB PDF Download
Catalog card ERGOM_Nakretki_typu_EN_M_BK_dla_dlawnic_Ex_PL.pdf PL 14-05-2025 205.23 KB PDF Download
