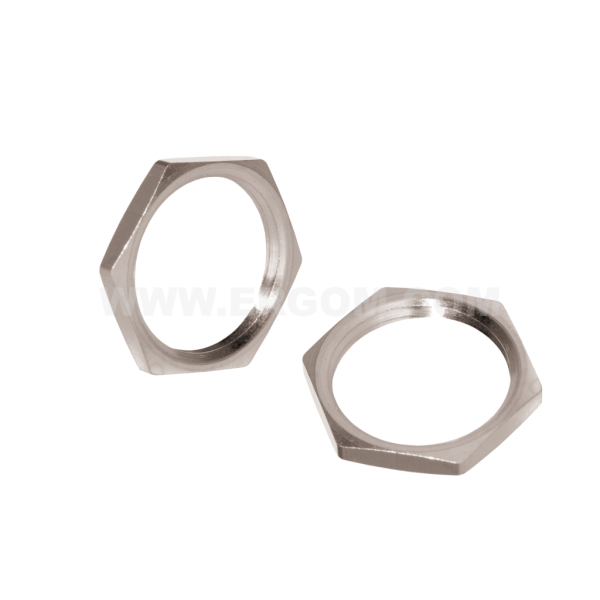

Nut for metal glands, MDN type

Nut for metal glands, MDN type

Main data of the product series

Product name
Nut for metal glands, MDN type
Category
Metal accessories
Material
nickel-plated brass

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
MDN 7 E03DK-04020100101 50 50 pcs. Price on request
MDN 7 E03DK-04020100103 10 10 pcs. Price on request
MDN 9 E03DK-04020100201 50 50 pcs. Price on request
MDN 9 E03DK-04020100203 10 10 pcs. Price on request
MDN 11 E03DK-04020100301 50 50 pcs. Price on request
MDN 11 E03DK-04020100303 10 10 pcs. Price on request
MDN 13 E03DK-04020100401 50 50 pcs. Price on request
MDN 13 E03DK-04020100403 10 10 pcs. Price on request
MDN 16 E03DK-04020100501 50 50 pcs. Price on request
MDN 16 E03DK-04020100503 10 10 pcs. Price on request
MDN 21 E03DK-04020100601 25 25 pcs. Price on request
MDN 21 E03DK-04020100603 10 10 pcs. Price on request
MDN 29 E03DK-04020100701 25 25 pcs. Price on request
MDN 29 E03DK-04020100703 10 10 pcs. Price on request
MDN 36 E03DK-04020100801 5 5 pcs. Price on request
MDN 42 E03DK-04020100901 5 5 pcs. Price on request
MDN 42 E03DK-04020100903 1 1 pcs. Price on request
MDN 48 E03DK-04020101001 5 5 pcs. Price on request
MDN 48 E03DK-04020101003 1 1 pcs. Price on request
MDN 12M E03DK-04020200101 50 50 pcs. Price on request
MDN 12M E03DK-04020200103 10 10 pcs. Price on request
MDN 16M E03DK-04020200161 50 50 pcs. Price on request
MDN 16M E03DK-04020200163 10 10 pcs. Price on request
MDN 20M E03DK-04020200201 50 50 pcs. Price on request
MDN 20M E03DK-04020200203 10 10 pcs. Price on request
MDN 25M E03DK-04020200301 25 25 pcs. Price on request
MDN 25M E03DK-04020200303 10 10 pcs. Price on request
MDN 32M E03DK-04020200401 25 25 pcs. Price on request
MDN 32M E03DK-04020200403 10 10 pcs. Price on request
MDN 40M E03DK-04020200501 5 5 pcs. Price on request
MDN 50M E03DK-04020200601 5 5 pcs. Price on request
MDN 50M E03DK-04020200603 1 1 pcs. Price on request
MDN 63M E03DK-04020200701 5 5 pcs. Price on request
MDN 63M E03DK-04020200703 1 1 pcs. Price on request
MDN 75M E03DK-04020200801 1 1 pcs. Price on request
MDN 90M E03DK-04020200901 1 1 pcs. Price on request
MDN 110M E03DK-04020201001 1 1 pcs. Price on request

Selected lines: 0

Technical data

General data

Material nickel-plated brass
Name Thread E For spanner A
MDN 7 PG7 2,8 15,0
MDN 9 PG9 2,8 18,0
MDN 11 PG11 3,0 21,0
MDN 13 PG13,5 3,0 23,0
MDN 16 PG16 3,0 26,0
MDN 21 PG21 3,5 32,0
MDN 29 PG29 3,8 41,0
MDN 36 PG36 4,9 51,0
MDN 42 PG42 4,7 60,0
MDN 48 PG48 5,5 64,0
MDN 12M M12x1,5 2,8 15,0
MDN 16M M16x1,5 2,8 19,0
MDN 20M M20x1,5 2,9 24,0
MDN 25M M25x1,5 3,5 30,0
MDN 32M M32x1,5 4,0 36,0
MDN 40M M40x1,5 4,5 45,4
MDN 50M M50x1,5 5,0 56,0
MDN 63M M63x1,5 6,0 70,0
MDN 75M M75x1,5 8,0 85,0
MDN 90M M90x2 8,0 110,5
MDN 110M M110x2 12,0 120,0

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Nakretka_do_dlawnic_metalowych_typu_MDN_EN.pdf EN 14-07-2025 216.03 KB PDF Download
Catalog card ERGOM_Nakretka_do_dlawnic_metalowych_typu_MDN_PL.pdf PL 14-07-2025 258.09 KB PDF Download
