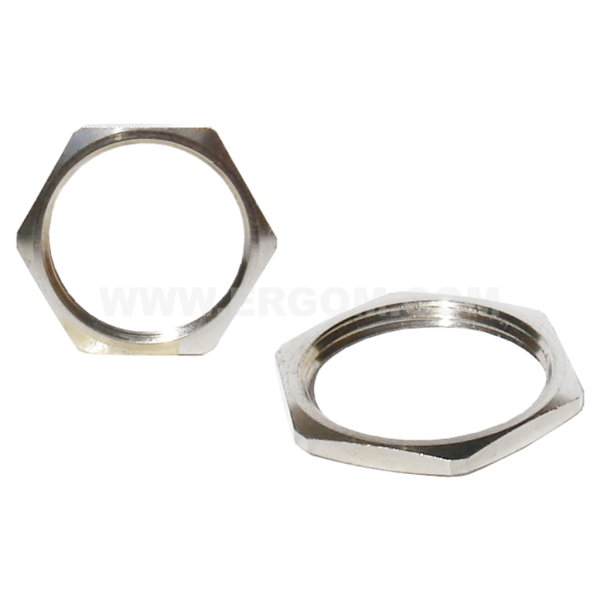

Nut for metal glands, MDN...ST type

Nut for metal glands, MDN...ST type

Main data of the product series

Product name: Nut for metal glands, MDN...ST type
Category: Metal accessories
Material: stainless steel 316L AISI

Features and benefits

Product description

-

Offer

Name	Ergom index / your designation	Min. order quantity [uom]	Qty in package	Unit of measure [uom]	Catalogue price net per uom	Quantity [uom]
MDN 7ST	E03DK-04030100103	10	1	pcs.	Price on request
MDN 9ST	E03DK-04030100203	1	1	pcs.	Price on request
MDN 11ST	E03DK-04030100303	1	1	pcs.	Price on request
MDN 13ST	E03DK-04030100403	1	1	pcs.	Price on request
MDN 16ST	E03DK-04030100503	1	1	pcs.	Price on request
MDN 21ST	E03DK-04030100603	1	1	pcs.	Price on request
MDN 29ST	E03DK-04030100703	1	1	pcs.	Price on request
MDN 36ST	E03DK-04030100803	1	1	pcs.	Price on request
MDN 42ST	E03DK-04030100903	1	1	pcs.	Price on request
MDN 48NFC ST	E03DK-04030101001	1	1	pcs.	Price on request
MDN 48ST	E03DK-04030101103	1	1	pcs.	Price on request
MDN 12MST	E03DK-04030200203	1	1	pcs.	Price on request
MDN 16MST	E03DK-04030200303	1	1	pcs.	Price on request
MDN 20MST	E03DK-04030200403	1	1	pcs.	Price on request
MDN 25MST	E03DK-04030200503	1	1	pcs.	Price on request
MDN 32MST	E03DK-04030200603	1	1	pcs.	Price on request
MDN 40MST	E03DK-04030200703	1	1	pcs.	Price on request
MDN 50MST	E03DK-04030200803	1	1	pcs.	Price on request
MDN 63MST	E03DK-04030200903	1	1	pcs.	Price on request

Selected lines: 0

Technical data

General data

Material	stainless steel 316L AISI

Name	Thread	E	For spanner A
MDN 7ST	PG7	2,8	15
MDN 9ST	PG9	2,8	18
MDN 11ST	PG11	3,0	21
MDN 13ST	PG13,5	3,0	23
MDN 16ST	PG16	3,0	26
MDN 21ST	PG21	3,5	32
MDN 29ST	PG29	4,0	41
MDN 36ST	PG36	5,0	51
MDN 42ST	PG42	5,0	58
MDN 48NFC ST	PG48 NFC	6,0	64
MDN 48ST	PG48	6,0	64
MDN 12MST	M12x1,5	3,2	17
MDN 16MST	M16x1,5	3,2	18,9
MDN 20MST	M20x1,5	3,5	25,5
MDN 25MST	M25x1,5	4,0	30
MDN 32MST	M32x1,5	4,5	36
MDN 40MST	M40x1,5	4,8	46
MDN 50MST	M50x1,5	4,8	60
MDN 63MST	M63x1,5	6,4	80

Guide

No data

Knowledge

No data

Downloads

Type	Name	Language	Updated at	Size	File type
Catalog card	ERGOM_Nakretka_do_dlawnic_metalowych_typu_MDN_ST_EN.pdf	EN	14-05-2025	165.45 KB	PDF	Download
Catalog card	ERGOM_Nakretka_do_dlawnic_metalowych_typu_MDN_ST_PL.pdf	PL	14-05-2025	205.99 KB	PDF	Download
