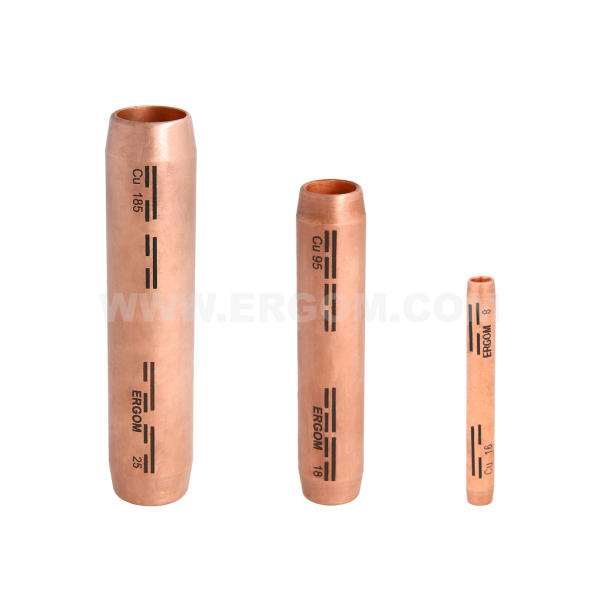

Non-tension compression tubular cable connectors with barrier, LMWP… type

Non-tension compression tubular cable connectors with barrier, LMWP… type

Main data of the product series

Product name
Non-tension compression tubular cable connectors with barrier, LMWP… type
Category
Connectors
Surface
uncoated
Material
Cu
Note!
Sector-shaped conductors (sm) must be rounded with special dies.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
LMWP 16 E11KM-02100300102 30 10 pcs. Price on request
LMWP 25 E11KM-02100300202 30 10 pcs. Price on request
LMWP 35 E11KM-02100300302 30 10 pcs. Price on request
LMWP 50 E11KM-02100300402 30 10 pcs. Price on request
LMWP 70 E11KM-02100300502 30 10 pcs. Price on request
LMWP 95 E11KM-02100300602 30 10 pcs. Price on request
LMWP 120 E11KM-02100300702 30 10 pcs. Price on request
LMWP 150 E11KM-02100300802 30 10 pcs. Price on request
LMWP 185 E11KM-02100300902 30 10 pcs. Price on request
LMWP 240 E11KM-02100301002 30 10 pcs. Price on request

Selected lines: 0

Technical data

General data

Material Cu
Surface uncoated
Wykonanie DIN 46267 Part 1 – concerns diameters the tubular part
Name d D L Cross-section, rm/sm [mm²] Socket code no. Number of crimping - wide Number of crimping - narrow
LMWP 16 5,5 8,5 65 16 8 1 - 1 2 - 2
LMWP 25 7,0 10,0 65 25 10 1 - 1 2 - 2
LMWP 35 8,2 12,5 65 35 12 1 - 1 2 - 2
LMWP 50 10,0 14,5 75 50 14 1 - 1 3 - 3
LMWP 70 11,5 16,5 75 70 16 1 - 1 3 - 3
LMWP 95 13,5 19,0 91 95 18 2 - 2 4 - 4
LMWP 120 15,5 21,0 91 120 20 2 - 2 4 - 4
LMWP 150 17,0 23,5 105 150 22 2 - 2 4 - 4
LMWP 185 19,0 25,5 115 185 25 2 - 2 4 - 4
LMWP 240 21,5 29,0 115 240 28 2 - 2 5 - 5

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Laczniki_miedziane_z_przegroda_nieobciazalne_mechanicznie_LMWP_EN.pdf EN 31-07-2025 418.54 KB PDF Download
Catalog card ERGOM_Laczniki_miedziane_z_przegroda_nieobciazalne_mechanicznie_LMWP_PL.pdf PL 31-07-2025 438.11 KB PDF Download
