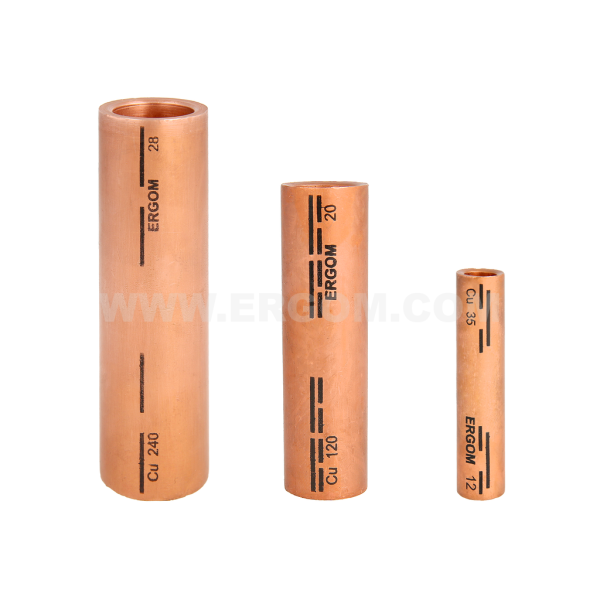

Non-tension compression tubular cable connectors with barrier, LMP type

Non-tension compression tubular cable connectors with barrier, LMP type

Main data of the product series

Product name
Non-tension compression tubular cable connectors with barrier, LMP type
Category
Connectors
Surface
uncoated
Material
Cu
Note!
Sector-shaped conductors (sm) must be rounded with special dies. Tin version on request.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
LMP 16 E11KM-02100100102 30 10 pcs. Price on request
LMP 25 E11KM-02100100202 30 10 pcs. Price on request
LMP 35 E11KM-02100100302 30 10 pcs. Price on request
LMP 50 E11KM-02100100402 30 10 pcs. Price on request
LMP 70 E11KM-02100100502 30 10 pcs. Price on request
LMP 95 E11KM-02100100602 30 10 pcs. Price on request
LMP 120 E11KM-02100100702 30 10 pcs. Price on request
LMP 150 E11KM-02100100802 30 10 pcs. Price on request
LMP 185 E11KM-02100100902 30 10 pcs. Price on request
LMP 240 E11KM-02100101002 30 10 pcs. Price on request

Selected lines: 0

Technical data

General data

Material Cu
Surface uncoated
Wykonanie DIN 46267 Part 1 – concerns diameters the tubular part
Name d D L Cross-section, rm/sm [mm²] Socket code no. Number of crimping - wide Number of crimping - narrow
LMP 16 5,5 8,5 55 16 8 1 -1 2 - 2
LMP 25 7,0 10,0 55 25 10 1 -1 2 - 2
LMP 35 8,2 12,5 55 35 12 1 -1 2 - 2
LMP 50 10,0 14,5 65 50 14 1 -1 3 - 3
LMP 70 11,5 16,5 65 70 16 1 -1 3 - 3
LMP 95 13,5 19,0 75 95 18 2 - 2 4 - 4
LMP 120 15,5 21,0 75 120 20 2 - 2 4 - 4
LMP 150 17,0 23,5 85 150 22 2 - 2 4 - 4
LMP 185 19,0 25,5 95 185 25 2 - 2 4 - 4
LMP 240 21,5 29,0 95 240 28 2 - 2 5 - 5

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Laczniki_rurowe_z_przegroda_nieobciazalne_mechanicznie_typu_LMP_EN.pdf EN 04-07-2025 319.99 KB PDF Download
Catalog card ERGOM_Laczniki_rurowe_z_przegroda_nieobciazalne_mechanicznie_typu_LMP_PL.pdf PL 04-07-2025 361.88 KB PDF Download
