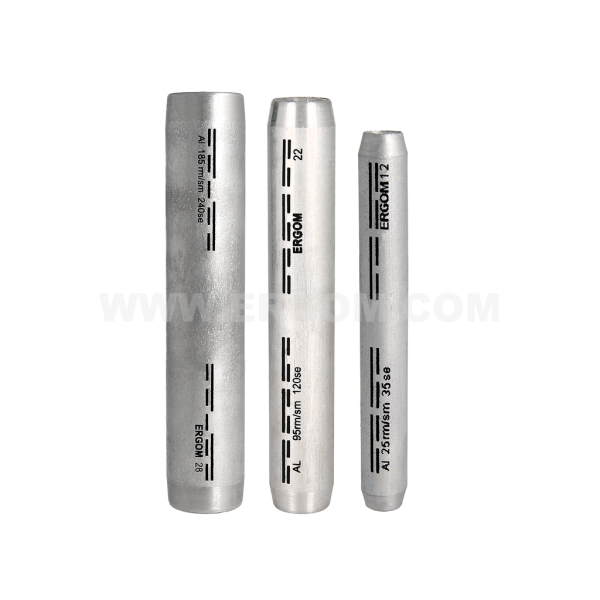

Non-tension compression tubular cable connectors with barrier, LAWP… type

Non-tension compression tubular cable connectors with barrier, LAWP… type

Main data of the product series

Product name
Non-tension compression tubular cable connectors with barrier, LAWP… type
Category
Connectors
Surface
uncoated
Material
Al
Note!
- connectors are filled with special contact grease in tubular part ended with a plastic plug; - sector-shaped conductors must be rounded with special dies. Tin-plated version on request.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
LAWP 16 E12KA-01120300102 50 10 pcs. Price on request
LAWP 25 E12KA-01120300202 50 10 pcs. Price on request
LAWP 35 E12KA-01120300302 50 10 pcs. Price on request
LAWP 50 E12KA-01120300402 50 10 pcs. Price on request
LAWP 70 E12KA-01120300502 50 10 pcs. Price on request
LAWP 95 E12KA-01120300602 50 10 pcs. Price on request
LAWP 120 E12KA-01120300702 50 10 pcs. Price on request
LAWP 150 E12KA-01120300802 50 10 pcs. Price on request
LAWP 185 E12KA-01120300902 50 10 pcs. Price on request
LAWP 240 E12KA-01120301002 50 10 pcs. Price on request

Selected lines: 0

Technical data

General data

Material Al
Surface uncoated
Wykonanie DIN 46267 Part 2 – concerns diameters the tubular part
Name d D L Cross-section, rm/sm [mm²] Cross-section, re/se [mm²] Nr gniazda - 2 klasa (RM/RMC) Nr gniazda - 2 klasa (RMC) Number of crimping - wide Number of crimping - narrow
LAWP 16 5,6 12 85 16 25 12 MW16 2-2 4-4
LAWP 25 6,8 12,0 85 25 35 12 MW25 2-2 4-4
LAWP 35 8,0 14,0 100 35 50 14 MW35 2-2 5-5
LAWP 50 9,8 16,0 100 50 70 16 MW50 2-2 5-5
LAWP 70 11,2 18,5 120 70 95 18 MW70 3-3 6-6
LAWP 95 13,2 22,0 136 95 120 22 MW95 3-3 6-6
LAWP 120 14,7 23,0 136 120 150 22 MW120 3-3 6-6
LAWP 150 16,3 25,0 150 150 185 25 MW150 3-3 6-6
LAWP 185 18,3 28,5 150 185 240 28 MW185 3-3 6-6
LAWP 240 21,0 32,0 170 240 300 32 MW240 3-3 8-8

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Laczniki_rurowe_z_przegroda_typu_LAWP_…_EN.pdf EN 05-09-2025 427.95 KB PDF Download
Catalog card ERGOM_Laczniki_rurowe_z_przegroda_typu_LAWP_…_PL.pdf PL 05-09-2025 445.38 KB PDF Download
