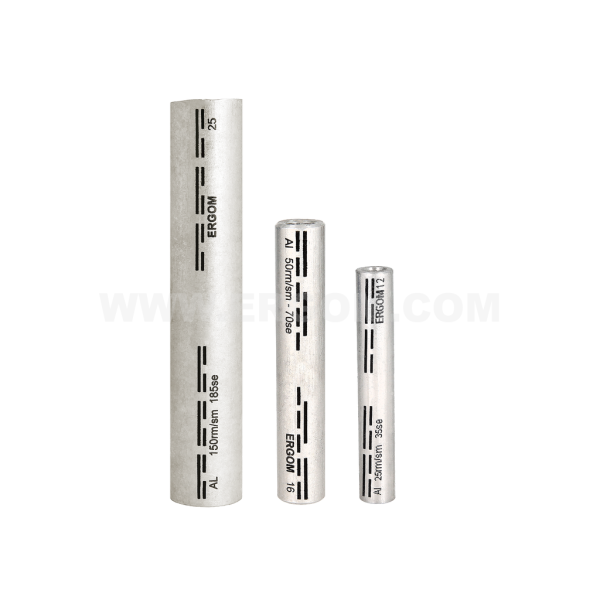

Non-tension compression tubular cable connectors with barrier, LAP… type

Non-tension compression tubular cable connectors with barrier, LAP… type

Main data of the product series

Product name
Non-tension compression tubular cable connectors with barrier, LAP… type
Category
Connectors
Surface
uncoated
Material
Al
Note!
- connectors are filled with special contact grease in tubular part ended with a plastic plug - sector-shaped conductors must be rounded with special dies. Tin-plated version on request.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
LAP 16 E12KA-01120100102 50 10 pcs. Price on request
LAP 25 E12KA-01120100202 50 10 pcs. Price on request
LAP 35 E12KA-01120100302 50 10 pcs. Price on request
LAP 50 E12KA-01120100402 50 10 pcs. Price on request
LAP 70 E12KA-01120100502 50 10 pcs. Price on request
LAP 95 E12KA-01120100602 50 10 pcs. Price on request
LAP 120 E12KA-01120100702 50 10 pcs. Price on request
LAP 150 E12KA-01120100802 50 10 pcs. Price on request
LAP 185 E12KA-01120100902 50 10 pcs. Price on request
LAP 240 E12KA-01120101002 50 10 pcs. Price on request

Selected lines: 0

Technical data

General data

Material Al
Surface uncoated
Normy EN 61238-1-1:2020-06, EN 61238-1-3:2020-01 - mechanical strength Class 1 - short-circuit resistance Class A for range of rated cross-section 16 - 300 mm²
Wykonanie DIN 46267 Part 2 – concerns diameters the tubular part
Name d D L Cross-section, rm/sm [mm²] Cross-section, re/se [mm²] Nr gniazda - 2 klasa (RM/RMC) Nr gniazda - 2 klasa (RMC) Number of crimping - wide Number of crimping - narrow
LAP 16 5,6 12,0 75 16 25 12 MW16 2-2 4-4
LAP 25 6,8 12,0 75 25 35 12 MW25 2-2 4-4
LAP 35 8,0 14,0 90 35 50 14 MW35 2-2 5-5
LAP 50 9,8 16,0 90 50 70 16 MW50 2-2 5-5
LAP 70 11,2 18,5 110 70 95 18 MW70 3-3 6-6
LAP 95 13,2 22,0 120 95 120 22 MW95 3-3 6-6
LAP 120 14,7 23,0 120 120 150 22 MW120 3-3 6-6
LAP 150 16,3 25,0 130 150 185 25 MW150 3-3 6-6
LAP 185 18,3 28,5 130 185 240 28 MW185 3-3 6-6
LAP 240 21,0 32,0 150 240 300 32 MW240 3-3 8-8

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Laczniki_rurowe_z_przegroda_typu_LAP_EN.pdf EN 05-09-2025 399.02 KB PDF Download
Catalog card ERGOM_Laczniki_rurowe_z_przegroda_typu_LAP_PL.pdf PL 05-09-2025 415.46 KB PDF Download
