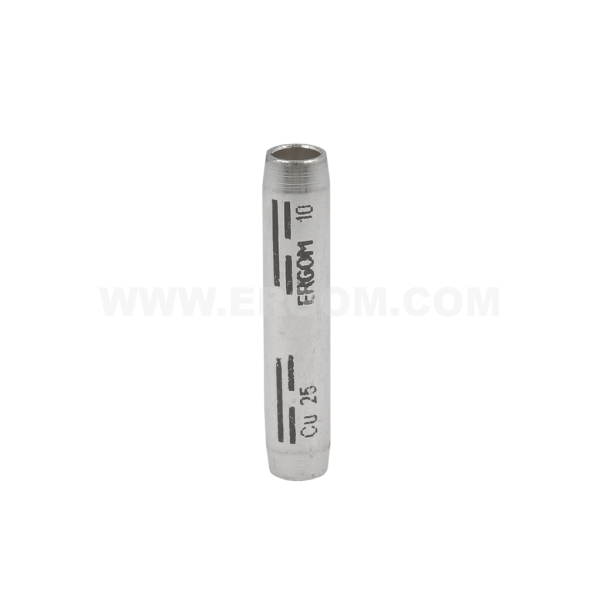

Non-tension compression tubular cable connectors, LMWC type

Non-tension compression tubular cable connectors, LMWC type

Main data of the product series

Product name
Non-tension compression tubular cable connectors, LMWC type
Category
Connectors
Material
Cu
Surface
tin-plated
Note!
Sector-shaped conductors (sm) must be rounded with special dies.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
LMWC 25 E11KM-02080200102 30 10 pcs. Price on request
LMWC 35 E11KM-02080200202 30 10 pcs. Price on request
LMWC 50 E11KM-02080200302 30 10 pcs. Price on request
LMWC 70 E11KM-02080200402 30 10 pcs. Price on request
LMWC 95 E11KM-02080200502 30 10 pcs. Price on request
LMWC 120 E11KM-02080200602 30 10 pcs. Price on request
LMWC 150 E11KM-02080200702 30 10 pcs. Price on request
LMWC 185 E11KM-02080200802 30 10 pcs. Price on request

Selected lines: 0

Technical data

General data

Material Cu
Surface tin-plated
Wykonanie DIN 46267 Part 1 – concerns diameters the tubular part
Name d D L Cross-section, rm/sm [mm²] Socket code no. Number of crimping - wide Number of crimping - narrow
LMWC 25 7,0 10 50 25 10 1 -1 2 - 2
LMWC 35 8,2 12,5 50 35 12 1 -1 2 - 2
LMWC 50 10,0 14,5 65 50 14 1 -1 3 - 3
LMWC 70 11,5 16,5 65 70 16 1 -1 3 - 3
LMWC 95 13,5 19,0 90 95 18 2 - 2 4 - 4
LMWC 120 15,5 21,0 90 120 20 2 - 2 4 - 4
LMWC 150 17,0 23,5 106 150 22 2 - 2 4 - 4
LMWC 185 19,0 25,5 106 185 25 2 - 2 4 - 4

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Laczniki_rurowe_nieobciazalne_mechanicznie_typu_LMWC_EN.pdf EN 31-07-2025 405.72 KB PDF Download
Catalog card ERGOM_Laczniki_rurowe_nieobciazalne_mechanicznie_typu_LMWC_PL.pdf PL 31-07-2025 424.11 KB PDF Download
