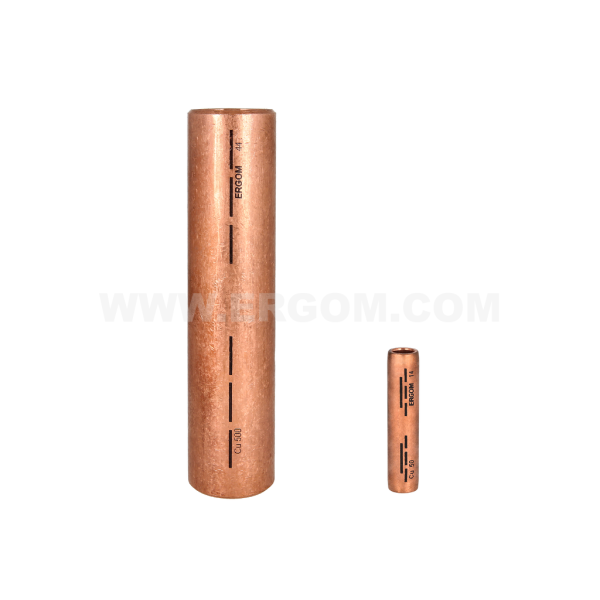

Non-tension compression tubular cable connectors, LMW type

Non-tension compression tubular cable connectors, LMW type

Main data of the product series

Product name
Non-tension compression tubular cable connectors, LMW type
Category
Connectors
Surface
uncoated
Material
Cu
Note!
Sector-shaped conductors (sm) must be rounded with special dies.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
LMW 16 E11KM-02080100102 30 10 pcs. Price on request
LMW 25 E11KM-02080100202 30 10 pcs. Price on request
LMW 35 E11KM-02080100302 30 10 pcs. Price on request
LMW 50 E11KM-02080100402 30 10 pcs. Price on request
LMW 70 E11KM-02080100502 30 10 pcs. Price on request
LMW 95 E11KM-02080100602 30 10 pcs. Price on request
LMW 120 E11KM-02080100702 30 10 pcs. Price on request
LMW 150 E11KM-02080100802 30 10 pcs. Price on request
LMW 185 E11KM-02080100902 30 10 pcs. Price on request
LMW 240 E11KM-02080101002 30 10 pcs. Price on request
LMW 300 E11KM-02080101100 10 1 pcs. Price on request
LMW 400 E11KM-02080101200 10 1 pcs. Price on request
LMW 500 E11KM-02080101300 10 1 pcs. Price on request
LMW 625 E11KM-02080101400 10 1 pcs. Price on request

Selected lines: 0

Technical data

General data

Material Cu
Surface uncoated
Wykonanie DIN 46267 Part 1 – concerns diameters the tubular part
Name d D L Cross-section, rm/sm [mm²] Socket code no. Number of crimping - wide Number of crimping - narrow
LMW 16 5,5 8,5 50 16 8 1 -1 2 - 2
LMW 25 7,0 10 50 25 10 1 -1 2 - 2
LMW 35 8,2 12,5 50 35 12 1 -1 2 - 2
LMW 50 10,0 14,5 65 50 14 1 -1 3 - 3
LMW 70 11,5 16,5 65 70 16 1 -1 3 - 3
LMW 95 13,5 19,0 90 95 18 2 - 2 4 - 4
LMW 120 15,5 21,0 90 120 20 2 - 2 4 - 4
LMW 150 17,0 23,5 106 150 22 2 - 2 4 - 4
LMW 185 19,0 25,5 106 185 25 2 - 2 4 - 4
LMW 240 21,5 29,0 110 240 28 2 - 2 5 - 5
LMW 300 24,0 32,0 116 300 32 2 - 2 6 - 6
LMW 400 27,5 38,5 160 400 38 3 - 3 -
LMW 500 31,0 42,0 175 500 42 3 - 3 -
LMW 625 34,5 44,0 190 625 44 3 - 3 -

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Laczniki_rurowe_nieobciazalne_mechanicznie_typu_LMW_EN.pdf EN 31-07-2025 424.09 KB PDF Download
Catalog card ERGOM_Laczniki_rurowe_nieobciazalne_mechanicznie_typu_LMW_PL.pdf PL 31-07-2025 442.58 KB PDF Download
