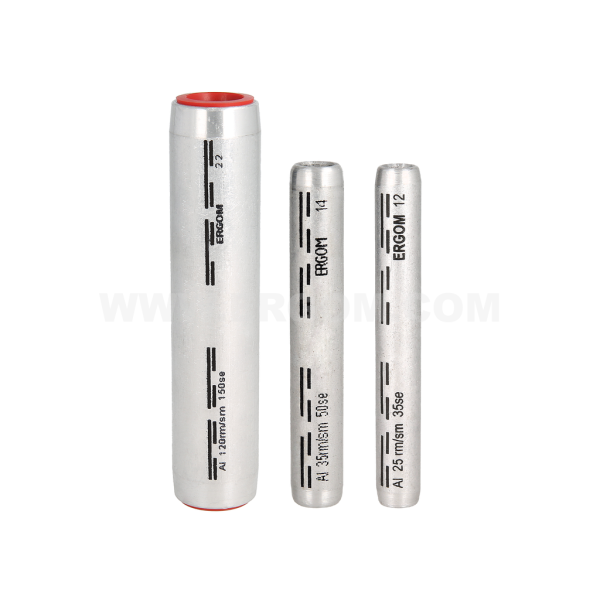

Non-tension compression tubular cable connectors, LAW… type

Non-tension compression tubular cable connectors, LAW… type

Main data of the product series

Product name
Non-tension compression tubular cable connectors, LAW… type
Category
Connectors
Surface
uncoated
Material
Al
Note!
- cable lugs are filled with special contact grease in tubular part ended with a plastic plug; - sector-shaped conductors must be rounded with special dies. Tin-plated version on request.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
LAW 16 E12KA-01100300102 50 10 pcs. Price on request
LAW 25 E12KA-01100300202 50 10 pcs. Price on request
LAW 35 E12KA-01100300302 50 10 pcs. Price on request
LAW 50 E12KA-01100300402 50 10 pcs. Price on request
LAW 70 E12KA-01100300502 50 10 pcs. Price on request
LAW 95 E12KA-01100300602 50 10 pcs. Price on request
LAW 120 E12KA-01100300702 50 10 pcs. Price on request
LAW 150 E12KA-01100300802 50 10 pcs. Price on request
LAW 185 E12KA-01100300902 50 10 pcs. Price on request
LAW 240 E12KA-01100301012 50 10 pcs. Price on request
LAW 300 E12KA-01100301102 10 10 pcs. Price on request
LAW 400 E12KA-01100301200 10 1 pcs. Price on request
LAW 500 E12KA-01100301300 10 1 pcs. Price on request

Selected lines: 0

Technical data

General data

Material Al
Surface uncoated
Wykonanie DIN 46267 Part 2 – concerns diameters the tubular part
Name d D L Cross-section, rm/sm [mm²] Cross-section, re/se [mm²] Nr gniazda - 2 klasa (RM/RMC) Nr gniazda - 2 klasa (RMC) Number of crimping - wide Number of crimping - narrow
LAW 16 5,6 12,0 90 16 25 12 MW16 2-2 4-4
LAW 25 6,8 12,0 90 25 35 12 MW25 2-2 4-4
LAW 35 8,0 14,0 90 35 50 14 MW35 2-2 4-4
LAW 50 9,8 16,0 90 50 70 16 MW50 2-2 4-4
LAW 70 11,2 18,5 95 70 95 18 MW70 2-2 4-4
LAW 95 13,2 22,5 100 95 120 22 MW95 2-2 4-4
LAW 120 14,7 23,0 105 120 150 22 MW120 2-2 4-4
LAW 150 16,3 25,0 105 150 185 25 MW150 2-2 4-4
LAW 185 18,3 28,5 125 185 240 28 MW185 2-2 5-5
LAW 240 21,0 32,0 125 240 300 32 MW240 2-2 5-5
LAW 300 23,3 34,0 125 300 - 34 MW300 2-2 5-5
LAW 400 26,0 38,5 150 400 - 38 - 3-3 -
LAW 500 29,0 44,0 170 500 - 44 - 3-3 -

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Laczniki_rurowe_typu_LAW_EN.pdf EN 05-09-2025 363.44 KB PDF Download
Catalog card ERGOM_Laczniki_rurowe_typu_LAW_PL.pdf PL 05-09-2025 380.39 KB PDF Download
