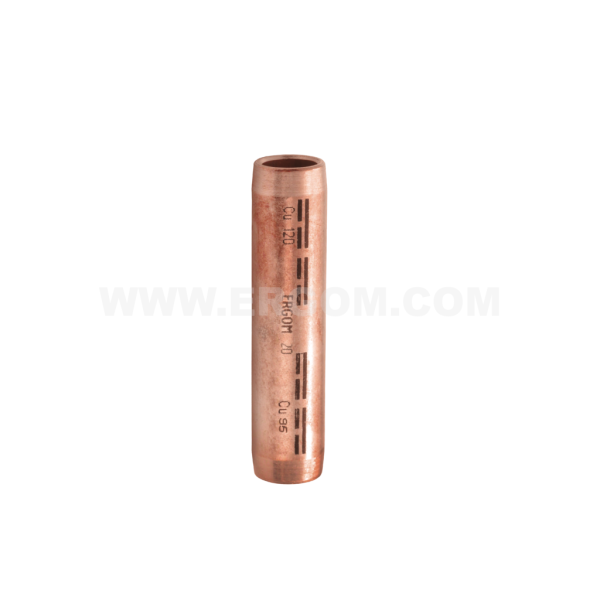

Non-tension compression reducing tubular cable connectors with barrier, LMWP.../... type

Non-tension compression reducing tubular cable connectors with barrier, LMWP.../... type

Main data of the product series

Product name: Non-tension compression reducing tubular cable connectors with barrier, LMWP.../... type
Category: Connectors
Surface: uncoated
Material: Cu
Note!: Sector-shaped conductors (sm) must be rounded with special dies. Other designs on request.

Features and benefits

Product description

-

Offer

Name	Ergom index / your designation	Min. order quantity [uom]	Qty in package	Unit of measure [uom]	Catalogue price net per uom	Quantity [uom]
LMWP 25/16	E11KM-02100400202	30	10	pcs.	Price on request
LMWP 35/25	E11KM-02100400402	30	10	pcs.	Price on request
LMWP 50/25	E11KM-02100400502	30	10	pcs.	Price on request
LMWP 50/35	E11KM-02100400602	30	10	pcs.	Price on request
LMWP 70/35	E11KM-02100400702	30	10	pcs.	Price on request
LMWP 70/50	E11KM-02100400802	30	10	pcs.	Price on request
LMWP 95/50	E11KM-02100401002	30	10	pcs.	Price on request
LMWP 95/70	E11KM-02100401102	30	10	pcs.	Price on request
LMWP 120/70	E11KM-02100401402	30	10	pcs.	Price on request
LMWP 120/95	E11KM-02100401502	30	10	pcs.	Price on request
LMWP 150/95	E11KM-02100401802	30	10	pcs.	Price on request
LMWP 150/120	E11KM-02100401902	30	10	pcs.	Price on request
LMWP 185/120	E11KM-02100402302	30	10	pcs.	Price on request
LMWP 185/150	E11KM-02100402402	30	10	pcs.	Price on request
LMWP 240/150	E11KM-02100402802	30	10	pcs.	Price on request
LMWP 240/185	E11KM-02100402902	30	10	pcs.	Price on request

Selected lines: 0

Technical data

General data

Material	Cu
Surface	uncoated

Name	D	d₁	d₂	L	Cross-section, d₁ rm/sm [mm²]	Cross-section, d₂ rm/sm [mm²]	Socket code no.	Number of crimping - wide	Number of crimping - narrow
LMWP 25/16	10,0	7,0	5,5	65	25	16	10	1 -1	2-2
LMWP 35/25	12,5	8,2	7,0	65	35	25	12	1 -1	2-2
LMWP 50/25	14,5	10,0	7,0	75	50	25	14	1-1	3-3
LMWP 50/35	14,5	10,0	8,2	75	50	35	14	1-1	3-3
LMWP 70/35	16,5	11,5	8,2	75	70	35	16	1-1	3-3
LMWP 70/50	16,5	11,5	10,0	75	70	50	16	1-1	3-3
LMWP 95/50	19,0	13,5	10,0	91	95	50	18	2-2	4-4
LMWP 95/70	19,0	13,5	11,5	91	95	70	18	2-2	4-4
LMWP 120/70	21,0	15,5	11,5	95	120	70	20	2-2	4-4
LMWP 120/95	21,0	15,5	13,5	95	120	95	20	2-2	4-4
LMWP 150/95	23,5	17,0	13,5	105	150	95	22	2-2	4-4
LMWP 150/120	23,5	17,0	15,5	105	150	120	22	2-2	4-4
LMWP 185/120	25,5	19,0	15,5	115	185	120	25	2-2	4 - 4
LMWP 185/150	25,5	19,0	17,0	115	185	150	25	2-2	4 - 4
LMWP 240/150	29,0	21,5	17,0	115	240	150	28	2-2	5 - 5
LMWP 240/185	29,0	21,5	19,0	115	240	185	28	2-2	5 - 5
