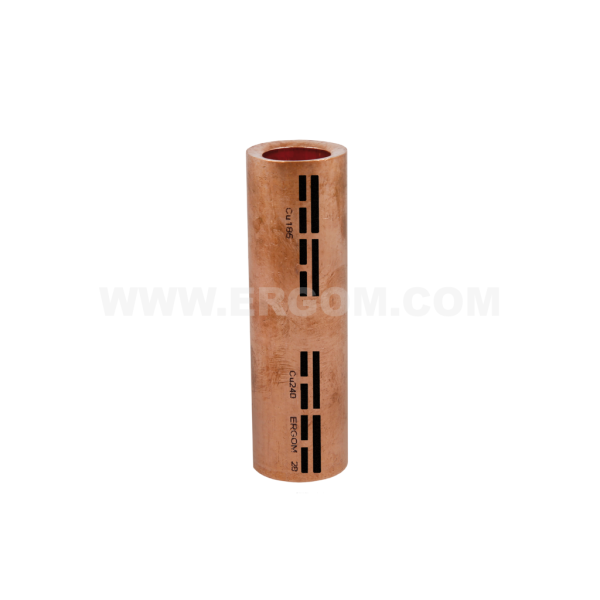

Non-tension compression reducing tubular cable connectors with barrier, LMP.../... type

Main data of the product series

Product name: Non-tension compression reducing tubular cable connectors with barrier, LMP.../... type
Category: Connectors
Surface: uncoated
Material: Cu
Note!: - sector-shaped conductors (sm) must be rounded with special dies; - larger recommended number of crimps always refers to a larger ID of the connector. Tin version on request. Other versions on request.

Features and benefits

Product description

Offer

Name	Ergom index / your designation	Min. order quantity [uom]	Qty in package	Unit of measure [uom]	Catalogue price net per uom
LMP 16/10	E11KM-02100200102	30	10	pcs.	Price on request
LMP 25/10	E11KM-02100200202	30	10	pcs.	Price on request
LMP 25/16	E11KM-02100200302	30	10	pcs.	Price on request
LMP 35/16	E11KM-02100200402	30	10	pcs.	Price on request
LMP 35/25	E11KM-02100200502	30	10	pcs.	Price on request
LMP 50/25	E11KM-02100200602	30	10	pcs.	Price on request
LMP 50/35	E11KM-02100200702	30	10	pcs.	Price on request
LMP 70/35	E11KM-02100200802	30	10	pcs.	Price on request
LMP 70/50	E11KM-02100200902	30	10	pcs.	Price on request
LMP 95/50	E11KM-02100201102	30	10	pcs.	Price on request
LMP 95/70	E11KM-02100201202	30	10	pcs.	Price on request
LMP 120/50	E11KM-02100201402	30	10	pcs.	Price on request
LMP 120/70	E11KM-02100201502	30	10	pcs.	Price on request
LMP 120/95	E11KM-02100201602	30	10	pcs.	Price on request
LMP 150/70	E11KM-02100201802	30	10	pcs.	Price on request
LMP 150/95	E11KM-02100201902	30	10	pcs.	Price on request
LMP 150/120	E11KM-02100202002	30	10	pcs.	Price on request
LMP 185/95	E11KM-02100202302	30	10	pcs.	Price on request
LMP 185/120	E11KM-02100202402	30	10	pcs.	Price on request
LMP 185/150	E11KM-02100202502	30	10	pcs.	Price on request
LMP 240/120	E11KM-02100202802	30	10	pcs.	Price on request
LMP 240/150	E11KM-02100202902	30	10	pcs.	Price on request
LMP 240/185	E11KM-02100203002	10	10	pcs.	Price on request

Selected lines: 0

Technical data

General data

Material	Cu
Surface	uncoated

Name	D	d₁	d₂	L	Cross-section, d₁ rm/sm [mm²]	Cross-section, d₂ rm/sm [mm²]	Socket code no.	Number of crimping - wide	Number of crimping - narrow
LMP 16/10	8,5	5,5	4,5	55	16	10	8	1 --	2-1
LMP 25/10	10,0	7,0	4,5	55	25	10	10	1 --	2-1
LMP 25/16	10,0	7,0	5,5	55	25	16	10	1-1	2-2
LMP 35/16	12,5	8,2	5,5	55	35	16	12	1 -1	2-2
LMP 35/25	12,5	8,2	7,0	55	35	25	12	1 -1	2-2
LMP 50/25	14,5	10,0	7,0	65	50	25	14	1-1	3-2
LMP 50/35	14,5	10,0	8,2	65	50	35	14	1-1	3-2
LMP 70/35	16,5	11,5	8,2	65	70	35	16	1-1	3-2
LMP 70/50	16,5	11,5	10,0	65	70	50	16	1-1	3-3
LMP 95/50	19,0	13,5	10,0	75	95	50	18	2-1	4-3
LMP 95/70	19,0	13,5	11,5	75	95	70	18	2-1	4-3
LMP 120/50	21,0	15,5	10,0	75	120	50	20	2-1	4-3
LMP 120/70	21,0	15,5	11,5	75	120	70	20	2-1	4-3
LMP 120/95	21,0	15,5	13,5	75	120	95	20	2-2	4-4
LMP 150/70	23,5	17,0	11,5	85	150	70	22	2-1	4-3
LMP 150/95	23,5	17,0	13,5	85	150	95	22	2-2	4-4
LMP 150/120	23,5	17,0	15,5	85	150	120	22	2-2	4-4
LMP 185/95	25,5	19,0	13,5	95	185	95	25	2-2	4-4
LMP 185/120	25,5	19,0	15,5	95	185	120	25	2-2	4-4
LMP 185/150	25,5	19,0	17,0	95	185	150	25	2-2	4-4
LMP 240/120	29,0	21,5	15,5	95	240	120	28	2-2	5 - 4
LMP 240/150	29,0	21,5	17,0	95	240	150	28	2-2	5 - 4
LMP 240/185	29,0	21,5	19,0	95	240	185	28	2-2	5 - 4

Guide

No data

Knowledge

No data

Downloads

Type	Name	Language	Updated at	Size	File type
Catalog card	ERGOM_Laczniki_rurowe_redukcyjne_z_przegroda_typu_LMP_EN.pdf	EN	04-07-2025	387.09 KB	PDF	Download
Catalog card	ERGOM_Laczniki_rurowe_redukcyjne_z_przegroda_typu_LMP_PL.pdf	PL	04-07-2025	430.88 KB	PDF	Download
