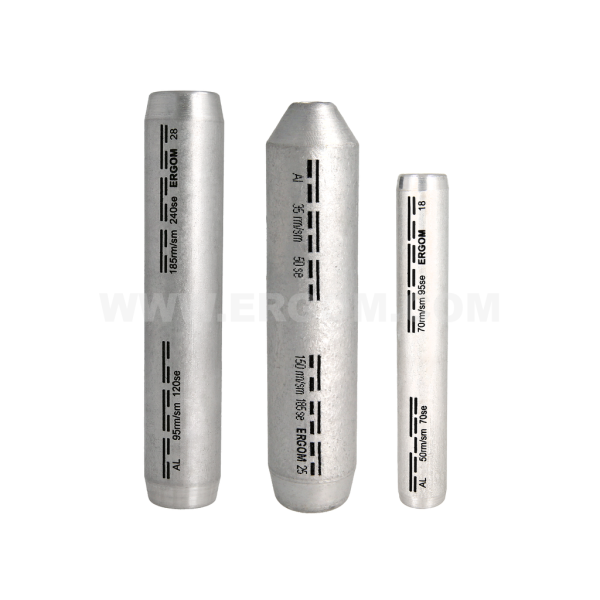

Non-tension compression reducing tubular cable connectors with barrier, LAWP…/… type

Non-tension compression reducing tubular cable connectors with barrier, LAWP…/… type

Main data of the product series

Product name
Non-tension compression reducing tubular cable connectors with barrier, LAWP…/… type
Category
Connectors
Surface
uncoated
Material
Al
Note!
- connectors are filled with special contact grease in tubular part ended with a plastic plug; - sector-shaped conductors must be rounded with special dies; - larger recommended number of crimps always refers to a larger inner diameter of the connector. Tin-plated version on request.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
LAWP 35/25 E12KA-01120400402 50 10 pcs. Price on request
LAWP 50/25 E12KA-01120400502 50 10 pcs. Price on request
LAWP 50/35 E12KA-01120400602 50 10 pcs. Price on request
LAWP 70/35 E12KA-01120400802 50 10 pcs. Price on request
LAWP 70/50 E12KA-01120400902 50 10 pcs. Price on request
LAWP 95/50 E12KA-01120401202 50 10 pcs. Price on request
LAWP 95/70 E12KA-01120401302 50 10 pcs. Price on request
LAWP 120/25 E12KA-01120401402 50 10 pcs. Price on request
LAWP 120/35 E12KA-01120401502 50 10 pcs. Price on request
LAWP 120/50 E12KA-01120401602 50 10 pcs. Price on request
LAWP 120/70 E12KA-01120401702 50 10 pcs. Price on request
LAWP 120/95 E12KA-01120401802 50 10 pcs. Price on request
LAWP 150/25 E12KA-01120401902 50 10 pcs. Price on request
LAWP 150/35 E12KA-01120402002 50 10 pcs. Price on request
LAWP 150/50 E12KA-01120402102 50 10 pcs. Price on request
LAWP 150/70 E12KA-01120402202 50 10 pcs. Price on request
LAWP 150/95 E12KA-01120402302 50 10 pcs. Price on request
LAWP 150/120 E12KA-01120402402 50 10 pcs. Price on request
LAWP 185/25 E12KA-01120402502 50 10 pcs. Price on request
LAWP 185/35 E12KA-01120402602 50 10 pcs. Price on request
LAWP 185/50 E12KA-01120402702 50 10 pcs. Price on request
LAWP 185/70 E12KA-01120402802 50 10 pcs. Price on request
LAWP 185/95 E12KA-01120402902 50 10 pcs. Price on request
LAWP 185/120 E12KA-01120403002 50 10 pcs. Price on request
LAWP 185/150 E12KA-01120403102 50 10 pcs. Price on request
LAWP 240/25 E12KA-01120403202 50 10 pcs. Price on request
LAWP 240/35 E12KA-01120403302 50 10 pcs. Price on request
LAWP 240/50 E12KA-01120403402 50 10 pcs. Price on request
LAWP 240/70 E12KA-01120403502 50 10 pcs. Price on request
LAWP 240/95 E12KA-01120403602 50 10 pcs. Price on request
LAWP 240/120 E12KA-01120403702 50 10 pcs. Price on request
LAWP 240/150 E12KA-01120403802 50 10 pcs. Price on request
LAWP 240/185 E12KA-01120403902 50 10 pcs. Price on request

Selected lines: 0

Technical data

General data

Material Al
Surface uncoated
Name D L d1 d2 Cross-section, d1 rm/sm [mm²] Cross-section, d1 re/se [mm²] Cross-section, d2 rm/sm [mm²] Cross-section, d2 re/se [mm²] Nr gniazda - 2 klasa (RM/RMC) Nr gniazda - 2 klasa (RMC) Number of crimping - wide Number of crimping - narrow
LAWP 35/25 14,0 100 8,0 6,8 35 50 25 35 14 MW35 2-2 5-4
LAWP 50/25 16,0 100 9,8 6,8 50 70 25 35 16 MW50 2-2 5-4
LAWP 50/35 16,0 100 9,8 8,0 50 70 35 50 16 MW50 2-2 5-5
LAWP 70/35 18,5 120 11,2 8,0 70 95 35 50 18 MW70 3-2 6-5
LAWP 70/50 18,5 120 11,2 9,8 70 95 50 70 18 MW70 3-2 6-5
LAWP 95/50 22,0 136 13,2 9,8 95 120 50 70 22 MW95 3-2 6-5
LAWP 95/70 22,0 136 13,2 11,2 95 120 70 95 22 MW95 3-3 6-5
LAWP 120/25 23,0 136 14,7 6,8 120 150 25 35 22 MW120 3-2 6-4
LAWP 120/35 23,0 136 14,7 8,0 120 150 35 50 22 MW120 3-2 6-5
LAWP 120/50 23,0 136 14,7 9,8 120 150 50 70 22 MW120 3-2 6-5
LAWP 120/70 23,0 136 14,7 11,2 120 150 70 95 22 MW120 3-3 6-6
LAWP 120/95 23,0 136 14,7 13,2 120 150 95 120 22 MW120 3-3 6-6
LAWP 150/25 25,0 150 16,3 6,8 150 185 25 35 25 MW150 3-2 6-4
LAWP 150/35 25,0 150 16,3 8,0 150 185 35 50 25 MW150 3-2 6-5
LAWP 150/50 25,0 150 16,3 9,8 150 185 50 70 25 MW150 3-2 6-5
LAWP 150/70 25,0 150 16,3 11,2 150 185 70 95 25 MW150 3-3 6-5
LAWP 150/95 25,0 150 16,3 13,2 150 185 95 120 25 MW150 3-3 6-6
LAWP 150/120 25,0 150 16,3 14,7 150 185 120 150 25 MW150 3-3 6-6
LAWP 185/25 28,5 150 18,3 6,8 185 240 25 35 28 MW185 3-2 6-4
LAWP 185/35 28,5 150 18,3 8,0 185 240 35 50 28 MW185 3-2 6-5
LAWP 185/50 28,5 150 18,3 9,8 185 240 50 70 28 MW185 3-2 6-5
LAWP 185/70 28,5 150 18,3 11,2 185 240 70 95 28 MW185 3-3 6-6
LAWP 185/95 28,5 150 18,3 13,2 185 240 95 120 28 MW185 3-3 6-6
LAWP 185/120 28,5 150 18,3 14,7 185 240 120 150 28 MW185 3-3 6-6
LAWP 185/150 28,5 150 18,3 16,3 185 240 150 185 28 MW185 3-3 6-6
LAWP 240/25 32,0 170 21,0 6,8 240 300 25 35 32 MW240 3-2 8-4
LAWP 240/35 32,0 170 21,0 8,0 240 300 35 50 32 MW240 3-2 8-5
LAWP 240/50 32,0 170 21,0 9,8 240 300 50 70 32 MW240 3-2 8-5
LAWP 240/70 32,0 170 21,0 11,2 240 300 70 95 32 MW240 3-3 8-6
LAWP 240/95 32,0 170 21,0 13,2 240 300 95 120 32 MW240 3-3 8-6
LAWP 240/120 32,0 170 21,0 14,7 240 300 120 150 32 MW240 3-3 8-6
LAWP 240/150 32,0 170 21,0 16,3 240 300 150 185 32 MW240 3-3 8-6
LAWP 240/185 32,0 170 21,0 18,3 240 300 185 240 32 MW240 3-3 8-6

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Laczniki_rurowe_redukcyjne_z_przegroda_typu_LAWP_…_…_EN.pdf EN 05-09-2025 359.1 KB PDF Download
Catalog card ERGOM_Laczniki_rurowe_redukcyjne_z_przegroda_typu_LAWP_…_…_PL.pdf PL 05-09-2025 377.8 KB PDF Download
