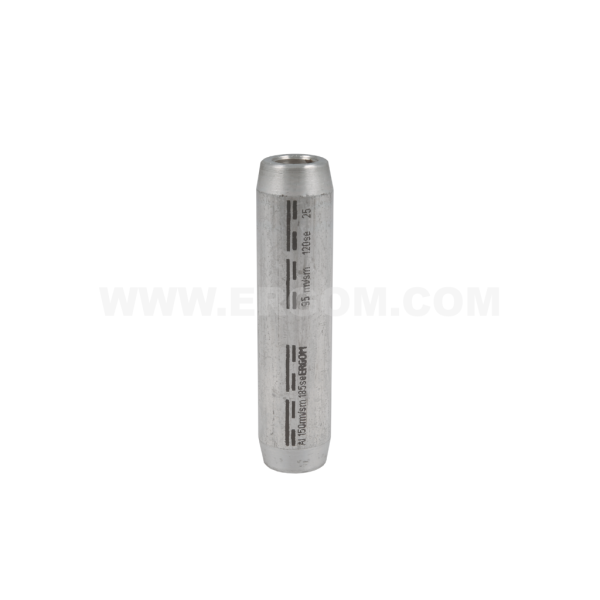

Non-tension compression reducing tubular cable connectors , LAW…/… type

Main data of the product series

Product name: Non-tension compression reducing tubular cable connectors , LAW…/… type
Category: Connectors
Surface: uncoated
Material: Al
Note!: - connectors are filled with special contact grease in tubular part ended with a plastic plug; - sector-shaped conductors must be rounded with special dies; - larger recommended number of crimps always refers to a larger inner diameter of the connector. Tin-plated version on request.

Name	Ergom index / your designation	Min. order quantity [uom]	Qty in package	Unit of measure [uom]	Catalogue price net per uom
LAW 35/25	E12KA-01110200402	50	10	pcs.	Price on request
LAW 50/25	E12KA-01110200502	50	10	pcs.	Price on request
LAW 50/35	E12KA-01110200602	50	10	pcs.	Price on request
LAW 70/35	E12KA-01110200702	50	10	pcs.	Price on request
LAW 70/50	E12KA-01110200802	50	10	pcs.	Price on request
LAW 95/50	E12KA-01110201002	50	10	pcs.	Price on request
LAW 95/70	E12KA-01110201102	50	10	pcs.	Price on request
LAW 120/50	E12KA-01110201302	50	10	pcs.	Price on request
LAW 120/70	E12KA-01110201402	50	10	pcs.	Price on request
LAW 120/95	E12KA-01110201502	50	10	pcs.	Price on request
LAW 150/95	E12KA-01110201602	50	10	pcs.	Price on request
LAW 150/120	E12KA-01110201802	50	10	pcs.	Price on request
LAW 185/120	E12KA-01110202102	50	10	pcs.	Price on request
LAW 185/150	E12KA-01110202202	50	10	pcs.	Price on request
LAW 240/150	E12KA-01110202302	50	10	pcs.	Price on request
LAW 240/185	E12KA-01110202602	50	10	pcs.	Price on request
LAW 300/185	E12KA-01110202700	10	1	pcs.	Price on request
LAW 300/240	E12KA-01110202800	10	1	pcs.	Price on request
LAW 400/240	E12KA-01110202900	10	1	pcs.	Price on request
LAW 400/300	E12KA-01110203000	10	1	pcs.	Price on request

Selected lines: 0

Material	Al
Surface	uncoated

Name	D	L	d₁	d₂	Cross-section, d₁ rm/sm [mm²]	Cross-section, d₁ re/se [mm²]	Cross-section, d₂ rm/sm [mm²]	Cross-section, d₂ re/se [mm²]	Nr gniazda - 2 klasa (RM/RMC)	Nr gniazda - 2 klasa (RMC)	Number of crimping - wide	Number of crimping - narrow
LAW 35/25	14,0	90	8,0	6,8	35	50	25	35	14	MW35	2-2	4-4
LAW 50/25	16,0	90	9,8	6,8	50	70	25	35	16	MW50	2-2	4-4
LAW 50/35	16,0	90	9,8	8,0	50	70	35	50	16	MW50	2-2	4-4
LAW 70/35	18,5	95	11,2	8,0	70	95	35	50	18	MW70	2-2	4-4
LAW 70/50	18,5	95	11,2	9,8	70	95	50	70	18	MW70	2-2	4-4
LAW 95/50	22,5	100	13,2	9,8	95	120	50	70	22	MW95	2-2	4-4
LAW 95/70	22,5	100	13,2	11,2	95	120	70	95	22	MW95	2-2	4-4
LAW 120/50	23,0	105	14,7	9,8	120	150	50	70	22	MW120	2-2	4-4
LAW 120/70	23,0	105	14,7	11,2	120	150	70	95	22	MW120	2-2	4-4
LAW 120/95	23,0	105	14,7	13,2	120	150	95	120	22	MW120	2-2	4-4
LAW 150/95	25,0	105	16,3	13,2	150	185	95	120	25	MW150	2-2	4-4
LAW 150/120	25,0	105	16,3	14,7	150	185	120	150	25	MW150	2-2	4-4
LAW 185/120	28,5	125	18,3	14,7	185	240	120	150	28	MW185	2-2	5-4
LAW 185/150	28,5	125	18,3	16,3	185	240	150	185	28	MW185	2-2	5-4
LAW 240/150	32,0	125	21,0	16,3	240	300	150	185	32	MW240	2-2	5-4
LAW 240/185	32,0	125	21,0	18,3	240	300	185	240	32	MW240	2-2	5-5
LAW 300/185	34,0	125	23,4	18,3	300	-	185	240	34	MW300	2-2	5-5
LAW 300/240	34,0	125	23,4	21,0	300	-	240	300	34	MW300	2-2	5-5
LAW 400/240	38,5	150	26.0	21,0	400	-	240	300	38	-	3-3	-
LAW 400/300	38,5	150	26.0	23,6	400	-	300	-	38	-	3-3	-
