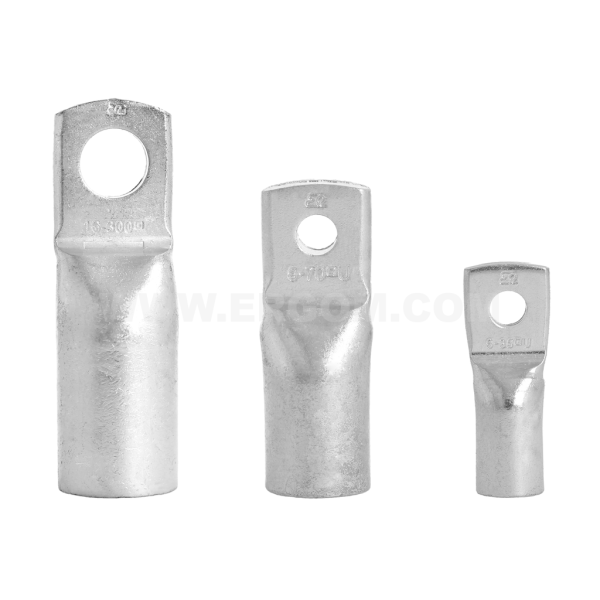

"Narrowed" tubular ring cable lugs, KORW type

"Narrowed" tubular ring cable lugs, KORW type

Main data of the product series

Product name
"Narrowed" tubular ring cable lugs, KORW type
Category
Ring
Surface
tin-plated
Material
Cu
Note!
Sector-shaped conductors must be rounded with special dies. For crimping cable lugs on cables of 5 class conductors, we recommend crimping in a "hexagon with fangs" using KP22-FL type dies.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
KORW 25/6 E11KM-01020700802 10 10 pcs. Price on request
KORW 35/6 E11KM-01020700902 10 10 pcs. Price on request
KORW 35/8 E11KM-01020700952 10 10 pcs. Price on request
KORW 50/6 E11KM-01020701202 10 10 pcs. Price on request
KORW 50/8 E11KM-01020701252 10 10 pcs. Price on request
KORW 50/10 E11KM-01020701302 10 10 pcs. Price on request
KORW 70/6 E11KM-01020701552 10 10 pcs. Price on request
KORW 70/8 E11KM-01020701602 10 10 pcs. Price on request
KORW 70/10 E11KM-01020701652 10 10 pcs. Price on request
KORW 70/12 E11KM-01020701702 10 10 pcs. Price on request
KORW 95/6 E11KM-01020701900 10 10 pcs. Price on request
KORW 95/8 E11KM-01020701950 10 10 pcs. Price on request
KORW 95/10 E11KM-01020702000 10 10 pcs. Price on request
KORW 95/12 E11KM-01020702050 10 10 pcs. Price on request
KORW 120/6 E11KM-01020702250 10 10 pcs. Price on request
KORW 120/8 E11KM-01020702300 10 10 pcs. Price on request
KORW 120/10 E11KM-01020702350 10 10 pcs. Price on request
KORW 120/12 E11KM-01020702400 10 10 pcs. Price on request
KORW 150/6 E11KM-01020702600 10 10 pcs. Price on request
KORW 150/8 E11KM-01020702650 10 10 pcs. Price on request
KORW 150/10 E11KM-01020702700 10 10 pcs. Price on request
KORW 150/12 E11KM-01020702750 10 10 pcs. Price on request
KORW 185/8 E11KM-01020702950 10 10 pcs. Price on request
KORW 185/10 E11KM-01020703000 10 10 pcs. Price on request
KORW 185/12 E11KM-01020703050 10 10 pcs. Price on request
KORW 185/16 E11KM-01020703150 10 10 pcs. Price on request
KORW 240/8 E11KM-01020703300 10 10 pcs. Price on request
KORW 240/10 E11KM-01020703350 10 10 pcs. Price on request
KORW 240/12 E11KM-01020703450 10 10 pcs. Price on request
KORW 240/16 E11KM-01020703500 10 10 pcs. Price on request
KORW 300/10 E11KM-01020704500 10 10 pcs. Price on request
KORW 300/12 E11KM-01020704600 10 10 pcs. Price on request
KORW 300/16 E11KM-01020704700 10 10 pcs. Price on request

Selected lines: 0

Technical data

General data

Material Cu
Surface tin-plated
Normy EN IEC 61238-1-1:2019 EN IEC 61238-1-3:2019 - mechanical strength Class 1 - short-circuit resistance Class A for range of rated cross-section 25-240mm
Certyfikat UL E475284 (according to table in the technical data sheet)
Wykonanie standard
Name Screw hole UL d D d1 a c1 c2 E W Cross-section, rm/sm [mm²] Socket code no. - 2 class Socket code no. - 5 class Number of crimping - wide Number of crimping - narrow
KORW 25/6 M6 √ 7 10 6,5 15 7,0 7,0 29,5 10 25 10 FL25 1 2
KORW 35/6 M6 √ 8,5 12 6,5 17 8,0 8,0 33 15 35 12 FL35 1 2
KORW 35/8 M8 √ 8,5 12 8,5 17 8,0 8,0 35 15 35 12 FL35 1 2
KORW 50/6 M6 √ 10 14 6,5 19 8,0 9,0 37 15 50 14 FL50 1 2
KORW 50/8 M8 √ 10 14 8,5 19 10,0 11,0 39 17 50 14 FL50 1 2
KORW 50/10 M10 √ 10 14 10,5 19 12,0 13,0 41 17 50 14 FL50 1 2
KORW 70/6 M6 √ 12 16,5 6,5 21 8,0 9,5 41 17 70 16 FL70 1 2
KORW 70/8 M8 √ 12 16,5 8,5 21 10,0 11,5 43 17 70 16 FL70 1 2
KORW 70/10 M10 √ 12 16,5 10,5 21 12,0 13,5 45 17 70 16 FL70 1 2
KORW 70/12 M12 √ 12 16,5 13 21 12,0 14,5 46 19 70 16 FL70 1 2
KORW 95/6 M6 √ 13,5 18 6,5 23 8,0 9,5 43 19 95 17 FL95 1 2
KORW 95/8 M8 √ 13,5 18 8,5 23 10,0 11,5 45 19 95 17 FL95 1 2
KORW 95/10 M10 √ 13,5 18 10,5 23 12,0 13,5 47 19 95 17 FL95 1 2
KORW 95/12 M12 √ 13,5 18 13 23 12,0 14,5 48 19 95 17 FL95 1 2
KORW 120/6 M6 √ 15 19,5 6,5 26 8,0 9,0 49 20 120 19 FL120 1 3
KORW 120/8 M8 √ 15 19,5 8,5 26 10,0 11,0 51 20 120 19 FL120 1 3
KORW 120/10 M10 √ 15 19,5 10,5 26 12,0 13,0 53 20 120 19 FL120 1 3
KORW 120/12 M12 √ 15 19,5 13 26 12,0 14,0 54 20 120 19 FL120 1 3
KORW 150/6 M6 √ 16,5 21 6,5 29 8,0 9,0 52 20 150 20 FL150 2 3
KORW 150/8 M8 √ 16,5 21 8,5 29 10,0 11,0 54 20 150 20 FL150 2 3
KORW 150/10 M10 √ 16,5 21 10,5 29 12,0 13,0 56 20 150 20 FL150 2 3
KORW 150/12 M12 √ 16,5 21 13 29 12,0 14,0 57 20 150 20 FL150 2 3
KORW 185/8 M8 √ 19 24 8,5 30 10,0 12,0 58 26 185 23 FL185 2 3
KORW 185/10 M10 √ 19 24 10,5 30 12,0 14,0 60 26 185 23 FL185 2 3
KORW 185/12 M12 √ 19 24 13 30 12,0 14,0 60 26 185 23 FL185 2 3
KORW 185/16 M16 √ 19 24 17 30 16,0 18,0 64 26 185 23 FL185 2 3
KORW 240/8 M8 √ 21 26 8,5 35 10,0 12,0 63 30 240 25 FL240 2 4
KORW 240/10 M10 √ 21 26 10,5 35 12,0 14,0 65 30 240 25 FL240 2 4
KORW 240/12 M12 √ 21 26 13 35 12,0 14,0 65 30 240 25 FL240 2 4
KORW 240/16 M16 √ 21 26 17 35 16,0 18,0 69 30 240 25 FL240 2 4
KORW 300/10 M10 − 24 30 10,5 42 12,0 13,0 76 30 300 28 FL300 2 6
KORW 300/12 M12 − 24 30 13 42 12,0 16,0 79 30 300 28 FL300 2 6
KORW 300/16 M16 − 24 30 17 42 16,0 18,0 81 30 300 28 FL300 2 6
