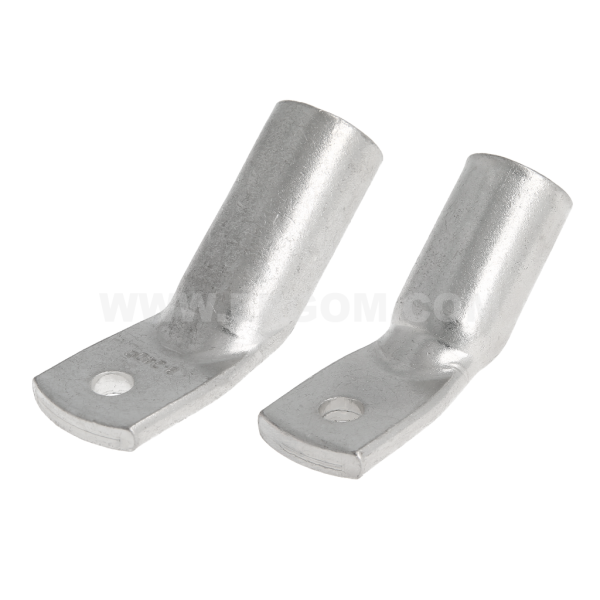

"Narrowed" tubular angle ring cable lugs, K45RW type

"Narrowed" tubular angle ring cable lugs, K45RW type

Main data of the product series

Product name
"Narrowed" tubular angle ring cable lugs, K45RW type
Category
Angular
Surface
tin-plated

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
K45RW 25/6 E11KM-01020900800 25 25 pcs. Price on request
K45RW 35/6 E11KM-01020900900 25 25 pcs. Price on request
K45RW 35/8 E11KM-01020900950 25 25 pcs. Price on request
K45RW 50/6 E11KM-01020901200 25 25 pcs. Price on request
K45RW 50/8 E11KM-01020901250 25 25 pcs. Price on request
K45RW 50/10 E11KM-01020901300 25 25 pcs. Price on request
K45RW 70/6 E11KM-01020901550 25 25 pcs. Price on request
K45RW 70/8 E11KM-01020901600 25 25 pcs. Price on request
K45RW 70/10 E11KM-01020901650 25 25 pcs. Price on request
K45RW 70/12 E11KM-01020901700 25 25 pcs. Price on request
K45RW 95/6 E11KM-01020901900 10 10 pcs. Price on request
K45RW 95/8 E11KM-01020901950 10 10 pcs. Price on request
K45RW 95/10 E11KM-01020902000 10 10 pcs. Price on request
K45RW 95/12 E11KM-01020902050 10 10 pcs. Price on request
K45RW 120/6 E11KM-01020902250 10 10 pcs. Price on request
K45RW 120/8 E11KM-01020902300 10 10 pcs. Price on request
K45RW 120/10 E11KM-01020902350 10 10 pcs. Price on request
K45RW 120/12 E11KM-01020902400 10 10 pcs. Price on request
K45RW 150/6 E11KM-01020902600 10 10 pcs. Price on request
K45RW 150/8 E11KM-01020902650 10 10 pcs. Price on request
K45RW 150/10 E11KM-01020902700 10 10 pcs. Price on request
K45RW 150/12 E11KM-01020902750 10 10 pcs. Price on request
K45RW 185/8 E11KM-01020902950 10 10 pcs. Price on request
K45RW 185/10 E11KM-01020903000 10 10 pcs. Price on request
K45RW 185/12 E11KM-01020903050 10 10 pcs. Price on request
K45RW 185/16 E11KM-01020903150 10 10 pcs. Price on request
K45RW 240/8 E11KM-01020903300 10 10 pcs. Price on request
K45RW 240/10 E11KM-01020903350 10 10 pcs. Price on request
K45RW 240/12 E11KM-01020903450 10 10 pcs. Price on request
K45RW 240/16 E11KM-01020903500 10 10 pcs. Price on request

Selected lines: 0

Technical data

General data

Material Cu
Surface tin-plated
Wykonanie standard
Name Screw hole d D a c1 c2 W Cross-section, rm/sm [mm²] Socket code no. - 2 class Socket code no. - 5 class Number of crimping - wide Number of crimping - narrow
K45RW 25/6 M6 7 10 15 7,5 10,0 10 25 10 FL25 1 2
K45RW 35/6 M6 8,5 12 17 7,5 10,0 15 35 12 FL35 1 2
K45RW 35/8 M8 8,5 12 17 9,0 13,0 15 35 12 FL35 1 2
K45RW 50/6 M6 10 14 19 7,5 10,0 15 50 14 FL50 1 2
K45RW 50/8 M8 10 14 19 9,0 13,0 17 50 14 FL50 1 2
K45RW 50/10 M10 10 14 19 11,0 15,0 17 50 14 FL50 1 2
K45RW 70/6 M6 12 16,5 21 7,5 10,0 17 70 16 FL70 1 2
K45RW 70/8 M8 12 16,5 21 9,0 13,0 17 70 16 FL70 1 2
K45RW 70/10 M10 12 16,5 21 11,0 15,0 17 70 16 FL70 1 2
K45RW 70/12 M12 12 16,5 21 12,0 15,0 19 70 16 FL70 1 2
K45RW 95/6 M6 13,5 18 24 7,5 10,0 19 95 17 FL95 1 2
K45RW 95/8 M8 13,5 18 24 12,0 16,0 19 95 17 FL95 1 2
K45RW 95/10 M10 13,5 18 24 12,0 17,0 19 95 17 FL95 1 2
K45RW 95/12 M12 13,5 18 24 12,0 18,0 19 95 17 FL95 1 2
K45RW 120/6 M6 15 19,5 26 7,5 10,0 20 120 19 FL120 1 2
K45RW 120/8 M8 15 19,5 26 12,0 16,0 20 120 19 FL120 1 2
K45RW 120/10 M10 15 19,5 26 12,0 17,0 20 120 19 FL120 1 2
K45RW 120/12 M12 15 19,5 26 12,0 18,0 20 120 19 FL120 1 2
K45RW 150/6 M6 16,5 21 30 7,5 10,0 20 150 20 FL150 1 2
K45RW 150/8 M8 16,5 21 30 12,0 16,0 20 150 20 FL150 1 2
K45RW 150/10 M10 16,5 21 30 12,0 17,0 20 150 20 FL150 1 2
K45RW 150/12 M12 16,5 21 30 12,0 18,0 20 150 20 FL150 1 2
K45RW 185/8 M8 19 24 30 12,0 16,0 26 185 23 FL185 2 4
K45RW 185/10 M10 19 24 30 14,0 22,0 26 185 23 FL185 2 4
K45RW 185/12 M12 19 24 30 14,0 22,0 26 185 23 FL185 2 4
K45RW 185/16 M16 19 24 30 16,0 22,0 26 185 23 FL185 2 4
K45RW 240/8 M8 21 26 38 12,0 16,0 30 240 25 FL240 2 4
K45RW 240/10 M10 21 26 38 14,0 22,0 30 240 25 FL240 2 4
K45RW 240/12 M12 21 26 38 14,0 22,0 30 240 25 FL240 2 4
K45RW 240/16 M16 21 26 38 16,0 22,0 30 240 25 FL240 2 4

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Koncowki_kablowe_katowe_oczkowe_rurowe_zwezone_typu_K45RW_EN.pdf EN 04-07-2025 290.66 KB PDF Download
Catalog card ERGOM_Koncowki_kablowe_katowe_oczkowe_rurowe_zwezone_typu_K45RW_PL.pdf PL 04-07-2025 330.91 KB PDF Download
