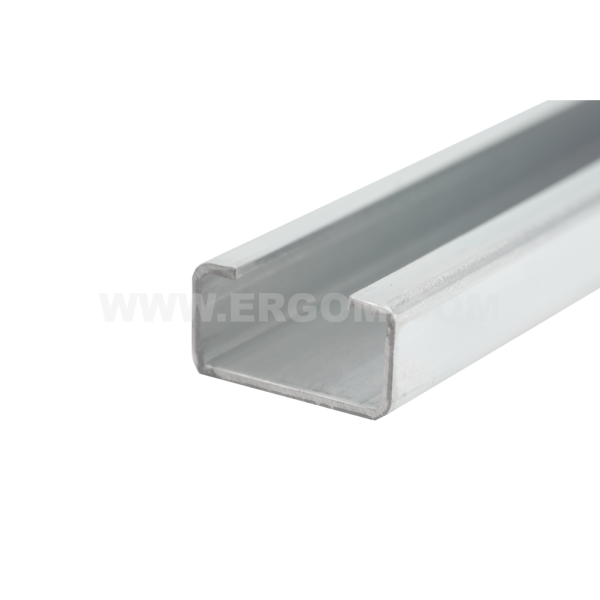

Mounting rail, C 30

Mounting rail, C 30

Main data of the product series

Product name: Mounting rail, C 30
Category: Mounting rails, TSE and C type
Standards: rails are according to EN60715:2007 standard

Features and benefits

Product description

-

Offer

Name	Ergom index / your designation	Min. order quantity [uom]	Qty in package	Unit of measure [uom]	Catalogue price net per uom	Quantity [uom]
C30/15/1	R34RR-05020200181	2	1	pcs.	Price on request
C30/15/2	R34RR-05020200201	1	1	pcs.	Price on request

Selected lines: 0

Technical data

General data

Material	galvanized steel
Cross-section for non-perforated rails [mm²]	100
A	30
B	16
C	15
D	1,5
E	4,2
F	6
G	3
Normy	rails are according to EN60715:2007 standard

Name	Perforation	Length [m]
C30/15/1	yes	1
C30/15/2	no	2

Guide

No data

Knowledge

No data

Downloads

Type	Name	Language	Updated at	Size	File type
Catalog card	ERGOM_Szyna_montazowa_C_30_EN.pdf	EN	15-05-2025	193.78 KB	PDF	Download
Catalog card	ERGOM_Szyna_montazowa_C_30_PL.pdf	PL	15-05-2025	235.13 KB	PDF	Download
