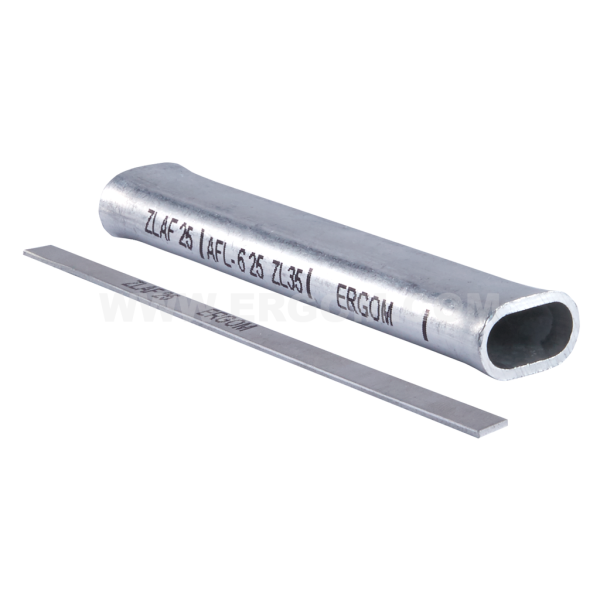

Mechanically loadable connectors with spacer for AFL overhead power line, ZLAF type

Main data of the product series

Product name: Mechanically loadable connectors with spacer for AFL overhead power line, ZLAF type
Category: For crimping
Surface: uncoated
Material: Al.
Note!: INSTALLATION INSTRUCTIONS: The wires are connected using the so-called "overlap" by mechanically pressing the connector. Insert the connected wires into the connector so that they protrude the same length on both sides. Before crimping, insert the aluminum spacer attached to the connector between the wires so that it protrudes the same length on both sides of the connector. Pressing should be done in the places marked on the connector using a die type KP22-ZL... with the socket size and quantity in accordance with the table below. Crimping is performed alternately, starting from the central marking and moving to the outside of the connector.

Features and benefits

Product description

Offer

Name	Ergom index / your designation	Min. order quantity [uom]	Qty in package	Unit of measure [uom]	Catalogue price net per uom
ZLAF 25	E12KA-01140200202	10	10	pcs.	Price on request
ZLAF 35	E12KA-01140200302	10	10	pcs.	Price on request
ZLAF 50	E12KA-01140200402	10	10	pcs.	Price on request
ZLAF 70	E12KA-01140200502	10	10	pcs.	Price on request

Selected lines: 0

Technical data

General data

Material	Al.
Surface	uncoated
g	1,5
Normy	PN-EN 61284:2002 - meet the tensile test requirements specified in point 11.5.1
Wykonanie	BN-86/0325-29 - dimension only

Name	L	s	a	b	D1	D2	G	l	Socket code no.	Number of notches on one side
ZLAF 25	112	6,5	32	32	16,5	7,5	2	140	ZL 35	3
ZLAF 35	130	8	37	37	19	9	2	160	ZL 50	3
ZLAF 50	184	9	41	41	22	10,5	2	220	ZL 70	4
ZLAF 70	205	11	46	46	26	12,5	2,5	240	ZL 95	4
