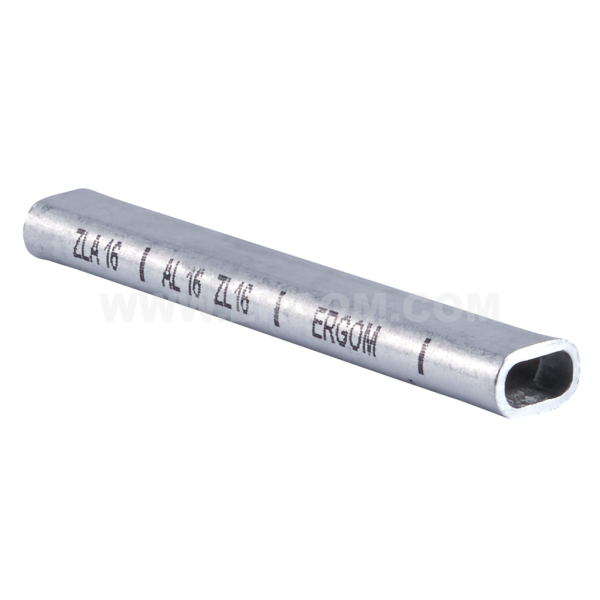

Mechanically loadable connectors for AL overhead power lines, ZLA type

Mechanically loadable connectors for AL overhead power lines, ZLA type

Main data of the product series

Product name
Mechanically loadable connectors for AL overhead power lines, ZLA type
Category
For crimping
Surface
uncoated
Material
Al.
Note!
Terminals designed for crimping by “goffering”.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
ZLA 25 E12KA-01140100202 50 10 pcs. Price on request
ZLA 35 E12KA-01140100302 50 10 pcs. Price on request
ZLA 50 E12KA-01140100402 50 10 pcs. Price on request
ZLA 70 E12KA-01140100502 50 10 pcs. Price on request
ZLA 95 E12KA-01140100602 50 10 pcs. Price on request

Selected lines: 0

Technical data

General data

Material Al.
Surface uncoated
Normy PN-EN 61284:2002 - class A, mechanically loadable connector - short-circuit test on class A connections in accordance with point 13.5.3.1
Wykonanie DIN 48217 - dimension only
Name L d1 d2 Nominal cross-section, rm [mm2] Socket code no. Number of notches on one side
ZLA 25 112 14,0 7,0 25 ZL 25 3
ZLA 35 126 16,0 8,0 35 ZL 35 3
ZLA 50 180 19,5 10,0 50 ZL 50 4
ZLA 70 198 22,5 11,5 70 ZL 70 4
ZLA 95 264 26,5 13,5 95 ZL 95 5

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Zlaczki_do_linii_napowietrznych_obciazalne_mechanicznie_typu_ZLA_EN.pdf EN 04-07-2025 269.66 KB PDF Download
Catalog card ERGOM_Zlaczki_do_linii_napowietrznych_obciazalne_mechanicznie_typu_ZLA_PL.pdf PL 04-07-2025 309.68 KB PDF Download
