Manual punching die, WK...

Manual punching die, WK...

Main data of the product series

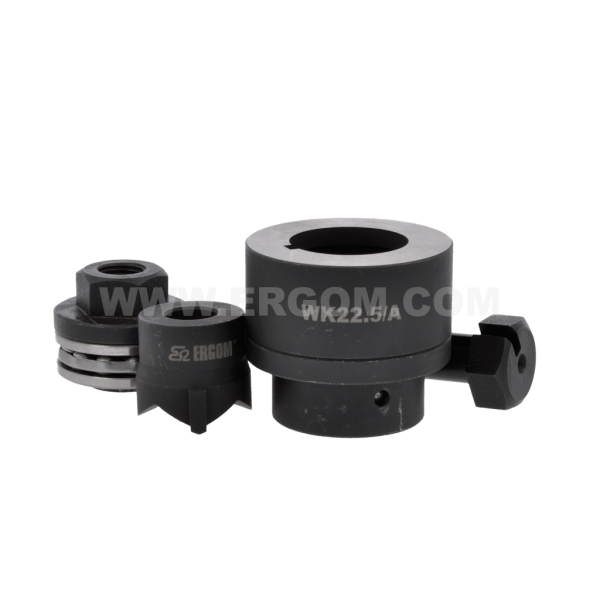

Product name: Manual punching die, WK...
Category: Manual punching dies
Note!: Other sizes available on request.

Features and benefits

Product description

-

Offer

Name	Ergom index / your designation	Min. order quantity [uom]	Qty in package	Unit of measure [uom]	Catalogue price net per uom	Quantity [uom]
WK 22,5/A	E06WD-01020300100	1	1	pcs.	Price on request
WK 30,5/A	E06WD-01020300200	1	1	pcs.	Price on request
WK 22,5/B	E06WD-01020300300	1	1	pcs.	Price on request
WK 22,5/C	E06WD-01020300400	1	1	pcs.	Price on request

Selected lines: 0

Technical data

Name	Spanner size	Central hole diameter [mm]	Draw screw	Design	A	B
WK 22,5/A	17	10,5÷11	M10 x 11-80	A	22,5	3,0
WK 30,5/A	22	16,5÷17	M16 x 1-100	A	30,5	3,0
WK 22,5/B	17	10,5÷11	M10 x 10-80	B	18,5	22,5
WK 22,5/C	17	10,5÷11	M10 x 10-80	C	20,1	22,5

Guide

Manual punching die, WK...

Knowledge

No data

Downloads

Type	Name	Language	Updated at	Size	File type
Catalog card	ERGOM_Wycinak_reczny_WK_EN.pdf	EN	14-05-2025	165.41 KB	PDF	Download
Catalog card	ERGOM_Wycinak_reczny_WK_PL.pdf	PL	14-05-2025	207.25 KB	PDF	Download
