Manual punching die, SQ...

Manual punching die, SQ...

Main data of the product series

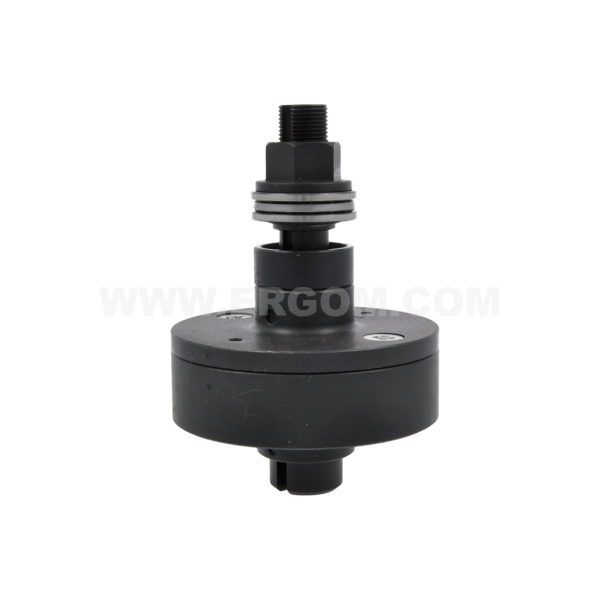

Product name: Manual punching die, SQ...
Category: Manual punching dies
Note!: Other sizes available on request.

Features and benefits

Product description

-

Offer

Name	Ergom index / your designation	Min. order quantity [uom]	Qty in package	Unit of measure [uom]	Catalogue price net per uom	Quantity [uom]
SQ2-22,2x45-Wycinak prostokątny	E06WD-01020200100	1	1	pcs.	Price on request
SQ2-22x68-Wycinak prostokątny	E06WD-01020200200	1	1	pcs.	Price on request
SQ 22*98	E06WD-01020200300	1	1	pcs.	Price on request
SQ1-30-Wycinak kwadratowy	E06WD-01020200500	1	1	pcs.	Price on request
SQ2-35x92-Wycinak prostokątny	E06WD-01020200600	1	1	pcs.	Price on request
SQ1-45-Wycinak kwadratowy	E06WD-01020200800	1	1	pcs.	Price on request
SQ 45*92	E06WD-01020200900	1	1	pcs.	Price on request
SQ1-50-Wycinak kwadratowy	E06WD-01020201100	1	1	pcs.	Price on request
SQ1-54-Wycinak kwadratowy	E06WD-01020201200	1	1	pcs.	Price on request
SQ1-66-Wycinak kwadratowy	E06WD-01020201300	1	1	pcs.	Price on request
SQ1-68-Wycinak kwadratowy	E06WD-01020201400	1	1	pcs.	Price on request
SQ2-92-Wycinak kwadratowy	E06WD-01020201500	1	1	pcs.	Price on request

Selected lines: 0

Technical data

Name	Spanner size	Central hole diameter [mm]	A	B
SQ2-22,2x45-Wycinak prostokątny	17	10,5÷11	22,2	45
SQ2-22x68-Wycinak prostokątny	17	10,5÷11	22	68
SQ 22*98	17	10,5÷11	22	92
SQ1-30-Wycinak kwadratowy	27	20,5÷21	30	30
SQ2-35x92-Wycinak prostokątny	27	20,5÷21	35	92
SQ1-45-Wycinak kwadratowy	27	20,5÷21	45	45
SQ 45*92	27	20,5÷21	45	92
SQ1-50-Wycinak kwadratowy	27	20,5÷21	50	50
SQ1-54-Wycinak kwadratowy	27	20,5÷21	54	54
SQ1-66-Wycinak kwadratowy	27	20,5÷21	66	66
SQ1-68-Wycinak kwadratowy	27	20,5÷21	68	68
SQ2-92-Wycinak kwadratowy	27	20,5÷21	92	92

Guide

Manual punching die, SQ...

Knowledge

No data

Downloads

Type	Name	Language	Updated at	Size	File type
Catalog card	ERGOM_Wycinak_reczny_SQ_EN.pdf	EN	14-05-2025	151.13 KB	PDF	Download
Catalog card	ERGOM_Wycinak_reczny_SQ_PL.pdf	PL	14-05-2025	191.8 KB	PDF	Download
