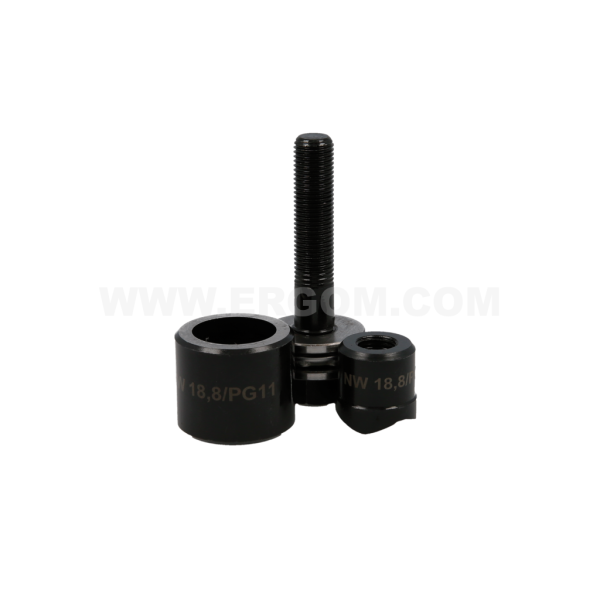

Manual punching die, NW...

Manual punching die, NW...

Main data of the product series

Product name: Manual punching die, NW...
Category: Manual punching dies
Note!: Other sizes available on request.

Features and benefits

Product description

-

Offer

Name	Ergom index / your designation	Min. order quantity [uom]	Qty in package	Unit of measure [uom]	Catalogue price net per uom	Quantity [uom]
NW 15,4/PG9	E06WD-01020110100	1	1	pcs.	Price on request
NW 28,6/PG21	E06WD-01020110700	1	1	pcs.	Price on request
NW 37,4/PG29	E06WD-01020110800	1	1	pcs.	Price on request
NW 47,5/PG36	E06WD-01020110900	1	1	pcs.	Price on request
NW 54,5/PG42	E06WD-01020111000	1	1	pcs.	Price on request
NW 59,8/PG48	E06WD-01020111100	1	1	pcs.	Price on request

Selected lines: 0

Technical data

Name	Spanner size	Internal thread of the punch K	Diameter of the hole to be cut A [mm]	Diameter of the through hole D [mm]
NW 15,4/PG9	17	3/8" UNF	15,4	9,55
NW 28,6/PG21	17	3/8" UNF	28,6	9,55
NW 37,4/PG29	27	3/4" UNF	37,4	19,05
NW 47,5/PG36	27	3/4" UNF	47,5	19,05
NW 54,5/PG42	27	3/4" UNF	54,5	19,05
NW 59,8/PG48	27	3/4" UNF	59,8	19,05

Guide

Manual punching die, NW...

Knowledge

No data

Downloads

Type	Name	Language	Updated at	Size	File type
Catalog card	ERGOM_Wycinak_reczny_NW_EN.pdf	EN	30-05-2025	170.42 KB	PDF	Download
Catalog card	ERGOM_Wycinak_reczny_NW_PL.pdf	PL	30-05-2025	211.6 KB	PDF	Download
