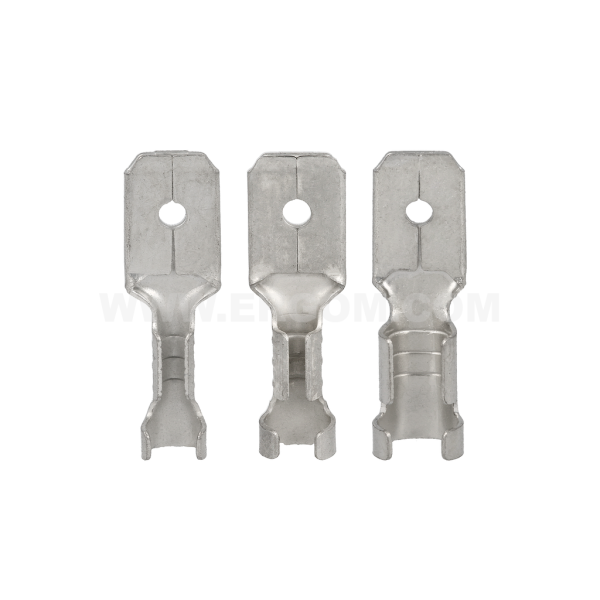

Male push on connectors, WR type

Male push on connectors, WR type

Main data of the product series

Product name: Male push on connectors, WR type
Category: Male push-on connectors
Surface: tin-plated
Material: brass

Features and benefits

Product description

-

Offer

Name	Ergom index / your designation	Min. order quantity [uom]	Qty in package	Unit of measure [uom]	Catalogue price net per uom	Quantity [uom]
WR 6,3-1/0,8	E10KN-01020300101	1	100	pkt.	Price on request
WR 6,3-2,5/0,8	E10KN-01020300201	1	100	pkt.	Price on request
WR 6,3-6/0,8	E10KN-01020300301	1	100	pkt.	Price on request

Selected lines: 0

Technical data

General data

Material	brass
Surface	tin-plated
Size	6,3 x 0,8
s	0,38
L₁	20,0
L₂	8,0
a₁	8,5
a₂	5,0

Name	b₁	b₂	h₁	h₂	Cross-section [mm²]
WR 6,3-1/0,8	1,5	2,3	2,7	4,0	0,5÷1
WR 6,3-2,5/0,8	1,4	2,8	3,2	4,5	1,5÷2,5
WR 6,3-6/0,8	3,2	3,3	5,2	6,5	4÷6

Guide

No data

Knowledge

No data

Downloads

Type	Name	Language	Updated at	Size	File type
Catalog card	ERGOM_Wsuwki_konektorowe_typu_WR_EN.pdf	EN	04-07-2025	225.79 KB	PDF	Download
Catalog card	ERGOM_Wsuwki_konektorowe_typu_WR_PL.pdf	PL	04-07-2025	268.81 KB	PDF	Download
