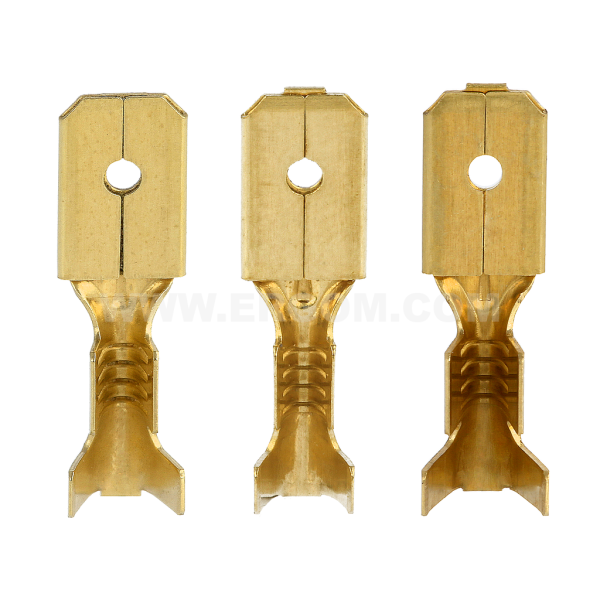

Male push-on connectors, W...NC type

Male push-on connectors, W...NC type

Main data of the product series

Product name: Male push-on connectors, W...NC type
Category: Male push-on connectors
Surface: uncoated
Material: brass

Features and benefits

Product description

-

Offer

Name	Ergom index / your designation	Min. order quantity [uom]	Qty in package	Unit of measure [uom]	Catalogue price net per uom	Quantity [uom]
W 6,3-1/0,8 NC	E10KN-01020200401	1	100	pkt.	Price on request
W 6,3-2,5/0,8 NC	E10KN-01020200501	1	100	pkt.	Price on request
W 6,3-6/0,8 NC	E10KN-01020200601	1	100	pkt.	Price on request

Selected lines: 0

Technical data

General data

Material	brass
Surface	uncoated
Size	6,3 x 0,8
s	0,38
L₁	21,0
L₂	9,5
a₁	8,5
a₂	4,6

Name	w₁	w₂	Cross-section [mm²]
W 6,3-1/0,8 NC	3,0	4,5	0,5÷1
W 6,3-2,5/0,8 NC	3,8	5,5	1,5÷2,5
W 6,3-6/0,8 NC	4,2	6,0	4÷6

Guide

No data

Knowledge

No data

Downloads

Type	Name	Language	Updated at	Size	File type
Catalog card	ERGOM_Wsuwki_konektorowe_typu_W_NC_EN.pdf	EN	04-07-2025	216.62 KB	PDF	Download
Catalog card	ERGOM_Wsuwki_konektorowe_typu_W_NC_PL.pdf	PL	04-07-2025	260.68 KB	PDF	Download
