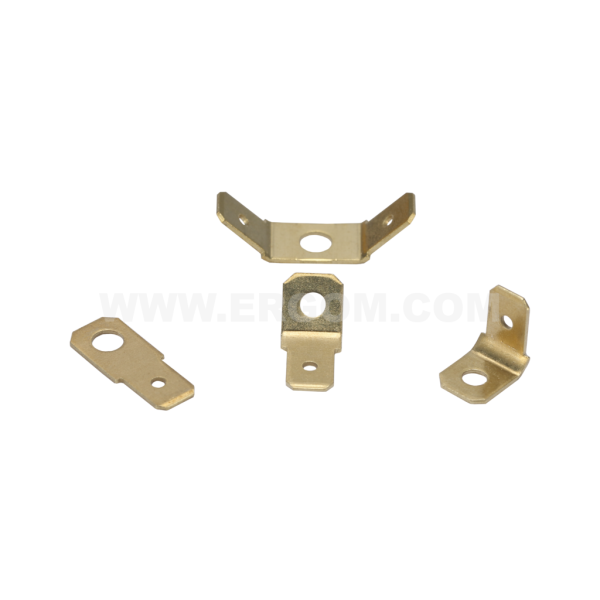

Male connectors, WX, WXW type

Male connectors, WX, WXW type

Main data of the product series

Product name
Male connectors, WX, WXW type
Category
Male push-on connectors
Surface
uncoated

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
WX 6,3/0,8-M3 E10KN-01020700101 1 100 pkt. Price on request
WX 6,3/0,8-M4 E10KN-01020700201 1 100 pkt. Price on request
WX 6,3/0,8-M5 E10KN-01020700301 1 100 pkt. Price on request
WX 6,3/0,8-M3/45 E10KN-01020700401 1 100 pkt. Price on request
WX 6,3/0,8-M4/45 E10KN-01020700501 1 100 pkt. Price on request
WX 6,3/0,8-M5/45 E10KN-01020700601 1 100 pkt. Price on request
WX 6,3/0,8-M3/90 E10KN-01020700701 1 100 pkt. Price on request
WX 6,3/0,8-M4/90 E10KN-01020700801 1 100 pkt. Price on request
WX 6,3/0,8-M5/90 E10KN-01020700901 1 100 pkt. Price on request
WXW 6,3/0,8-M4/45 E10KN-01020702001 1 100 pkt. Price on request

Selected lines: 0

Technical data

General data

Material brass
Surface uncoated
Size 6,3 x 0,8
Thickness [mm] 0,8
D 6,3
A 8
B 8
Name Angle [deg.] d C L
WX 6,3/0,8-M3 0 3,2 - 19,4
WX 6,3/0,8-M4 0 4,3 - 19,4
WX 6,3/0,8-M5 0 5,3 - 19,4
WX 6,3/0,8-M3/45 45 3,2 8,0 -
WX 6,3/0,8-M4/45 45 4,3 8,0 -
WX 6,3/0,8-M5/45 45 5,3 8,0 -
WX 6,3/0,8-M3/90 90 3,2 8,5 -
WX 6,3/0,8-M4/90 90 4,3 8,5 -
WX 6,3/0,8-M5/90 90 5,3 8,5 -
WXW 6,3/0,8-M4/45 45 4,3 12,6 -

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Wsuwki_konektorowe_typu_WX_WXW_EN.pdf EN 04-07-2025 289.86 KB PDF Download
Catalog card ERGOM_Wsuwki_konektorowe_typu_WX_WXW_PL.pdf PL 04-07-2025 333.49 KB PDF Download
