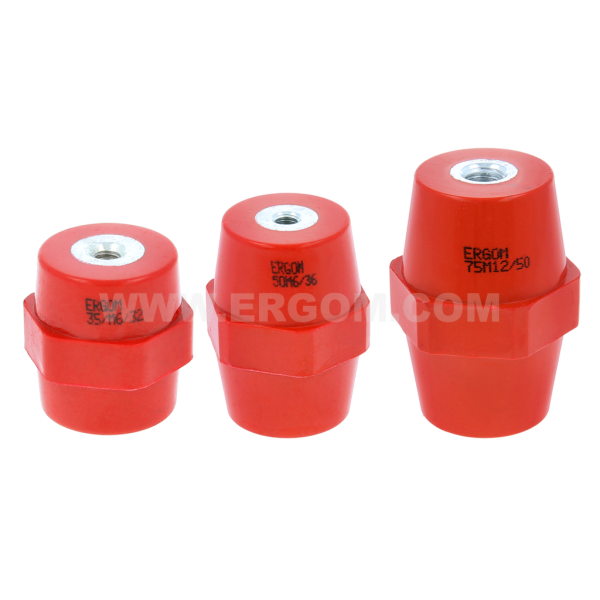

LV support insulators, IWN2 type

LV support insulators, IWN2 type

Main data of the product series

Product name
LV support insulators, IWN2 type
Category
Insulators and cable holders for rails and cables
Material
body – polyester reinforced with fibreglass (20%); threaded insert – zinc-coated steel
Note!
It is possible to purchase special transition pins to enable fitting an insulator with external thread (SIW type).
Standards
PN-E-91062-1:1998 PN-EN-61439-1:2011 p.10.9.2.1

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
IWN2-25M5/22 R32RZ-06010101001 10 10 pcs. Price on request
IWN2-25M6/22 R32RZ-06010101101 10 10 pcs. Price on request
IWN2-30M6/30 R32RZ-06010101201 10 10 pcs. Price on request
IWN2-30M8/30 R32RZ-06010101301 10 10 pcs. Price on request
IWN2-35M6/32 R32RZ-06010101401 10 10 pcs. Price on request
IWN2-35M8/32 R32RZ-06010101501 10 10 pcs. Price on request
IWN2-35M10/32 R32RZ-06010101601 10 10 pcs. Price on request
IWN2-40M8/41 R32RZ-06010101701 10 10 pcs. Price on request
IWN2-40M10/41 R32RZ-06010101801 10 10 pcs. Price on request
IWN2-45M10/46 R32RZ-06010101901 10 10 pcs. Price on request
IWN2-50M6/36 R32RZ-06010102001 10 10 pcs. Price on request
IWN2-50M8/36 R32RZ-06010102101 10 10 pcs. Price on request
IWN2-50M10/36 R32RZ-06010102201 10 10 pcs. Price on request
IWN2-50M10/46 R32RZ-06010102301 10 10 pcs. Price on request
IWN2-50M10/50 R32RZ-06010102401 10 10 pcs. Price on request
IWN2-75M8/50 R32RZ-06010102501 10 10 pcs. Price on request
IWN2-75M10/50 R32RZ-06010102601 10 10 pcs. Price on request
IWN2-75M12/50 R32RZ-06010102701 10 10 pcs. Price on request

Selected lines: 0

Technical data

General data

Test voltage for Ui<1000VAC [kV AC] 3,5
Test voltage for Ui=1000-1500VDC [kV DC] 3,82
Material body – polyester reinforced with fibreglass (20%); threaded insert – zinc-coated steel
Operating temp. [°C] -40 ÷ +140
Colour RAL 3031
Klasa palności UL 94 V0
Normy PN-E-91062-1:1998 PN-EN-61439-1:2011 p.10.9.2.1
Name Strength [daN] (tension) Strength [daN] (flexion) Strength [Nm] (torsion) Recommended tightening torque [Nm] A B D H M
IWN2-25M5/22 240 220 6,0 2,6 6,0 22,0 18,0 25,0 M5
IWN2-25M6/22 340 220 10,0 3,0 6,0 22,0 18,0 25,0 M6
IWN2-30M6/30 580 460 10,0 3,0 7,0 30,0 25,0 30,0 M6
IWN2-30M8/30 580 390 25,0 6,0 7,0 30,0 25,0 30,0 M8
IWN2-35M6/32 710 400 10,0 3,0 10,0 32,0 28,5 35,0 M6
IWN2-35M8/32 710 510 25,0 6,0 10,0 32,0 28,5 35,0 M8
IWN2-35M10/32 710 480 50,0 10,0 10,0 32,0 28,5 35,0 M10
IWN2-40M8/41 900 500 25,0 3,0 12,0 41,0 34,0 40,0 M8
IWN2-40M10/41 800 500 50,0 10,0 12,0 41,0 34,0 40,0 M10
IWN2-45M10/46 1100 650 50,0 10,0 13,0 46,0 39,5 45,0 M10
IWN2-50M6/36 1100 460 20,0 3,0 12,0 36,0 29,0 50,0 M6
IWN2-50M8/36 1100 460 25,0 6,0 12,0 36,0 29,0 50,0 M8
IWN2-50M10/36 1100 460 50,0 10,0 12,0 36,0 29,0 50,0 M10
IWN2-50M10/46 1100 550 50,0 10,0 10,0 46,0 37,0 50,0 M10
IWN2-50M10/50 1250 720 50,0 10,0 15,0 50,0 45,0 50,0 M10
IWN2-75M8/50 1500 800 25,0 6,0 16,0 50,0 38,5 75,0 M8
IWN2-75M10/50 1500 800 50,0 10,0 16,0 50,0 38,5 75,0 M10
IWN2-75M12/50 1500 650 85,0 14,0 16,0 50,0 38,5 75,0 M12

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Izolatory_wsporcze_nN_typ_IWN2_EN.pdf EN 15-05-2025 328.13 KB PDF Download
