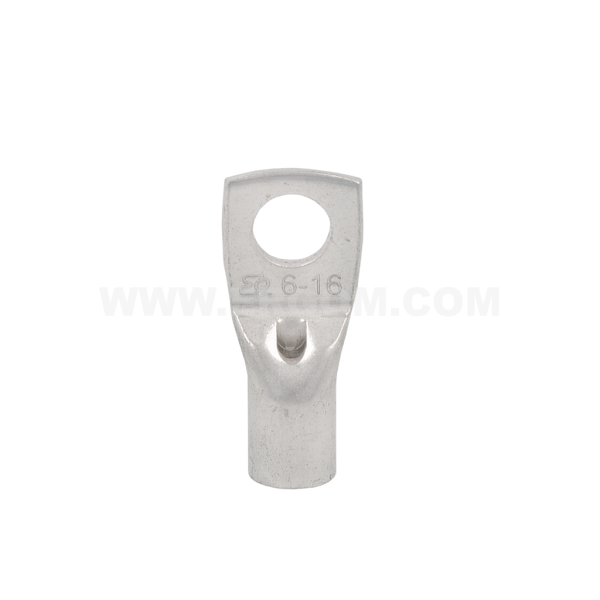

Low-cost tubular cable lugs with inspection hole, KREo type

Low-cost tubular cable lugs with inspection hole, KREo type

Main data of the product series

Product name
Low-cost tubular cable lugs with inspection hole, KREo type
Category
Cu low-cost tubular
Surface
tin-plated
Material
Cu
Note!
Sector-shaped conductors (sm) must be rounded with special dies.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
KREo 10/5 E11KM-01020504100 100 100 pcs. Price on request
KREo 10/6 E11KM-01020504200 100 100 pcs. Price on request
KREo 10/8 E11KM-01020504300 100 100 pcs. Price on request
KREo 10/10 E11KM-01020504400 100 100 pcs. Price on request
KREo 10/12 E11KM-01020504500 100 100 pcs. Price on request
KREo 16/5 E11KM-01020504600 100 100 pcs. Price on request
KREo 16/6 E11KM-01020504700 100 100 pcs. Price on request
KREo 16/8 E11KM-01020504800 100 100 pcs. Price on request
KREo 16/10 E11KM-01020504900 100 100 pcs. Price on request
KREo 16/12 E11KM-01020505100 100 100 pcs. Price on request
KREo 25/6 E11KM-01020505200 100 100 pcs. Price on request
KREo 25/8 E11KM-01020505300 100 100 pcs. Price on request
KREo 25/10 E11KM-01020505400 100 100 pcs. Price on request
KREo 25/12 E11KM-01020505500 100 100 pcs. Price on request
KREo 35/6 E11KM-01020505600 100 100 pcs. Price on request
KREo 35/8 E11KM-01020505700 100 100 pcs. Price on request
KREo 35/10 E11KM-01020505800 100 100 pcs. Price on request
KREo 35/12 E11KM-01020505900 100 100 pcs. Price on request
KREo 35/14 E11KM-01020506100 100 100 pcs. Price on request
KREo 50/6 E11KM-01020506200 100 100 pcs. Price on request
KREo 50/8 E11KM-01020506300 100 100 pcs. Price on request
KREo 50/10 E11KM-01020506400 100 100 pcs. Price on request
KREo 50/12 E11KM-01020506500 100 100 pcs. Price on request
KREo 50/14 E11KM-01020506600 100 100 pcs. Price on request
KREo 50/16 E11KM-01020506700 100 100 pcs. Price on request
KREo 70/8 E11KM-01020506800 100 100 pcs. Price on request
KREo 70/10 E11KM-01020506900 100 100 pcs. Price on request
KREo 70/12 E11KM-01020507100 100 100 pcs. Price on request
KREo 70/14 E11KM-01020507200 100 100 pcs. Price on request
KREo 70/16 E11KM-01020507300 100 100 pcs. Price on request
KREo 95/8 E11KM-01020507400 50 50 pcs. Price on request
KREo 95/10 E11KM-01020507500 50 50 pcs. Price on request
KREo 95/12 E11KM-01020507600 50 50 pcs. Price on request
KREo 95/14 E11KM-01020507700 50 50 pcs. Price on request
KREo 95/16 E11KM-01020507800 50 50 pcs. Price on request
KREo 120/8 E11KM-01020507900 50 50 pcs. Price on request
KREo 120/10 E11KM-01020508000 50 50 pcs. Price on request
KREo 120/12 E11KM-01020508100 50 50 pcs. Price on request
KREo 120/14 E11KM-01020508200 50 50 pcs. Price on request
KREo 120/16 E11KM-01020508300 50 50 pcs. Price on request
KREo 150/10 E11KM-01020508400 50 50 pcs. Price on request
KREo 150/12 E11KM-01020508500 50 50 pcs. Price on request
KREo 150/14 E11KM-01020508600 50 50 pcs. Price on request
KREo 150/16 E11KM-01020508700 50 50 pcs. Price on request
KREo 185/10 E11KM-01020508800 50 50 pcs. Price on request
KREo 185/12 E11KM-01020508900 50 50 pcs. Price on request
KREo 185/14 E11KM-01020509000 50 50 pcs. Price on request
KREo 185/16 E11KM-01020509100 50 50 pcs. Price on request
KREo 240/10 E11KM-01020509200 50 50 pcs. Price on request
KREo 240/12 E11KM-01020509300 50 50 pcs. Price on request
KREo 240/14 E11KM-01020509400 50 50 pcs. Price on request
KREo 240/16 E11KM-01020509500 50 50 pcs. Price on request

Selected lines: 0

Technical data

General data

Material Cu
Surface tin-plated
Wykonanie economical
Name Screw hole d D a c1 c2 E W Cross-section, rm/sm [mm²] Socket code no. Number of crimping - wide Number of crimping - narrow
KREo 10/5 M5 4,7 6,9 9,0 5,5 7,0 22,0 12,0 10 6 1 1
KREo 10/6 M6 4,7 6,9 9,0 5,5 7,0 22,0 12,0 10 6 1 1
KREo 10/8 M8 4,7 6,9 9,0 6,8 8,7 23,7 13,5 10 6 1 1
KREo 10/10 M10 4,7 6,9 9,0 10,0 12,0 27,0 15,0 10 6 1 1
KREo 10/12 M12 4,7 6,9 9,0 10,0 12,0 27,0 17,0 10 6 1 1
KREo 16/5 M5 5,6 7,8 9,0 5,5 7,0 22,0 12,0 16 7 1 2
KREo 16/6 M6 5,6 7,8 9,0 5,5 7,0 22,5 12,0 16 7 1 2
KREo 16/8 M8 5,6 7,8 9,0 6,8 8,7 23,7 13,5 16 7 1 2
KREo 16/10 M10 5,6 7,8 9,0 10,0 12,0 27,0 16,0 16 7 1 2
KREo 16/12 M12 5,6 7,8 9,0 10,0 12,0 27,0 17,0 16 7 1 2
KREo 25/6 M6 7,1 9,5 11,0 5,5 7,0 25,0 13,5 25 9 1 2
KREo 25/8 M8 7,1 9,5 11,0 6,8 8,7 26,7 13,5 25 9 1 2
KREo 25/10 M10 7,1 9,5 11,0 10,0 12,0 30,0 16,0 25 9 1 2
KREo 25/12 M12 7,1 9,5 11,0 10,0 12,0 30,0 18,0 25 9 1 2
KREo 35/6 M6 8,2 11,0 13,5 6,8 8,7 29,7 15,7 35 11 1 2
KREo 35/8 M8 8,2 11,0 13,5 8,3 9,7 30,7 15,7 35 11 1 2
KREo 35/10 M10 8,2 11,0 13,5 10,0 12,0 33,0 16,0 35 11 1 2
KREo 35/12 M12 8,2 11,0 13,5 10,0 12,0 33,0 18,0 35 11 1 2
KREo 35/14 M14 8,2 11,0 13,5 12,0 15,0 36,0 20,0 35 11 1 2
KREo 50/6 M6 9,5 12,5 19,0 6,8 8,7 35,7 18,0 50 13 1 2
KREo 50/8 M8 9,5 12,5 19,0 8,3 9,7 36,7 18,0 50 13 1 2
KREo 50/10 M10 9,5 12,5 19,0 10,0 12,0 39,0 18,0 50 13 1 2
KREo 50/12 M12 9,5 12,5 19,0 10,0 12,0 39,0 18,0 50 13 1 2
KREo 50/14 M14 9,5 12,5 19,0 12,0 15,0 42,0 22,0 50 13 1 2
KREo 50/16 M16 9,5 12,5 19,0 15,0 15,0 42,0 22,0 50 13 1 2
KREo 70/8 M8 11,5 15,0 20,0 8,3 9,7 39,2 21,5 70 15 1 3
KREo 70/10 M10 11,5 15,0 20,0 10,0 12,0 41,5 21,5 70 15 1 3
KREo 70/12 M12 11,5 15,0 20,0 10,0 12,0 41,5 21,5 70 15 1 3
KREo 70/14 M14 11,5 15,0 20,0 12,0 15,0 44,5 22,0 70 15 1 3
KREo 70/16 M16 11,5 15,0 20,0 15,0 15,0 44,5 22,0 70 15 1 3
KREo 95/8 M8 13,5 17,0 23,0 10,0 12,0 45,8 24,7 95 17 1 3
KREo 95/10 M10 13,5 17,0 23,0 10,0 12,0 45,8 24,7 95 17 1 3
KREo 95/12 M12 13,5 17,0 23,0 10,0 12,0 45,8 24,7 95 17 1 3
KREo 95/14 M14 13,5 17,0 23,0 15,0 15,0 48,8 24,7 95 17 1 3
KREo 95/16 M16 13,5 17,0 23,0 15,0 15,0 48,8 24,7 95 17 1 3
KREo 120/8 M8 14,5 19 21,5 10,0 11,0 47 28 120 C120 - 2
KREo 120/10 M10 14,5 19 21,5 10,0 11,0 47 28 120 C120 - 2
KREo 120/12 M12 14,5 19 21,5 12,0 12,5 48,5 29,5 120 C120 - 2
KREo 120/14 M14 14,5 19 21,5 14,0 14,5 51 30,5 120 C120 - 2
KREo 120/16 M16 14,5 19 21,5 15,0 16,5 52,5 32 120 C120 - 2
KREo 150/10 M10 16,2 21 21,5 10,0 11,0 48,5 30 150 C150 - 3
KREo 150/12 M12 16,2 21 21,5 12,0 12,5 50 32 150 C150 - 3
KREo 150/14 M14 16,2 21 21,5 14,0 14,5 52 32 150 C150 - 3
KREo 150/16 M16 16,2 21 21,5 15,0 16,5 54 34 150 C150 - 3
KREo 185/10 M10 18 23 23,5 10,0 11,0 52 33 185 C185 - 3
KREo 185/12 M12 18 23 23,5 12,0 12,5 53,5 33 185 C185 - 3
KREo 185/14 M14 18 23 23,5 14,0 14,5 57 33 185 C185 - 3
KREo 185/16 M16 18 23 23,5 15,0 16,5 57,5 34 185 C185 - 3
KREo 240/10 M10 20,6 26 23,5 10,0 11,0 52 38 240 C240 - 3
KREo 240/12 M12 20,6 26 23,5 12,0 12,5 56 38 240 C240 - 3
KREo 240/14 M14 20,6 26 23,5 14,0 14,5 58 38 240 C240 - 3
KREo 240/16 M16 20,6 26 23,5 15,0 16,5 60 38 240 C240 - 3

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Koncowki_ekonomiczne_rurowe_z_otworem_inspekcyjnym_typu_KREo_EN.pdf EN 04-07-2025 368.86 KB PDF Download
Catalog card ERGOM_Koncowki_ekonomiczne_rurowe_z_otworem_inspekcyjnym_typu_KREo_PL.pdf PL 04-07-2025 410.93 KB PDF Download
