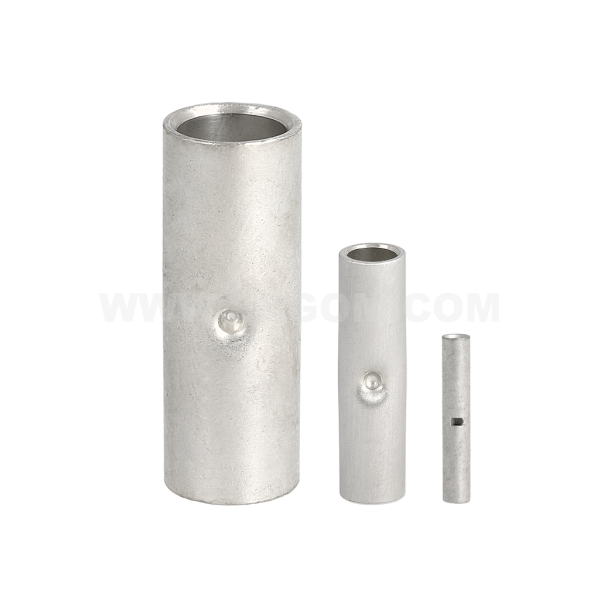

Low-cost "butt splice" cable connectors, LE type

Low-cost "butt splice" cable connectors, LE type

Main data of the product series

Product name
Low-cost "butt splice" cable connectors, LE type
Category
Cu low-cost tubular
Surface
tin-plated
Material
Cu
Note!
Sector-shaped conductors (sm) must be rounded with special dies.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
LE 0,5-12 E11KM-01060201701 1 0 pkt. Price on request
LE 1-15 E11KM-01060201801 1 0 pkt. Price on request
LE 1-20 E11KM-01060201851 1 0 pkt. Price on request
LE 2,5-15 E11KM-01060201901 1 0 pkt. Price on request
LE 2,5-20 E11KM-01060201951 1 0 pkt. Price on request
LE 6-20 E11KM-01060202001 1 0 pkt. Price on request
LE 6-25 E11KM-01060202051 1 0 pkt. Price on request
LE 10 E11KM-01060202100 100 100 pcs. Price on request
LE 16 E11KM-01060202200 100 100 pcs. Price on request
LE 25 E11KM-01060202300 100 100 pcs. Price on request
LE 35 E11KM-01060202400 100 100 pcs. Price on request
LE 50 E11KM-01060202500 100 100 pcs. Price on request
LE 70 E11KM-01060202600 100 100 pcs. Price on request
LE 95 E11KM-01060202700 50 50 pcs. Price on request
LE 120 E11KM-01060202800 50 50 pcs. Price on request
LE 150 E11KM-01060202900 50 50 pcs. Price on request
LE 185 E11KM-01060203000 50 50 pcs. Price on request
LE 240 E11KM-01060203100 50 50 pcs. Price on request

Selected lines: 0

Technical data

General data

Material Cu
Surface tin-plated
Wykonanie economical
Name d D L Cross-section, rm/sm [mm²] Socket code no. Number of crimping - wide Number of crimping - narrow
LE 0,5-12 1,2 2 12 0,1÷0,5 - - 1 - 1
LE 1-15 1,7 3,3 15 1 - - 1 - 1
LE 1-20 1,7 3,3 20 1 - - 1 - 1
LE 2,5-15 2,4 4 15 1,5÷2,5 - - 1 - 1
LE 2,5-20 2,4 4 20 1,5÷2,5 - - 1 - 1
LE 6-20 3,6 5,5 20 4÷6 - - 1 - 1
LE 6-25 3,6 5,5 25 4÷6 - - 1 - 1
LE 10 4,7 6,9 25 10 6 1 - 1 1 - 1
LE 16 5,6 7,8 30 16 7 1 - 1 2 - 2
LE 25 7,1 9,5 30 25 9 1 - 1 2 - 2
LE 35 8,2 11,0 35 35 11 1 - 1 2 - 2
LE 50 9,5 12,5 35 50 13 1 - 1 2 - 2
LE 70 11,5 15,0 45 70 15 1 - 1 3 - 3
LE 95 13,5 17,0 47 95 17 1 - 1 3 - 3
LE 120 14,5 19,0 52 120 C120 - 2 - 2
LE 150 16,2 21,0 59 150 C150 - 3 - 3
LE 185 18,0 23,0 65 185 C185 - 4 - 4
LE 240 20,6 26,0 75 240 C240 - 4 - 4

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Laczniki_ekonomiczne_typu_LE_do_laczenia_na_styk_EN.pdf EN 04-07-2025 318.52 KB PDF Download
Catalog card ERGOM_Laczniki_ekonomiczne_typu_LE_do_laczenia_na_styk_PL.pdf PL 04-07-2025 361.11 KB PDF Download
