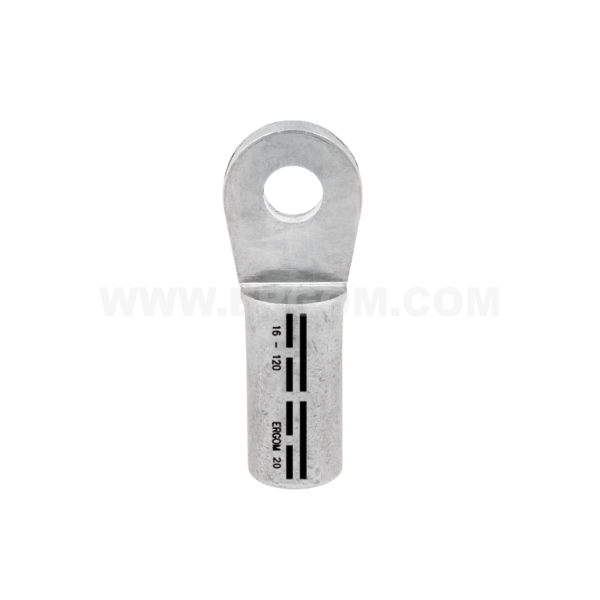

Longitudinally sealed tubular cable lugs, KRMC type

Longitudinally sealed tubular cable lugs, KRMC type

Main data of the product series

Product name
Longitudinally sealed tubular cable lugs, KRMC type
Category
Ring
Surface
tin-plated
Material
Cu
Note!
Sector-shaped conductors (sm) must be rounded with special dies.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
KRMC 16/10 E11KM-02050200300 10 1 pcs. Price on request
KRMC 70/12 E11KM-02050201701 10 1 pcs. Price on request
KRMC 150/16 E11KM-02050202500 5 1 pcs. Price on request

Selected lines: 0

Technical data

General data

Material Cu
Surface tin-plated
Wykonanie DIN 46235 – concerns only the tubular part
Name Screw hole d D a E W Cross-section, rm/sm [mm²] Socket code no. Number of crimping - wide Number of crimping - narrow
KRMC 16/10 M10 5,5 8,5 21 36 20 16 8 1 2
KRMC 70/12 M12 11,5 16,5 29 53 30 70 16 2 3
KRMC 150/16 M16 17,0 23,5 36 63 30 150 22 2 4

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Koncowki_rurowe_szczelne_typu_KRMC_EN.pdf EN 04-07-2025 290.43 KB PDF Download
Catalog card ERGOM_Koncowki_rurowe_szczelne_typu_KRMC_PL.pdf PL 04-07-2025 332.32 KB PDF Download
