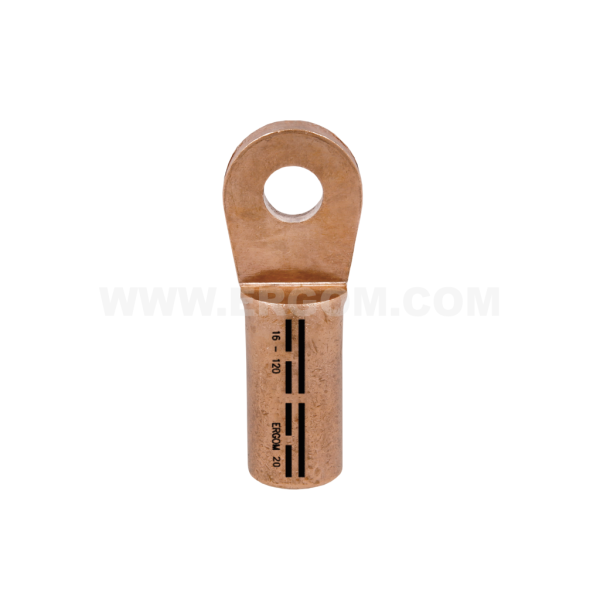

Longitudinally sealed tubular cable lugs, KRM type

Longitudinally sealed tubular cable lugs, KRM type

Main data of the product series

Product name
Longitudinally sealed tubular cable lugs, KRM type
Category
Ring
Surface
uncoated
Material
Cu
Note!
Sector-shaped conductors (sm) must be rounded with special dies.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
KRM 25/6 E11KM-02050100501 10 1 pcs. Price on request
KRM 25/10 E11KM-02050100701 10 1 pcs. Price on request
KRM 25/12 E11KM-02050100801 10 1 pcs. Price on request
KRM 50/10 E11KM-02050101401 10 1 pcs. Price on request
KRM 50/12 E11KM-02050101501 10 1 pcs. Price on request
KRM 70/16 E11KM-02050101801 10 1 pcs. Price on request
KRM 95/10 E11KM-02050101901 10 1 pcs. Price on request
KRM 120/12 E11KM-02050102201 10 1 pcs. Price on request
KRM 150/16 E11KM-02050102501 5 1 pcs. Price on request
KRM 185/10 E11KM-02050102601 5 1 pcs. Price on request
KRM 185/12 E11KM-02050102701 5 1 pcs. Price on request
KRM 185/20 E11KM-02050102901 5 1 pcs. Price on request
KRM 240/12 E11KM-02050103001 5 1 pcs. Price on request
KRM 240/20 E11KM-02050103201 5 1 pcs. Price on request
KRM 300/20 E11KM-02050103401 1 1 pcs. Price on request

Selected lines: 0

Technical data

General data

Material Cu
Surface uncoated
Wykonanie DIN 46235 – concerns only the tubular part
Name Screw hole d D a E W Cross-section, rm/sm [mm²] Socket code no. Number of crimping - wide Number of crimping - narrow
KRM 25/6 M6 7,0 10,0 21 33 20 25 10 1 2
KRM 25/10 M10 7,0 10,0 21 33 24 25 10 1 2
KRM 25/12 M12 7,0 10,0 21 33 24 25 10 1 2
KRM 50/10 M10 10,0 14,5 29 50 25 50 14 2 3
KRM 50/12 M12 10,0 14,5 29 50 25 50 14 2 3
KRM 70/16 M16 11,5 16,5 29 53 30 70 16 2 3
KRM 95/10 M10 13,5 19,0 36 57 25 95 18 2 4
KRM 120/12 M12 15,5 21,0 36 62 30 120 20 2 4
KRM 150/16 M16 17,0 23,5 36 63 30 150 22 2 4
KRM 185/10 M10 19,0 25,5 42 71 30 185 25 2 5
KRM 185/12 M12 19,0 25,5 42 71 30 185 25 2 5
KRM 185/20 M20 19,0 25,5 42 71 30 185 25 2 5
KRM 240/12 M12 21,5 29,0 42 74 38 240 28 2 -
KRM 240/20 M20 21,5 29,0 42 74 38 240 28 2 -
KRM 300/20 M20 24,5 32,0 63 89 38 300 32 2 -

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Koncowki_rurowe_szczelne_typu_KRM_EN.pdf EN 04-07-2025 366.04 KB PDF Download
Catalog card ERGOM_Koncowki_rurowe_szczelne_typu_KRM_PL.pdf PL 04-07-2025 407.04 KB PDF Download
