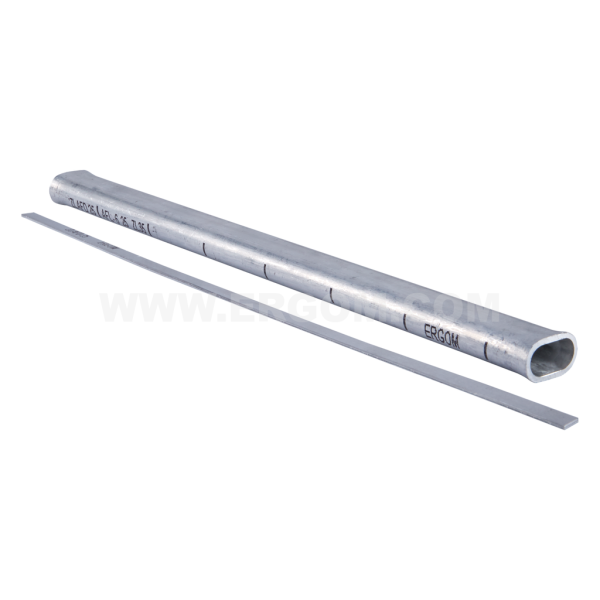

Long mechanically loadable connectors with spacer for AFL overhead power line, ZLAFD type

Main data of the product series

Product name: Long mechanically loadable connectors with spacer for AFL overhead power line, ZLAFD type
Category: For crimping
Surface: uncoated
Material: Al.
Note!: INSTALLATION INSTRUCTIONS: The wires are connected using the so-called "overlap" by mechanically pressing the connector. Insert the connected wires into the connector so that they protrude the same length on both sides. Before crimping, insert the aluminum spacer attached to the connector between the wires so that it protrudes the same length on both sides of the connector. Pressing should be done in the places marked on the connector using a die type KP22-ZL... with the socket size and quantity in accordance with the table below. Crimping is performed alternately, starting from the central marking and moving to the outside of the connector.

Features and benefits

Product description

Offer

Name	Ergom index / your designation	Min. order quantity [uom]	Qty in package	Unit of measure [uom]	Catalogue price net per uom
ZLAFD 25	E12KA-01140300202	10	10	pcs.	Price on request
ZLAFD 35	E12KA-01140300302	10	10	pcs.	Price on request
ZLAFD 50	E12KA-01140300402	10	10	pcs.	Price on request
ZLAFD 70	E12KA-01140300502	10	10	pcs.	Price on request

Selected lines: 0

Technical data

General data

Material	Al.
Surface	uncoated
g	1,5
Normy	PN-EN 61284:2002 - class A, mechanically loadable connector - short-circuit test on class A connections in accordance with point 13.5.3.1
Wykonanie	BN-86/0325-29 - dimension only

Name	L	s	a	b	D1	D2	G	l	Socket code no.	Number of notches on one side
ZLAFD 25	270	6,5	36	36	16,5	7,5	2	310	ZL 35	7
ZLAFD 35	306	8	36	72	19	9	2	350	ZL 50	7
ZLAFD 50	380	9	40	80	22	10,5	2	430	ZL 70	8
ZLAFD 70	462	11	44	132	26	12,5	2,5	520	ZL 95	8
