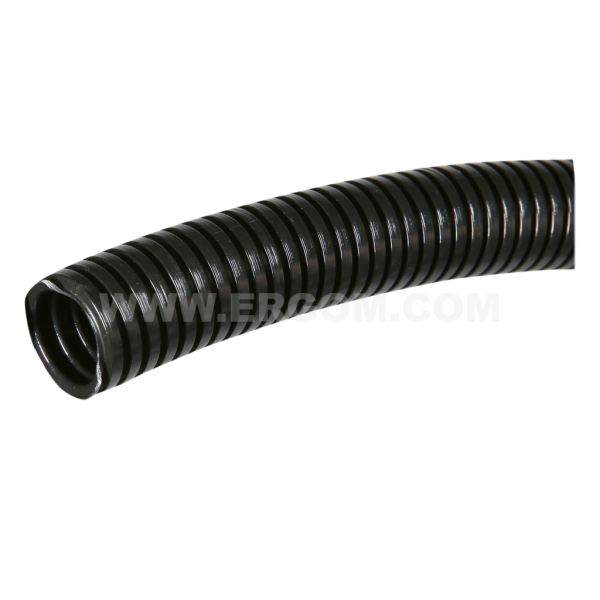

Light corrugated protective conduit made of polyamide, WTE...L type

Light corrugated protective conduit made of polyamide, WTE...L type

Main data of the product series

Product name
Light corrugated protective conduit made of polyamide, WTE...L type
Category
Corrugated conduits made of polyamide
Material
polyamide 6
Colour
black (RAL 9005)
Operating temperature [°C]
-5 ÷ +90 (without moving: -40 ÷ +120)
Compression strength
200 N
IP degree of protection
IP67
Flammability class
EN 61386-1:2011 - flame retardant, UL 94 HB, halogen free

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
WTE 7L E03DK-09060100100 50 50 m. Price on request
WTE 9L E03DK-09060100200 50 50 m. Price on request
WTE 11L E03DK-09060100300 50 50 m. Price on request
WTE 13L E03DK-09060100400 50 50 m. Price on request
WTE 16L E03DK-09060100500 50 50 m. Price on request
WTE 21L E03DK-09060100600 50 50 m. Price on request
WTE 29L E03DK-09060100700 100 50 m. Price on request
WTE 36L E03DK-09060100800 50 25 m. Price on request
WTE 48L E03DK-09060100900 50 25 m. Price on request

Selected lines: 0

Technical data

General data

Material polyamide 6
Halogen-free yes
Operating temperature [°C] -5 ÷ +90 (without moving: -40 ÷ +120)
Colour black (RAL 9005)
Compression strength 200 N
Stopień ochrony IP67
Klasa palności EN 61386-1:2011 - flame retardant, UL 94 HB, halogen free
Normy EN 61386-1:1122; EN 61386-23
Name Min. bending radius [mm] Nominal size of the connector d D
WTE 7L 20 7 6,7 10,0
WTE 9L 25 9 10,0 13,0
WTE 11L 35 11 11,9 15,8
WTE 13L 40 13 14,3 18,6
WTE 16L 45 16 16,8 21,2
WTE 21L 50 21 22,2 28,5
WTE 29L 60 29 27,9 34,5
WTE 36L 65 36 35,6 42,5
WTE 48L 75 48 46,9 54,5
