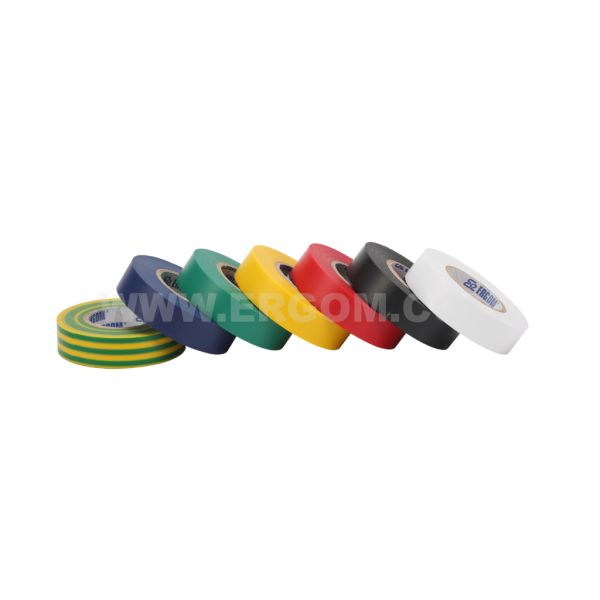

Insulation tapes, standard, TO type

Insulation tapes, standard, TO type

Main data of the product series

Product name
Insulation tapes, standard, TO type
Category
Insulating materials
Operating temperature [°C]
0 ÷ 80

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
TO 15/10 BL E05ME-02010100201 10 10 pcs. Price on request
TO 15/10 GR E05ME-02010100301 10 10 pcs. Price on request
TO 15/10 YL E05ME-02010100401 10 10 pcs. Price on request
TO 15/10 YL-GR E05ME-02010100601 10 10 pcs. Price on request
TO 15/10 WT E05ME-02010100701 10 10 pcs. Price on request
TO 15/10 RD E05ME-02010100801 10 10 pcs. Price on request
TO 15/10 BK E05ME-02010100901 10 10 pcs. Price on request
TO 19/20 BL E05ME-02010500201 10 10 pcs. Price on request
TO 19/20 GR E05ME-02010500301 10 10 pcs. Price on request
TO 19/20 BK E05ME-02010500901 10 10 pcs. Price on request

Selected lines: 0

Technical data

General data

Breakdown voltage [kV] 6
Operating temperature [°C] 0 ÷ 80
Thermal resistance [° C] +80
Flammability self-extinguishing
Wall thickness [mm] 0,15
Normy IEC 60454-2:2007
Name Colour Length [m] Width [mm]
TO 15/10 BL blue 10 15
TO 15/10 GR green 10 15
TO 15/10 YL yellow 10 15
TO 15/10 YL-GR yellow-green 10 15
TO 15/10 WT white 10 15
TO 15/10 RD red 10 15
TO 15/10 BK black 10 15
TO 19/20 BL blue 20 19
TO 19/20 GR green 20 19
TO 19/20 BK black 20 19

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Tasmy_elektroizolacyjne_standardowe_typu_TO_EN.pdf EN 14-05-2025 246.88 KB PDF Download
Catalog card ERGOM_Tasmy_elektroizolacyjne_standardowe_typu_TO_PL.pdf PL 14-05-2025 255.28 KB PDF Download
