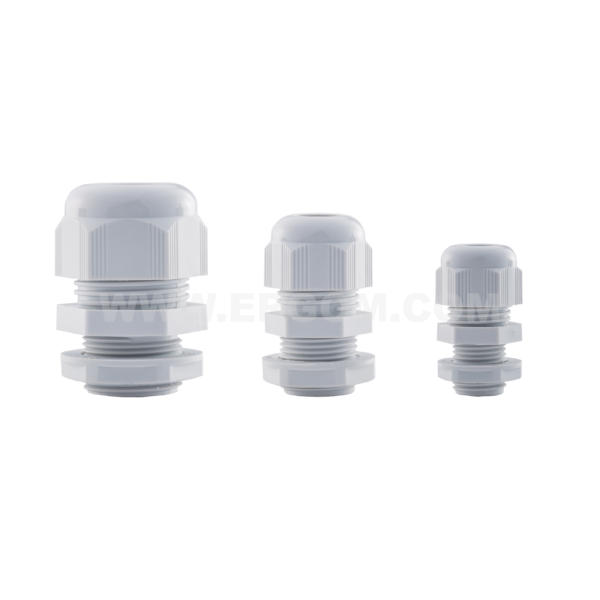

Insulating gland, DP…HML type

Insulating gland, DP…HML type

Main data of the product series

Product name: Insulating gland, DP…HML type
Category: Made of plastic
Operating temperature [°C]: -30 ÷ +80
Colour: grey (RAL 7035)
Material: body: polyamide 6; seal - CR
Flammability class: UL 94 V2
IP degree of protection: IP68 (with sealing washer)
Note!: Gland and nut in a kit, without sealing washer.

Features and benefits

Product description

-

Offer

Name	Ergom index / your designation	Min. order quantity [uom]	Qty in package	Unit of measure [uom]	Catalogue price net per uom	Quantity [uom]
DP 16HML	E03DK-01050100101	100	100	pcs.	Price on request
DP 16HML	E03DK-01050100103	10	10	pcs.	Price on request
DP 20 HML	E03DK-01050100201	100	100	pcs.	Price on request
DP 20 HML	E03DK-01050100203	10	10	pcs.	Price on request
DP 20 HML 2	E03DK-01050100301	100	100	pcs.	Price on request
DP 20 HML 2	E03DK-01050100303	10	10	pcs.	Price on request
DP 25 HML	E03DK-01050100401	50	50	pcs.	Price on request
DP 25 HML	E03DK-01050100403	10	10	pcs.	Price on request

Selected lines: 0

Technical data

General data

Material	body: polyamide 6; seal - CR
Colour	grey (RAL 7035)
Operating temperature [°C]	-30 ÷ +80
E	15
Stopień ochrony	IP68 (with sealing washer)
Klasa palności	UL 94 V2
Normy	EN 62444; type A

Name	M thread	Cable external diameter [mm]	L	For spanner A
DP 16HML	M16x1,5	5,0÷10,0	24	22
DP 20 HML	M20x1,5	6,0÷12,0	28	24
DP 20 HML 2	M20x1,5	10,0÷14,0	32	27
DP 25 HML	M25x1,5	13,0÷18,0	36	33

Guide

Insulating gland, DP…HML type

Knowledge

No data

Downloads

Type	Name	Language	Updated at	Size	File type
Catalog card	ERGOM_Dlawnica_izolacyjna_typu_DP_HML_EN.pdf	EN	14-05-2025	252.06 KB	PDF	Download
Catalog card	ERGOM_Dlawnica_izolacyjna_typu_DP_HML_PL.pdf	PL	14-05-2025	269.73 KB	PDF	Download
