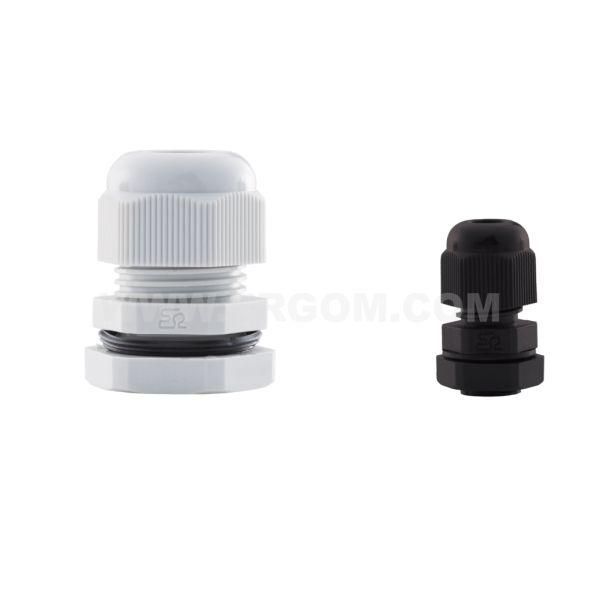

Insulating gland, DP...H, DP...H BK type

Insulating gland, DP...H, DP...H BK type

Main data of the product series

Product name
Insulating gland, DP...H, DP...H BK type
Category
Made of plastic
Operating temperature [°C]
-30 ÷ +80
Colour
grey (RAL 7035), black BK (RAL 9005)
Material
body: polyamide 6; seal - PVC
Flammability class
UL 94 V2
IP degree of protection
IP68
Note!
Gland, nut and sealing washer in a kit.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
DP 7/H E03DK-01030100101 100 100 pcs. Price on request
DP 7/H E03DK-01030100103 10 10 pcs. Price on request
DP 9/H E03DK-01030100201 100 100 pcs. Price on request
DP 9/H E03DK-01030100203 10 10 pcs. Price on request
DP 11/H E03DK-01030100301 100 100 pcs. Price on request
DP 11/H E03DK-01030100303 10 10 pcs. Price on request
DP 13/H E03DK-01030100401 100 100 pcs. Price on request
DP 13/H E03DK-01030100403 10 10 pcs. Price on request
DP 16/H E03DK-01030100501 100 100 pcs. Price on request
DP 16/H E03DK-01030100503 10 10 pcs. Price on request
DP 21/H E03DK-01030100601 50 50 pcs. Price on request
DP 21/H E03DK-01030100603 10 10 pcs. Price on request
DP 29/H E03DK-01030100701 50 50 pcs. Price on request
DP 29/H E03DK-01030100703 10 10 pcs. Price on request
DP 36/H E03DK-01030100801 10 10 pcs. Price on request
DP 42/H E03DK-01030100901 10 10 pcs. Price on request
DP 42/H E03DK-01030100903 1 1 pcs. Price on request
DP 48/H E03DK-01030101001 10 10 pcs. Price on request
DP 48/H E03DK-01030101003 1 1 pcs. Price on request
DP 63/H E03DK-01030101101 10 10 pcs. Price on request
DP 63/H E03DK-01030101103 1 1 pcs. Price on request
DP 7 H BK E03DK-01030300001 100 100 pcs. Price on request
DP 7 H BK E03DK-01030300003 10 10 pcs. Price on request
DP 9 H BK E03DK-01030300101 100 100 pcs. Price on request
DP 9 H BK E03DK-01030300103 10 10 pcs. Price on request
DP 11 H BK E03DK-01030300201 100 100 pcs. Price on request
DP 11 H BK E03DK-01030300203 10 10 pcs. Price on request
DP 13 H BK E03DK-01030300301 100 100 pcs. Price on request
DP 13 H BK E03DK-01030300303 10 10 pcs. Price on request
DP 16 H BK E03DK-01030300401 100 100 pcs. Price on request
DP 16 H BK E03DK-01030300403 10 10 pcs. Price on request
DP 21 H BK E03DK-01030300501 50 50 pcs. Price on request
DP 21 H BK E03DK-01030300503 10 10 pcs. Price on request
DP 29 H BK E03DK-01030300601 50 50 pcs. Price on request
DP 29 H BK E03DK-01030300603 10 10 pcs. Price on request
DP 36 H BK E03DK-01030300701 10 10 pcs. Price on request
DP 42 H BK E03DK-01030300801 10 10 pcs. Price on request
DP 42 H BK E03DK-01030300803 1 1 pcs. Price on request
DP 48 H BK E03DK-01030300901 10 10 pcs. Price on request
DP 48 H BK E03DK-01030300903 1 1 pcs. Price on request
DP 63 H BK E03DK-01030301001 10 10 pcs. Price on request
DP 63 H BK E03DK-01030301003 10 1 pcs. Price on request

Selected lines: 0

Technical data

General data

Material body: polyamide 6; seal - PVC
Colour grey (RAL 7035), black BK (RAL 9005)
Operating temperature [°C] -30 ÷ +80
Stopień ochrony IP68
Klasa palności UL 94 V2
Normy EN 62444; type A
Name Colour PG thread Cable external diameter [mm] E H L K For spanner A For spanner B For spanner C
DP 7/H grey PG7 3,5÷6,0 8 5,0 20 1,2 16 16 18
DP 9/H grey PG9 4,5÷7,0 8 5,0 22 1,14 19 19 21
DP 11/H grey PG11 5,5÷10,0 8 5,5 24 1,4 22 22 24
DP 13/H grey PG13,5 8,0÷12,0 9 5,5 27 1,4 24 24 27
DP 16/H grey PG16 10,0÷14,0 10 6,0 28 1,4 26 27 30
DP 21/H grey PG21 14,0÷18,0 10 6,5 30 1,4 32 33 36
DP 29/H grey PG29 18,0÷25,0 15 7,0 38 1,5 42 42 45
DP 36/H grey PG36 24,0÷32,0 18 7,0 45 1,5 53 51 57
DP 42/H grey PG42 30,0÷38,0 18 7,0 48 2,0 61 59 65
DP 48/H grey PG48 38,0÷44,0 18 7,0 48 1,7 65 63 70
DP 63/H grey 70.5 installation opening 42,0÷52,0 28 9,0 58 2,0 77 75 81
DP 7 H BK black PG7 3,5÷6,0 8 5,0 20 1,2 16 16 18
DP 9 H BK black PG9 4,5÷7,0 8 5,0 22 1,14 19 19 21
DP 11 H BK black PG11 5,5÷10,0 8 5,5 24 1,4 22 22 24
DP 13 H BK black PG13,5 8,0÷12,0 9 5,5 27 1,4 24 24 27
DP 16 H BK black PG16 10,0÷14,0 10 6,0 28 1,4 26 27 29
DP 21 H BK black PG21 14,0÷18,0 10 6,5 30 1,4 32 33 36
DP 29 H BK black PG29 18,0÷25,0 12 7,0 38 1,5 42 42 45
DP 36 H BK black PG36 24,0÷32,0 14 7,0 45 1,5 53 51 57
DP 42 H BK black PG42 30,0÷38,0 14 7,0 48 2,0 61 59 65
DP 48 H BK black PG48 38,0÷44,0 18 7,0 48 1,7 65 63 70
DP 63 H BK black 70.5 installation opening 42,0÷52,0 28 9,0 58 2,0 77 75 81

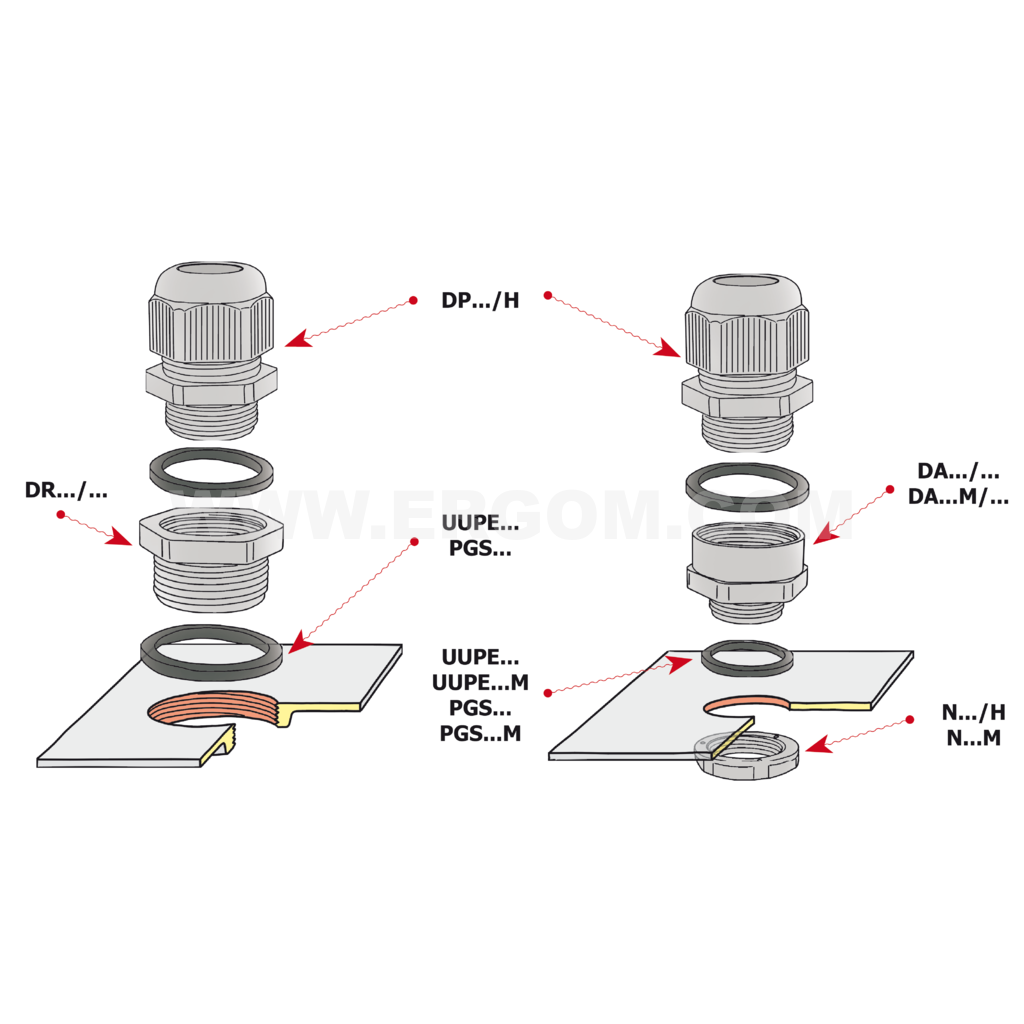

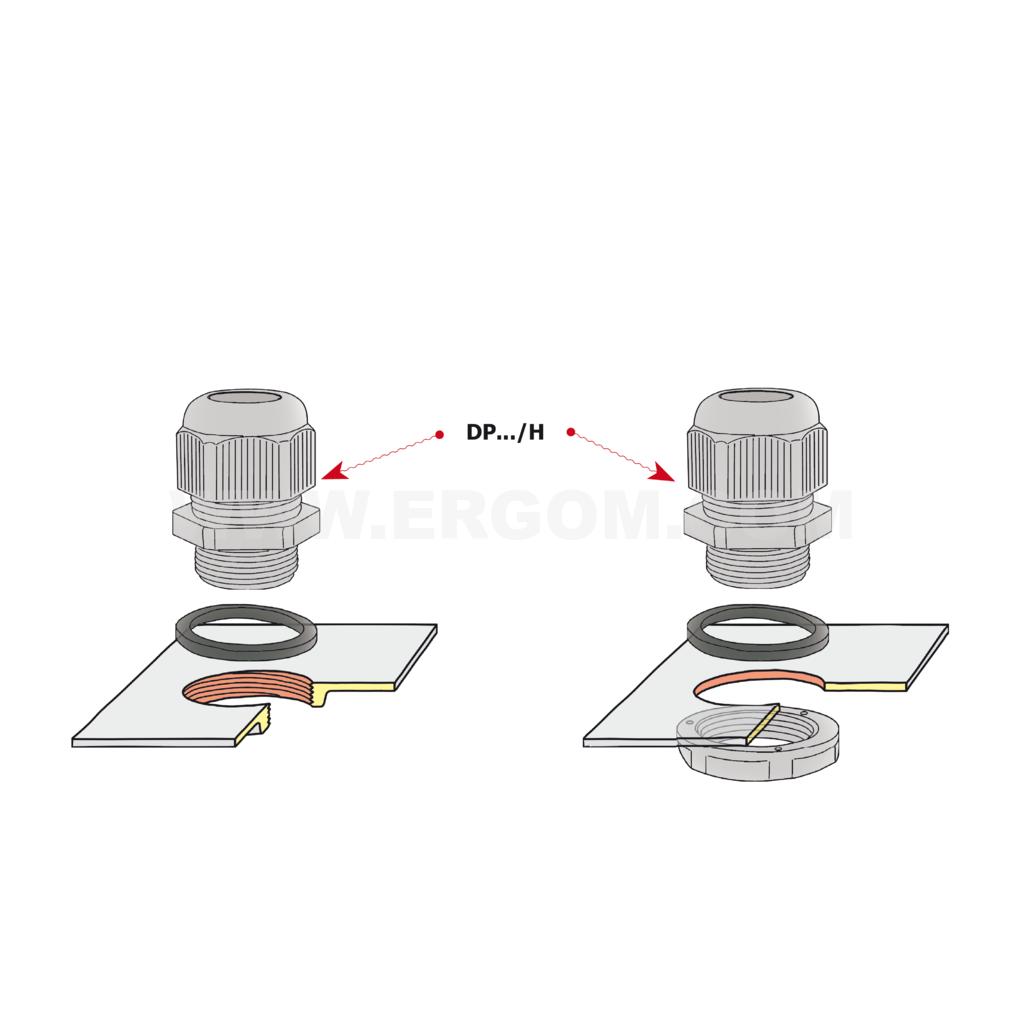

Guide

Insulating gland, DP...H, DP...H BK type
Insulating gland, DP...H, DP...H BK type

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Dlawnica_izolacyjna_typu_DP_H_DP_H_BK_EN.pdf EN 05-09-2025 441.63 KB PDF Download
Catalog card ERGOM_Dlawnica_izolacyjna_typu_DP_H_DP_H_BK_PL.pdf PL 05-09-2025 461.53 KB PDF Download
