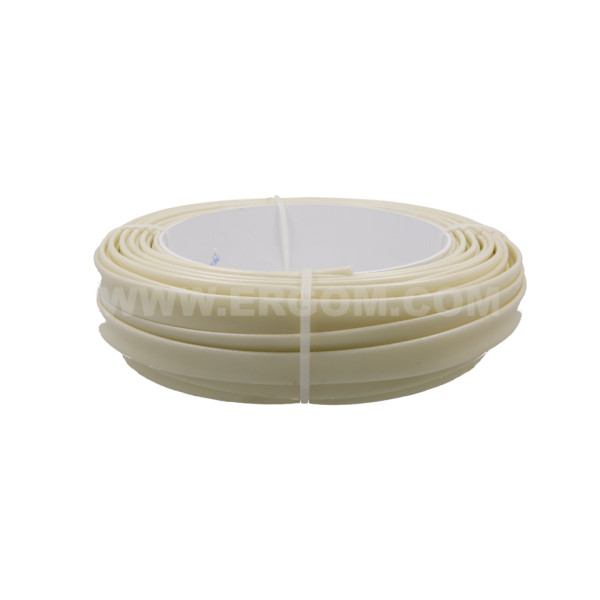

Insulating fiberglass tubes, OSPU type

Insulating fiberglass tubes, OSPU type

Main data of the product series

Product name
Insulating fiberglass tubes, OSPU type
Category
Insulating materials
Operating temperature [°C]
-30 ÷ +155

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
OSPU-0,5 E05ME-03010100101 100 100 m. Price on request
OSPU-1 E05ME-03010100201 100 100 m. Price on request
OSPU-1,5 E05ME-03010100301 100 100 m. Price on request
OSPU-2 E05ME-03010100401 100 100 m. Price on request
OSPU-2,5 E05ME-03010100501 100 100 m. Price on request
OSPU-3 E05ME-03010100601 100 100 m. Price on request
OSPU-3,5 E05ME-03010100701 100 100 m. Price on request
OSPU-4 E05ME-03010100801 100 100 m. Price on request
OSPU-4,5 E05ME-03010100901 100 100 m. Price on request
OSPU-5 E05ME-03010101001 100 100 m. Price on request
OSPU-6 E05ME-03010101101 50 50 m. Price on request
OSPU-7 E05ME-03010101201 50 50 m. Price on request
OSPU-8 E05ME-03010101301 50 50 m. Price on request
OSPU-9 E05ME-03010101401 50 50 m. Price on request
OSPU-12 E05ME-03010101601 30 30 m. Price on request

Selected lines: 0

Technical data

General data

Breakdown strength [kV] 5
Material fiberglass impregnated with polyurethane elastomer
Halogen-free yes
Operating temperature [°C] -30 ÷ +155
Colour bright beige
Normy EN 60684-1; EN 60684-2; EN 60684-3-409
Name Wall thickness [mm] B Inside diameter [mm] A
OSPU-0,5 0.5 (+ 0.15 tolerance) 0.5 (+ 0.3 tolerance)
OSPU-1 0.5 (+ 0.15 tolerance) 1 (+ 0.4 tolerance)
OSPU-1,5 0.5 (+ 0.15 tolerance) 1.5 (+ 0.4 tolerance)
OSPU-2 0.5 (+ 0.15 tolerance) 2 (+ 0.4 tolerance)
OSPU-2,5 0.5 (+ 0.15 tolerance) 2.5 (+ 0.4 tolerance)
OSPU-3 0.5 (+ 0.15 tolerance) 3 (+ 0.5 tolerance)
OSPU-3,5 0.5 (+ 0.15 tolerance) 3.5 (+ 0.5 tolerance)
OSPU-4 0.5 (+ 0.15 tolerance) 4 (+ 0.5 tolerance)
OSPU-4,5 0.5 (+ 0.15 tolerance) 4.5 (+ 0.5 tolerance)
OSPU-5 0.5 (+ 0.15 tolerance) 5 (+ 0.5 tolerance)
OSPU-6 0.5 (+ 0.15 tolerance) 6 (+ 0.5 tolerance)
OSPU-7 0.7 (+ 0.20 tolerance) 7 (+ 0.5 tolerance)
OSPU-8 0.7 (+ 0.20 tolerance) 8 (+ 0.6 tolerance)
OSPU-9 0.7 (+ 0.20 tolerance) 9 (+ 0.6 tolerance)
OSPU-12 0.7 (+ 0.30 tolerance) 12 (+ 0.6 tolerance)

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Koszulki_elektroizolacyjne_szklane_typu_OSPU_EN.pdf EN 22-09-2025 231.04 KB PDF Download
Catalog card ERGOM_Koszulki_elektroizolacyjne_szklane_typu_OSPU_PL.pdf PL 14-05-2025 242.89 KB PDF Download
