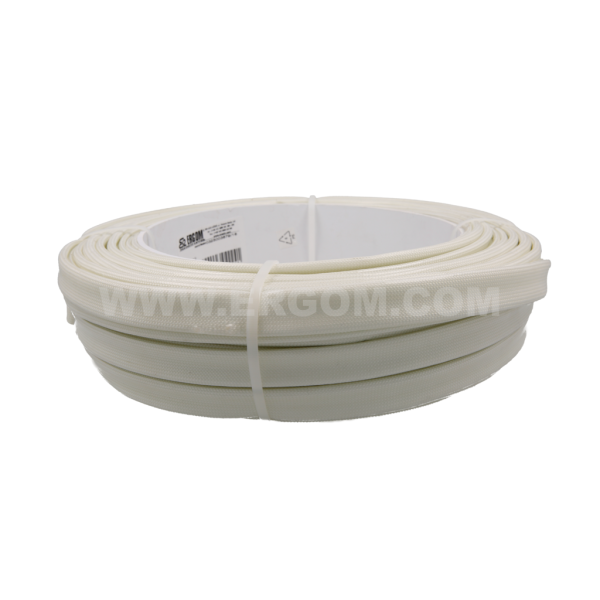

Insulating fiberglass tubes, OSKS type

Insulating fiberglass tubes, OSKS type

Main data of the product series

Product name
Insulating fiberglass tubes, OSKS type
Category
Insulating materials
Operating temperature [°C]
-70 ÷ +180

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
OSKS-1 E05ME-03010200101 100 100 m. Price on request
OSKS-1,5 E05ME-03010200201 100 100 m. Price on request
OSKS-2 E05ME-03010200301 100 100 m. Price on request
OSKS-2,5 E05ME-03010200401 100 100 m. Price on request
OSKS-3 E05ME-03010200501 100 100 m. Price on request
OSKS-3,5 E05ME-03010200601 100 100 m. Price on request
OSKS-4 E05ME-03010200701 100 100 m. Price on request
OSKS-4,5 E05ME-03010200801 100 100 m. Price on request
OSKS-5 E05ME-03010200901 100 100 m. Price on request
OSKS-6 E05ME-03010201001 50 50 m. Price on request
OSKS-7 E05ME-03010201101 50 50 m. Price on request
OSKS-8 E05ME-03010201201 50 50 m. Price on request
OSKS-9 E05ME-03010201301 50 50 m. Price on request
OSKS-10 E05ME-03010201401 50 50 m. Price on request
OSKS-12 E05ME-03010201501 30 30 m. Price on request
OSKS-14 E05ME-03010201601 30 30 m. Price on request
OSKS-16 E05ME-03010201701 20 20 m. Price on request

Selected lines: 0

Technical data

General data

Breakdown strength [kV] 4,3
Material fiberglass impregnated with silicone rubber
Operating temperature [°C] -70 ÷ +180
Flammability self-extinguishing
Colour white
Normy EN 60684-1; EN 60684-2; EN 60684-3-400; The material meets the requirements of R24 of EN45545-2: 2013 + A1: 2015 for the HL1 and HL2 hazard level.
Name Wall thickness [mm] B Inside diameter [mm] A
OSKS-1 0.5 (+ 0.15 tolerance) 1 (+ 0.4 tolerance)
OSKS-1,5 0.5 (+ 0.15 tolerance) 1.5 (+ 0.4 tolerance)
OSKS-2 0.5 (+ 0.15 tolerance) 2 (+ 0.4 tolerance)
OSKS-2,5 0.5 (+ 0.15 tolerance) 2.5 (+ 0.4 tolerance)
OSKS-3 0.5 (+ 0.15 tolerance) 3 (+ 0.5 tolerance)
OSKS-3,5 0.5 (+ 0.15 tolerance) 3.5 (+ 0.5 tolerance)
OSKS-4 0.5 (+ 0.15 tolerance) 4 (+ 0.5 tolerance)
OSKS-4,5 0.5 (+ 0.15 tolerance) 4.5 (+ 0.5 tolerance)
OSKS-5 0.5 (+ 0.15 tolerance) 5 (+ 0.5 tolerance)
OSKS-6 0.5 (+ 0.15 tolerance) 6 (+ 0.5 tolerance)
OSKS-7 0.5 (+ 0.15 tolerance) 7 (+ 0.5 tolerance)
OSKS-8 0.7 (+ 0.20 tolerance) 8 (+ 0.6 tolerance)
OSKS-9 0.7 (+ 0.20 tolerance) 9 (+ 0.6 tolerance)
OSKS-10 0.7 (+ 0.20 tolerance) 10 (+ 0.6 tolerance)
OSKS-12 0.7 (+ 0.20 tolerance) 12 (+ 0.6 tolerance)
OSKS-14 0.7 (+ 0.30 tolerance) 14 (+ 0.2 tolerance)
OSKS-16 0.7 (+ 0.30 tolerance) 16 (+ 0.4 tolerance)
