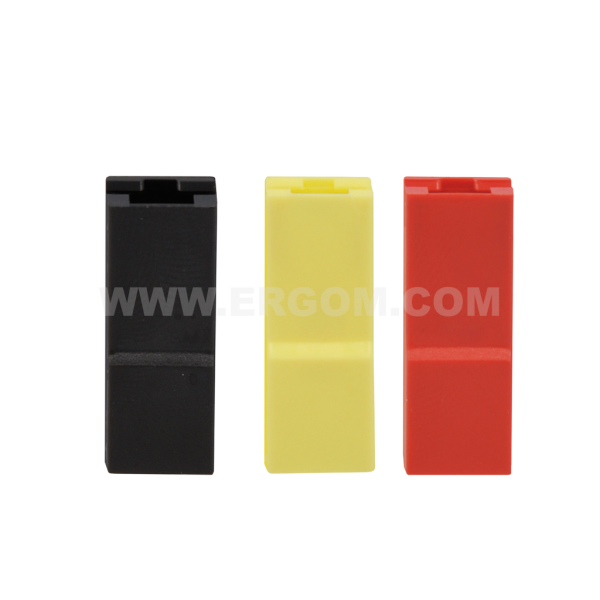

Insulating cover for straight female push-on connectors, ONZ…type

Insulating cover for straight female push-on connectors, ONZ…type

Main data of the product series

Product name
Insulating cover for straight female push-on connectors, ONZ…type
Category
Insulating covers
Operating temperature [°C]
-30 ÷ +70
Material
polyamide

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
ONZ 2,8/1 E10KN-01070200101 1 100 pkt. Price on request
ONZ 4,8/2,5 E10KN-01070200201 1 100 pkt. Price on request
ONZ 6,3/6 E10KN-01070200301 1 100 pkt. Price on request
ONZ 6,3/6 BK E10KN-01070200401 1 100 pkt. Price on request
ONZ 6,3/6 WT E10KN-01070200501 1 100 pkt. Price on request
ONZ 6,3/6 RD E10KN-01070200601 1 100 pkt. Price on request
ONZ 6,3/6 BL E10KN-01070200701 1 100 pkt. Price on request
ONZ 6,3/6 GR E10KN-01070200801 1 100 pkt. Price on request
ONZ 6,3/6 YL E10KN-01070200901 1 100 pkt. Price on request
ONZ 6,3/6 VL E10KN-01070201001 1 100 pkt. Price on request
ONZ 6,3/6 BR E10KN-01070201101 1 100 pkt. Price on request

Selected lines: 0

Technical data

General data

Material polyamide
Operating temperature [°C] -30 ÷ +70
Klasa palności UL 94 V2
Name Insulation colour Size Female connector type L1 L2 H1 H2 L Cross-section [mm²]
ONZ 2,8/1 natural 2,8 N; NR 5,2 4,9 4,5 4,0 20,0 0,5÷1
ONZ 4,8/2,5 natural 4,8 N; NR 8,0 7,8 6,1 5,3 19,8 0,5÷2,5
ONZ 6,3/6 natural 6,3 N; NR; NZ 9,6 9,1 6,3 4,9 25,2 0,5÷6
ONZ 6,3/6 BK black 6,3 N; NR; NZ 9,6 9,1 6,3 4,9 25,2 0,5÷6
ONZ 6,3/6 WT white 6,3 N; NR; NZ 9,6 9,1 6,3 4,9 25,2 0,5÷6
ONZ 6,3/6 RD red 6,3 N; NR; NZ 9,6 9,1 6,3 4,9 25,2 0,5÷6
ONZ 6,3/6 BL blue 6,3 N; NR; NZ 9,6 9,1 6,3 4,9 25,2 0,5÷6
ONZ 6,3/6 GR green 6,3 N; NR; NZ 9,6 9,1 6,3 4,9 25,2 0,5÷6
ONZ 6,3/6 YL yellow 6,3 N; NR; NZ 9,6 9,1 6,3 4,9 25,2 0,5÷6
ONZ 6,3/6 VL violet 6,3 N; NR; NZ 9,6 9,1 6,3 4,9 25,2 0,5÷6
ONZ 6,3/6 BR brown 6,3 N; NR; NZ 9,6 9,1 6,3 4,9 25,2 0,5÷6

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Oslona_izolacyjna_do_nasuwek_prostych_typu_ONZ_EN.pdf EN 04-07-2025 223.18 KB PDF Download
Catalog card ERGOM_Oslona_izolacyjna_do_nasuwek_prostych_typu_ONZ_PL.pdf PL 04-07-2025 233.86 KB PDF Download
