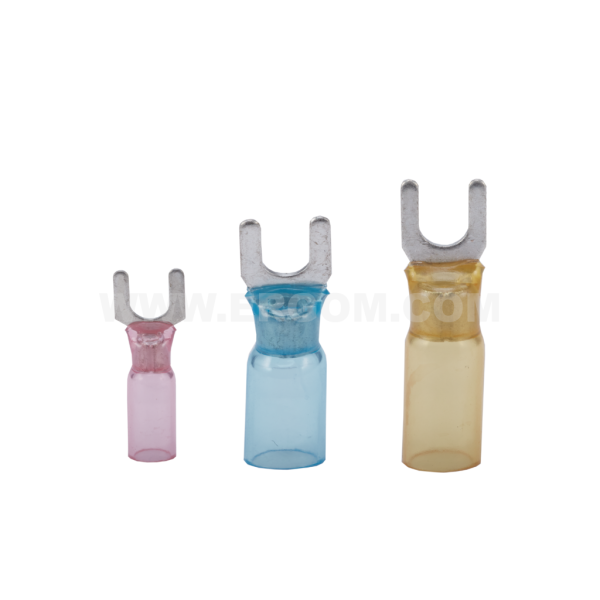

Insulated spade terminals in heat-shrink insulation, KWIT type

Insulated spade terminals in heat-shrink insulation, KWIT type

Main data of the product series

Product name
Insulated spade terminals in heat-shrink insulation, KWIT type
Category
Heat-shrink insulation
Surface
tin-plated
Material
Cu
Insulation
heat-shrink sleeve
Operating temperature [°C]
-55 ÷ +105
Note!
Other designs on request.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
KWIT 1/4 E09KO-02070300201 1 100 pkt. Price on request
KWIT 1/5 E09KO-02070300301 1 100 pkt. Price on request
KWIT 2,5/4 E09KO-02070300401 1 100 pkt. Price on request
KWIT 2,5/5 E09KO-02070300501 1 100 pkt. Price on request
KWIT 6/4 E09KO-02070300601 1 100 pkt. Price on request
KWIT 6/5 E09KO-02070300701 1 100 pkt. Price on request

Selected lines: 0

Technical data

General data

Insulation heat-shrink sleeve
Material Cu
Surface tin-plated
Operating temperature [°C] -55 ÷ +105
Shrink temperature [°C] > 120
Wykonanie copper part of terminals acc. to DIN 46234 sizes
Name Insulation colour Screw hole L d D e W Cross-section [mm²]
KWIT 1/4 red M4 30 1,6 4,8 18 8,1 0,5÷1
KWIT 1/5 red M5 30 1,6 4,8 18 9,5 0,5÷1
KWIT 2,5/4 blue M4 30 2,2 5,8 17 8,1 1,5÷2,5
KWIT 2,5/5 blue M5 30 2,2 5,8 17 9,5 1,5÷2,5
KWIT 6/4 yellow M4 34 3,4 6,8 20 8,4 4÷6
KWIT 6/5 yellow M5 34 3,4 6,8 20 9,1 4÷6

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Koncowki_widelkowe_w_izolacji_termokurczliwej_typu_KWIT_EN.pdf EN 04-07-2025 193.19 KB PDF Download
Catalog card ERGOM_Koncowki_widelkowe_w_izolacji_termokurczliwej_typu_KWIT_PL.pdf PL 04-07-2025 212.13 KB PDF Download
