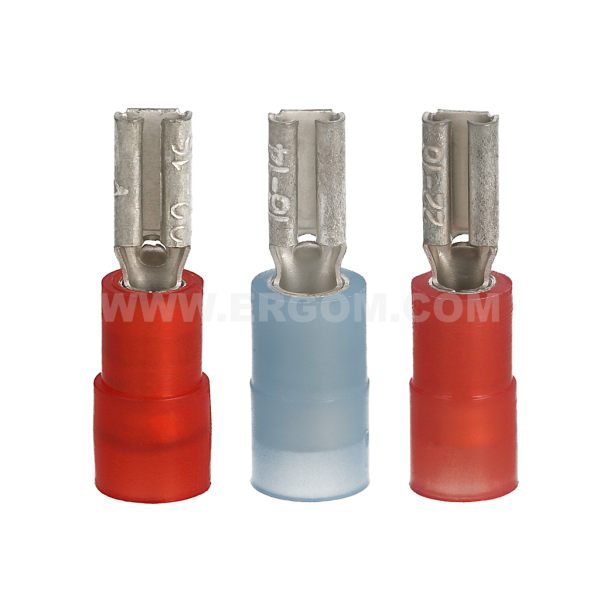

Insulated push-on female connectors, NI type

Main data of the product series

Product name: Insulated push-on female connectors, NI type
Category: For double crimping (with copper sleeve)
Operating temperature [°C]: -30 ÷ +95
Surface: tin-plated
Material: brass
Insulation: polyamide 6.6
Note!: Terminals with PC insulation available on request.

Features and benefits

Product description

-

Offer

Name	Ergom index / your designation	Min. order quantity [uom]	Qty in package	Unit of measure [uom]	Catalogue price net per uom	Quantity [uom]
NI 2,8-1/0,5	E10KN-03010100101	1	100	pkt.	Price on request
NI 2,8-1/0,8	E10KN-03010100201	1	100	pkt.	Price on request
NI 2,8-2,5/0,5	E10KN-03010100301	1	100	pkt.	Price on request
NI 2,8-2,5/0,8	E10KN-03010100401	1	100	pkt.	Price on request
NI 4,8-1/0,5	E10KN-03010100501	1	100	pkt.	Price on request
NI 4,8-1/0,8	E10KN-03010100601	1	100	pkt.	Price on request
NI 4,8-2,5/0,5	E10KN-03010100701	1	100	pkt.	Price on request
NI 4,8-2,5/0,8	E10KN-03010100801	1	100	pkt.	Price on request
NI 6,3-1/0,8	E10KN-03010100901	1	100	pkt.	Price on request
NI 6,3-2,5/0,8	E10KN-03010101001	1	100	pkt.	Price on request
NI 6,3-6/0,8	E10KN-03010101101	1	100	pkt.	Price on request
NI 9,5-6/1,2	E10KN-03010101201	1	100	pkt.	Price on request

Selected lines: 0

Technical data

General data

Insulation	polyamide 6.6
Material	brass
Surface	tin-plated
Operating temperature [°C]	-30 ÷ +95

Name	Insulation colour	Size	d	L₁	L₂	Cross-section [mm²]
NI 2,8-1/0,5	red	2,8x0,5	1,7	19,0	6,5	0,75÷1
NI 2,8-1/0,8	red	2,8x0,8	1,7	19,0	6,5	0,75÷1
NI 2,8-2,5/0,5	blue	4,8x0,5	2,3	19,0	6,5	1,5÷2,5
NI 2,8-2,5/0,8	blue	4,8x0,8	2,3	19,0	6,5	1,5÷2,5
NI 4,8-1/0,5	red	6,3x0,8	1,7	19,0	6,5	0,75÷1
NI 4,8-1/0,8	red	2,8x0,5	1,7	19,0	6,5	0,75÷1
NI 4,8-2,5/0,5	blue	2,8x0,8	2,3	19,0	6,5	1,5÷2,5
NI 4,8-2,5/0,8	blue	4,8x0,5	2,3	19,0	6,5	1,5÷2,5
NI 6,3-1/0,8	red	4,8x0,8	1,7	21,0	7,2	0,75÷1
NI 6,3-2,5/0,8	blue	6,3x0,8	2,3	21,0	7,2	1,5÷2,5
NI 6,3-6/0,8	yellow	6,3x0,8	3,4	24,0	7,2	4÷6
NI 9,5-6/1,2	yellow	9,5x1,2	3,3	28,5	12,0	4÷6

Guide

No data

Knowledge

No data

Downloads

Type	Name	Language	Updated at	Size	File type
Catalog card	ERGOM_Nasuwki_izolowane_NI_EN.pdf	EN	04-07-2025	265.1 KB	PDF	Download
Catalog card	ERGOM_Nasuwki_izolowane_NI_PL.pdf	PL	04-07-2025	287.63 KB	PDF	Download
