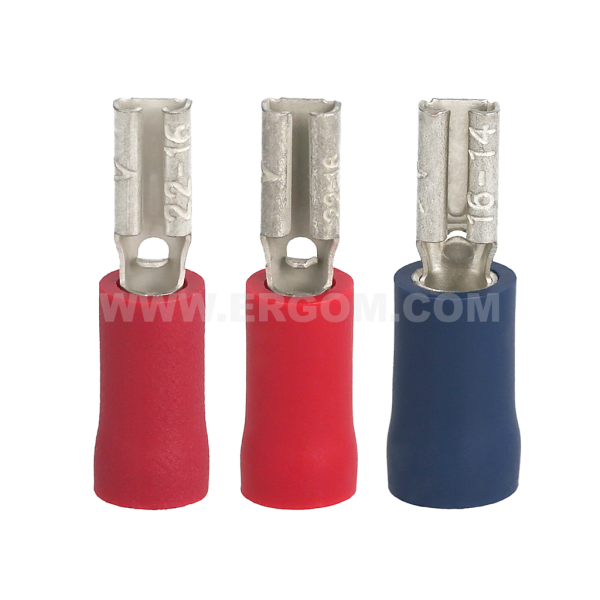

Insulated push-on female connectors, NI...PCV type

Main data of the product series

Product name: Insulated push-on female connectors, NI...PCV type
Category: For double crimping (with copper sleeve)
Operating temperature [°C]: -5 ÷ +60
Surface: tin-plated
Material: brass
Insulation: polyvinyl chloride (PVC)
Note!: Terminals with PC insulation available on request.

Features and benefits

Product description

-

Offer

Name	Ergom index / your designation	Min. order quantity [uom]	Qty in package	Unit of measure [uom]	Catalogue price net per uom	Quantity [uom]
NI 2,8-1/0,5 PCV	E10KN-03010102501	1	100	pkt.	Price on request
NI 2,8-1/0,8 PCV	E10KN-03010102601	1	100	pkt.	Price on request
NI 2,8-2,5/0,5 PCV	E10KN-03010102701	1	100	pkt.	Price on request
NI 2,8-2,5/0,8 PCV	E10KN-03010102801	1	100	pkt.	Price on request
NI 4,8-1/0,5 PCV	E10KN-03010102901	1	100	pkt.	Price on request
NI 4,8-1/0,8 PCV	E10KN-03010103001	1	100	pkt.	Price on request
NI 4,8-2,5/0,5 PCV	E10KN-03010103101	1	100	pkt.	Price on request
NI 4,8-2,5/0,8 PCV	E10KN-03010103201	1	100	pkt.	Price on request
NI 6,3-1/0,8 PCV	E10KN-03010103401	1	100	pkt.	Price on request
NI 6,3-2,5/0,8 PCV	E10KN-03010103501	1	100	pkt.	Price on request
NI 6,3-6/0,8 PCV	E10KN-03010103601	1	100	pkt.	Price on request
NI 9,5-6/1,2 PCV	E10KN-03010103701	1	100	pkt.	Price on request

Selected lines: 0

Technical data

General data

Insulation	polyvinyl chloride (PVC)
Material	brass
Surface	tin-plated
Operating temperature [°C]	-5 ÷ +60

Name	Insulation colour	Size	d	L₁	L₂	Cross-section [mm²]
NI 2,8-1/0,5 PCV	red	2,8x0,5	1,7	19,0	6,5	0,75÷1
NI 2,8-1/0,8 PCV	red	2,8x0,8	1,7	19,0	6,5	0,75÷1
NI 2,8-2,5/0,5 PCV	blue	2,8x0,5	2,3	19,0	6,5	1,5÷2,5
NI 2,8-2,5/0,8 PCV	blue	2,8x0,8	2,3	19,0	6,5	1,5÷2,5
NI 4,8-1/0,5 PCV	red	4,8x0,5	1,7	19,5	6,5	0,75÷1
NI 4,8-1/0,8 PCV	red	4,8x0,8	1,7	19,5	6,5	0,75÷1
NI 4,8-2,5/0,5 PCV	blue	4,8x0,5	2,3	19,5	6,5	1,5÷2,5
NI 4,8-2,5/0,8 PCV	blue	4,8x0,8	2,3	19,5	6,5	1,5÷2,5
NI 6,3-1/0,8 PCV	red	6,3x0,8	1,7	21,0	7,2	0,75÷1
NI 6,3-2,5/0,8 PCV	blue	6,3x0,8	2,3	21,0	7,2	1,5÷2,5
NI 6,3-6/0,8 PCV	yellow	6,3x0,8	3,4	23,5	7,2	4÷6
NI 9,5-6/1,2 PCV	yellow	9,5x1,2	3,3	28,5	12,0	4÷6
