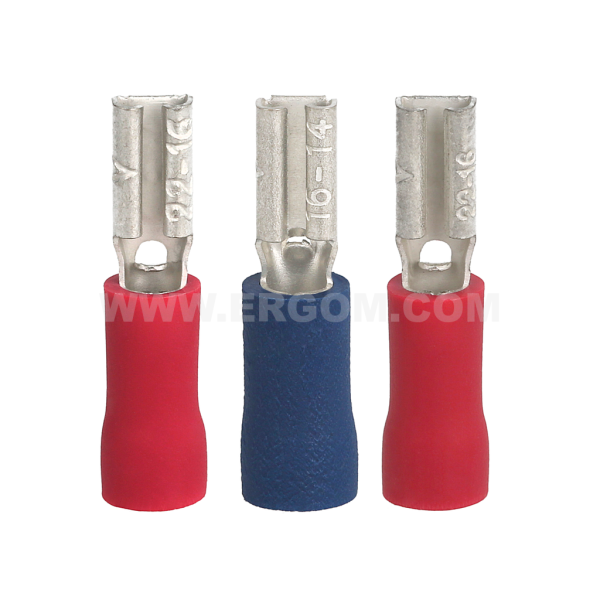

Insulated push-on female connectors, NI…BPCV type

Insulated push-on female connectors, NI…BPCV type

Main data of the product series

Product name
Insulated push-on female connectors, NI…BPCV type
Category
For single crimping
Operating temperature [°C]
-5 ÷ +60
Surface
tin-plated
Material
brass
Insulation
polyvinyl chloride (PVC)
Note!
Terminals with PA and PC insulation available on request.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
NI 2,8-1/0,5 BPCV E10KN-03010200101 1 100 pkt. Price on request
NI 2,8-1/0,8 BPCV E10KN-03010200201 1 100 pkt. Price on request
NI 2,8-2,5/0,5 BPCV E10KN-03010200301 1 100 pkt. Price on request
NI 2,8-2,5/0,8 BPCV E10KN-03010200401 1 100 pkt. Price on request
NI 4,8-1/0,5 BPCV E10KN-03010200501 1 100 pkt. Price on request
NI 4,8-1/0,8 BPCV E10KN-03010200601 1 100 pkt. Price on request
NI 4,8-2,5/0,5 BPCV E10KN-03010200701 1 100 pkt. Price on request
NI 4,8-2,5/0,8 BPCV E10KN-03010200801 1 100 pkt. Price on request
NI 6,3-1/0,8 BPCV E10KN-03010200901 1 100 pkt. Price on request
NI 6,3-2,5/0,8 BPCV E10KN-03010201001 1 100 pkt. Price on request
NI 6,3-6/0,8 BPCV E10KN-03010201101 1 100 pkt. Price on request
NI 9,5-6/1,2 BPCV E10KN-03010201201 1 100 pkt. Price on request

Selected lines: 0

Technical data

General data

Insulation polyvinyl chloride (PVC)
Material brass
Surface tin-plated
Operating temperature [°C] -5 ÷ +60
Name Insulation colour Size d L1 L2 Cross-section [mm²]
NI 2,8-1/0,5 BPCV red 2,8x0,5 1,7 18,5 6,5 0,75÷1
NI 2,8-1/0,8 BPCV red 2,8x0,8 1,7 18,5 6,5 0,75÷1
NI 2,8-2,5/0,5 BPCV blue 2,8x0,5 2,3 18,5 6,5 1,5÷2,5
NI 2,8-2,5/0,8 BPCV blue 2,8x0,8 2,3 18,5 6,5 1,5÷2,5
NI 4,8-1/0,5 BPCV red 4,8x0,5 1,7 19,0 6,5 0,75÷1
NI 4,8-1/0,8 BPCV red 4,8x0,8 1,7 19,0 6,5 0,75÷1
NI 4,8-2,5/0,5 BPCV blue 4,8x0,5 2,3 19,0 6,5 1,5÷2,5
NI 4,8-2,5/0,8 BPCV blue 4,8x0,8 2,3 19,0 6,5 1,5÷2,5
NI 6,3-1/0,8 BPCV red 6,3x0,8 1,7 20,5 7,2 0,75÷1
NI 6,3-2,5/0,8 BPCV blue 6,3x0,8 2,3 20,5 7,2 1,5÷2,5
NI 6,3-6/0,8 BPCV yellow 6,3x0,8 3,4 23,5 7,2 4÷6
NI 9,5-6/1,2 BPCV yellow 9,5x1,2 3,3 28,5 12,0 4÷6

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Nasuwki_izolowane_typu_NI_…_B_PCV_EN.pdf EN 04-07-2025 234.8 KB PDF Download
Catalog card ERGOM_Nasuwki_izolowane_typu_NI_…_B_PCV_PL.pdf PL 04-07-2025 255.22 KB PDF Download
