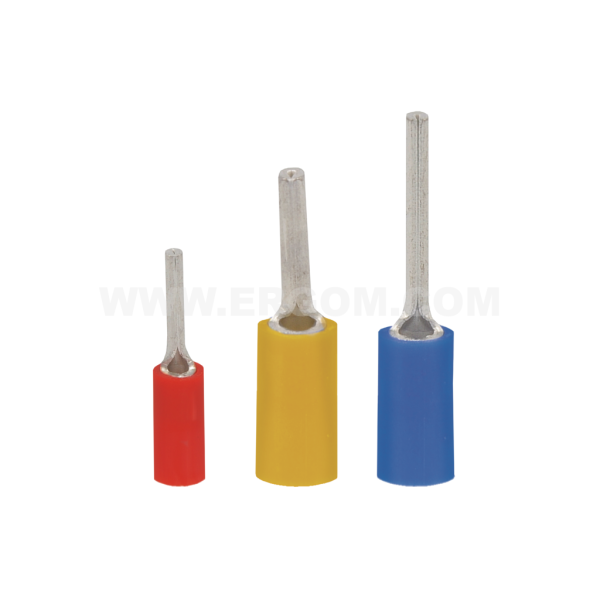

Insulated pin terminals, KII...PCV type

Insulated pin terminals, KII...PCV type

Main data of the product series

Product name
Insulated pin terminals, KII...PCV type
Category
PCV insulation
Operating temperature [°C]
-5 ÷ +60
Surface
tin-plated
Material
Cu
Insulation
polyvinyl chloride (PVC)

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
KII 0,5-8 PCV E09KO-02040300101 1 100 pkt. Price on request
KII 1-10 PCV E09KO-02040300200 10 100 pkt. Price on request
KII 1-12 PCV E09KO-02040300300 10 100 pkt. Price on request
KII 2,5-10 PCV E09KO-02040300500 10 100 pkt. Price on request
KII 2,5-12 PCV E09KO-02040300600 10 100 pkt. Price on request
KII 2,5-16 PCV E09KO-02040300800 10 100 pkt. Price on request

Selected lines: 0

Technical data

General data

Insulation polyvinyl chloride (PVC)
Material Cu
Surface tin-plated
Operating temperature [°C] -5 ÷ +60
DIN √
Wykonanie DIN 46231 – concerns only the tubular part
Name Insulation colour d L1 L2 a D2 Cross-section [mm²]
KII 0,5-8 PCV yellow 1,0 18 10 – 1,4 0,2÷0,5
KII 1-10 PCV red 1,6 20 10 4,8 1,9 0,5÷1,0
KII 1-12 PCV red 1,6 22 12 4,8 1,9 0,5÷1,0
KII 2,5-10 PCV blue 2,3 20 10 4,8 1,9 1,5÷2,5
KII 2,5-12 PCV blue 2,3 22 12 4,8 1,9 1,5÷2,5
KII 2,5-16 PCV blue 2,3 26 16 4,8 1,9 1,5÷2,5
